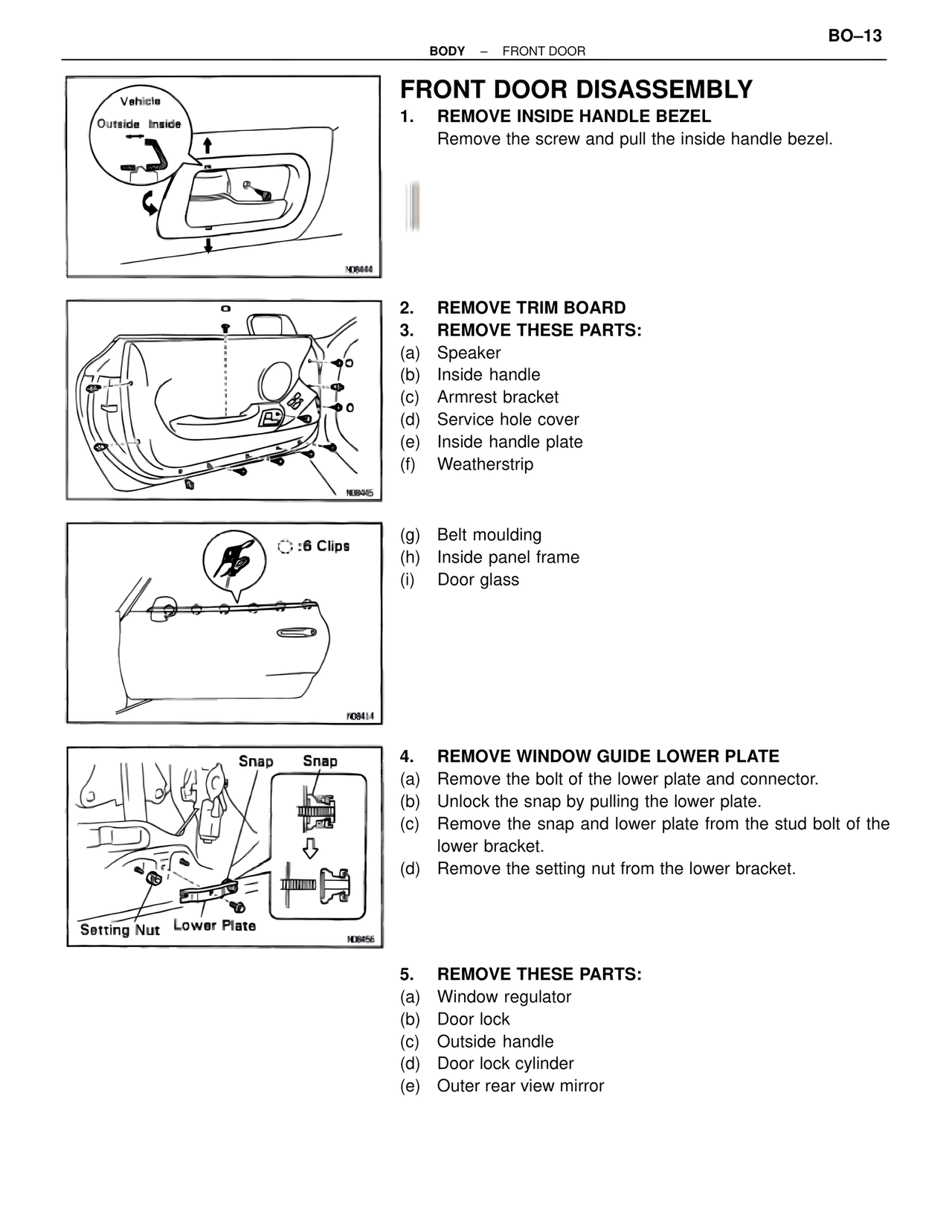

BODY – FRONT DOOR BO–13 FRONT DOOR DISASSEMBLY 1. REMOVE INSIDE HANDLE BEZEL Remove the screw and pull the inside handle bezel. Vehicle Outside Inside N06444 2. REMOVE TRIM BOARD 3. REMOVE THESE PARTS: (a) Speaker (b) Inside handle (c) Armrest bracket (d) Service hole cover (e) Inside handle plate (f) Weatherstrip N06445 (g) Belt moulding (h) Inside panel frame (i) Door glass ○ :6 Clips N06414 4. REMOVE WINDOW GUIDE LOWER PLATE (a) Remove the bolt of the lower plate and connector. (b) Unlock the snap by pulling the lower plate. (c) Remove the snap and lower plate from the stud bolt of the lower bracket. (d) Remove the setting nut from the lower bracket. Snap Snap Setting Nut Lower Plate N06456 5. REMOVE THESE PARTS: (a) Window regulator (b) Door lock (c) Outside handle (d) Door lock cylinder (e) Outer rear view mirror
