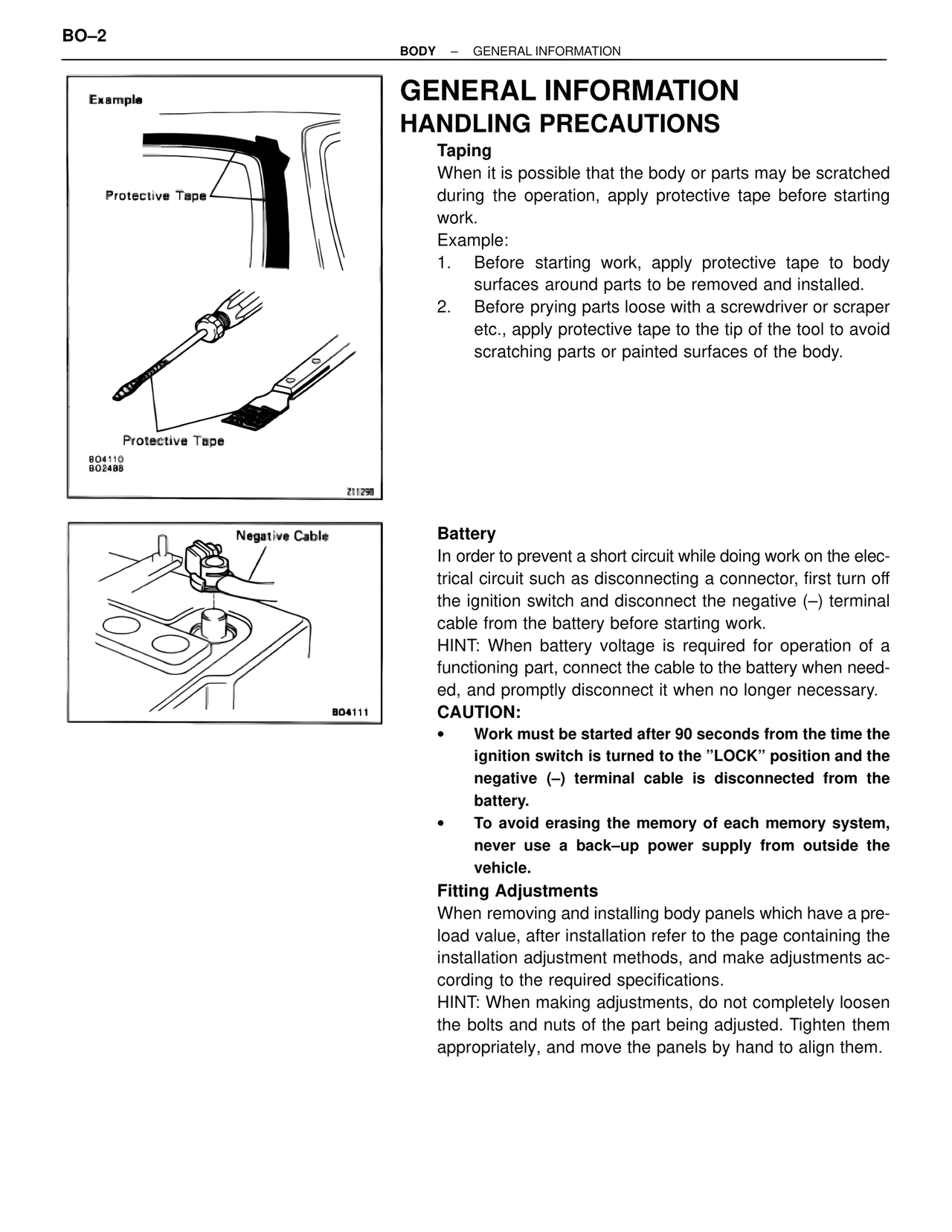

BO–2
BODY – GENERAL INFORMATION
Example
Protective Tape
Protective Tape
BO4110
BO2488
Z11298
Negative Cable
BO4111
GENERAL INFORMATION
HANDLING PRECAUTIONS
Taping
When it is possible that the body or parts may be scratched during the operation, apply protective tape before starting work.
Example:
1. Before starting work, apply protective tape to body surfaces around parts to be removed and installed.
2. Before prying parts loose with a screwdriver or scraper etc., apply protective tape to the tip of the tool to avoid scratching parts or painted surfaces of the body.
Battery
In order to prevent a short circuit while doing work on the electrical circuit such as disconnecting a connector, first turn off the ignition switch and disconnect the negative (–) terminal cable from the battery before starting work.
HINT: When battery voltage is required for operation of a functioning part, connect the cable to the battery when needed, and promptly disconnect it when no longer necessary.
CAUTION:
• Work must be started after 90 seconds from the time the ignition switch is turned to the "LOCK" position and the negative (–) terminal cable is disconnected from the battery.
• To avoid erasing the memory of each memory system, never use a back–up power supply from outside the vehicle.
Fitting Adjustments
When removing and installing body panels which have a preload value, after installation refer to the page containing the installation adjustment methods, and make adjustments according to the required specifications.
HINT: When making adjustments, do not completely loosen the bolts and nuts of the part being adjusted. Tighten them appropriately, and move the panels by hand to align them.
