BODY – GENERAL INFORMATION
BO–3

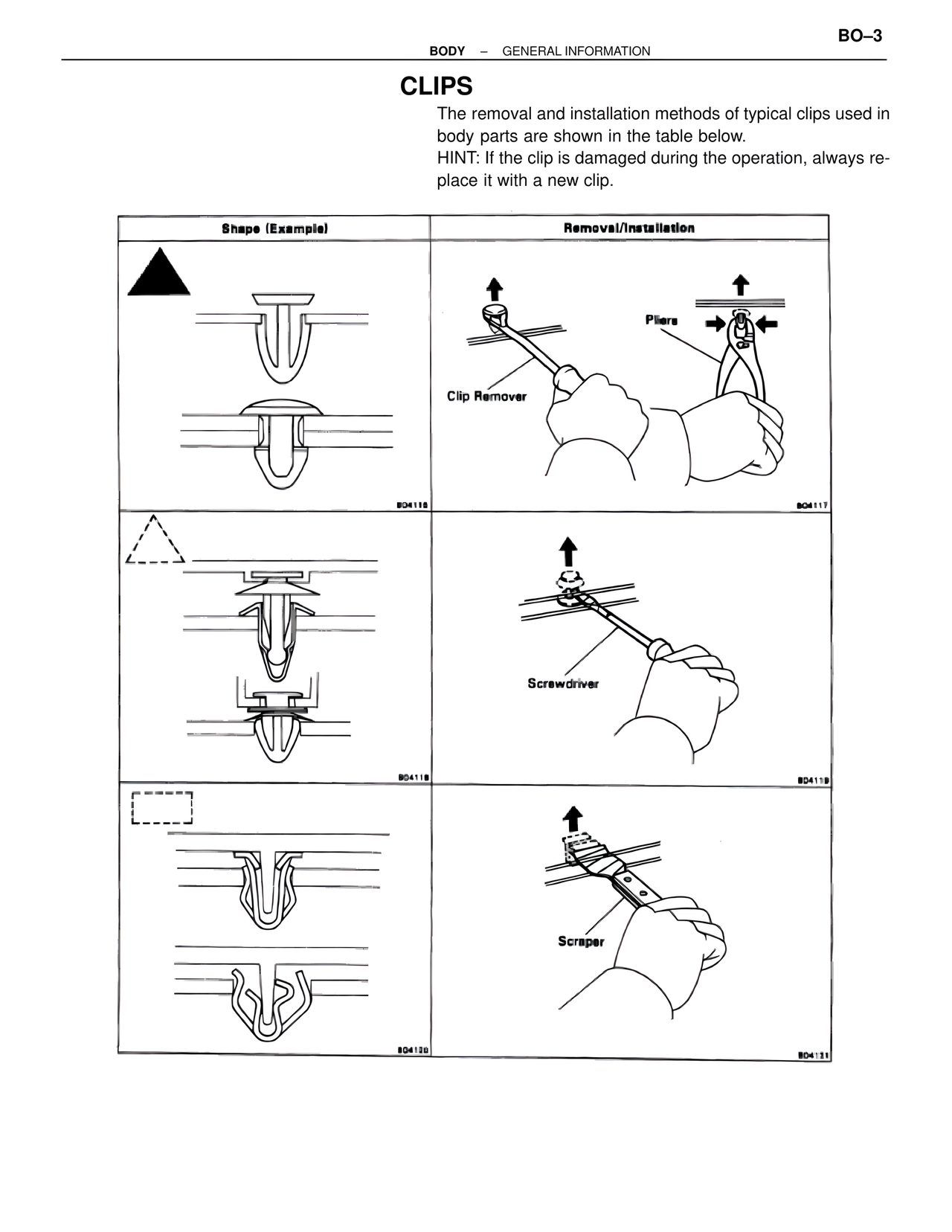

CLIPS
The removal and installation methods of typical clips used in body parts are shown in the table below.
HINT: If the clip is damaged during the operation, always replace it with a new clip.
Shape (Example) Removal/Installation
BO4118
Clip Remover
Pliers
BO4117
BO4118
Screwdriver
BO4119
BO4120
Scraper
BO4121
