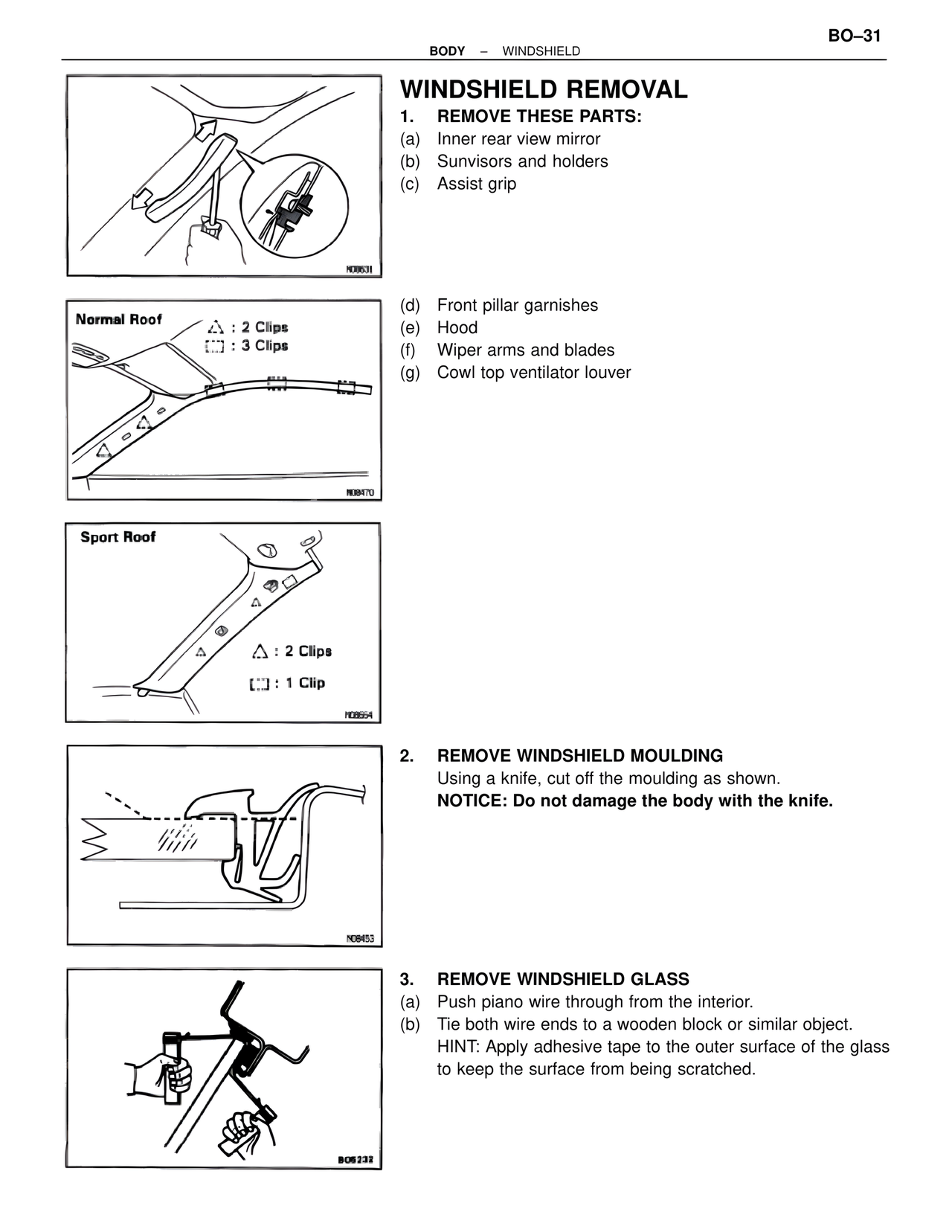

BODY – WINDSHIELD BO–31 WINDSHIELD REMOVAL 1. REMOVE THESE PARTS: (a) Inner rear view mirror (b) Sunvisors and holders (c) Assist grip N08631 Normal Roof △ : 2 Clips [..] : 3 Clips N09470 Sport Roof △ : 2 Clips [..] : 1 Clip N09554 (d) Front pillar garnishes (e) Hood (f) Wiper arms and blades (g) Cowl top ventilator louver 2. REMOVE WINDSHIELD MOULDING Using a knife, cut off the moulding as shown. NOTICE: Do not damage the body with the knife. N08453 3. REMOVE WINDSHIELD GLASS (a) Push piano wire through from the interior. (b) Tie both wire ends to a wooden block or similar object. HINT: Apply adhesive tape to the outer surface of the glass to keep the surface from being scratched. BO5232
