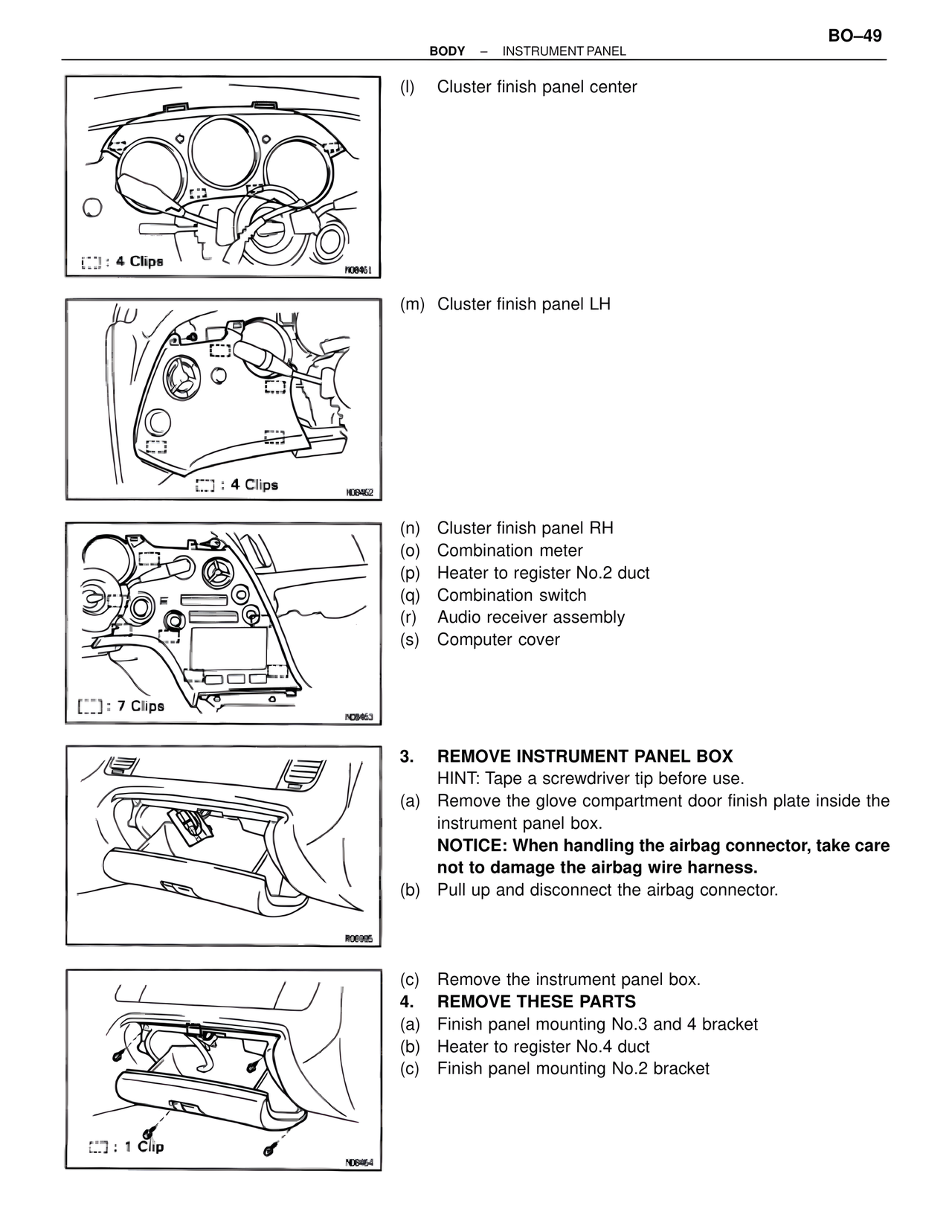

(l) Cluster finish panel center
[ ] : 4 Clips
N08461
(m) Cluster finish panel LH
[ ] : 4 Clips
N08462
(n) Cluster finish panel RH
(o) Combination meter
(p) Heater to register No.2 duct
(q) Combination switch
(r) Audio receiver assembly
(s) Computer cover
[ ] : 7 Clips
N08463
3. REMOVE INSTRUMENT PANEL BOX
HINT: Tape a screwdriver tip before use.
(a) Remove the glove compartment door finish plate inside the
instrument panel box.
NOTICE: When handling the airbag connector, take care
not to damage the airbag wire harness.
(b) Pull up and disconnect the airbag connector.
R06995
(c) Remove the instrument panel box.
4. REMOVE THESE PARTS
(a) Finish panel mounting No.3 and 4 bracket
(b) Heater to register No.4 duct
(c) Finish panel mounting No.2 bracket
[ ] : 1 Clip
N08464
