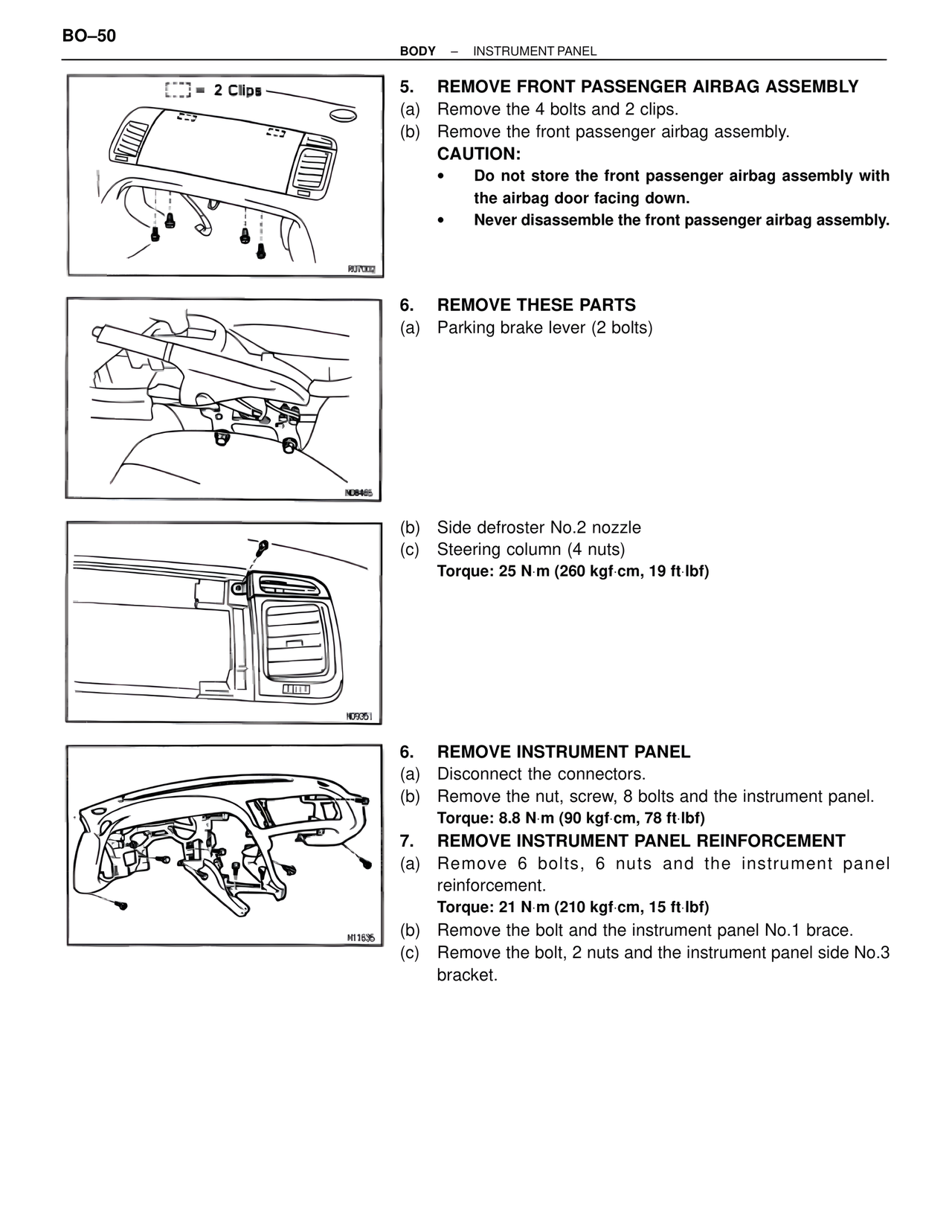

BO–50 BODY – INSTRUMENT PANEL = 2 Clips 5. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (a) Remove the 4 bolts and 2 clips. (b) Remove the front passenger airbag assembly. CAUTION: • Do not store the front passenger airbag assembly with the airbag door facing down. • Never disassemble the front passenger airbag assembly. R07002 6. REMOVE THESE PARTS (a) Parking brake lever (2 bolts) ND8485 (b) Side defroster No.2 nozzle (c) Steering column (4 nuts) Torque: 25 N·m (260 kgf·cm, 19 ft·lbf) N09351 6. REMOVE INSTRUMENT PANEL (a) Disconnect the connectors. (b) Remove the nut, screw, 8 bolts and the instrument panel. Torque: 8.8 N·m (90 kgf·cm, 78 ft·lbf) 7. REMOVE INSTRUMENT PANEL REINFORCEMENT (a) Remove 6 bolts, 6 nuts and the instrument panel reinforcement. Torque: 21 N·m (210 kgf·cm, 15 ft·lbf) (b) Remove the bolt and the instrument panel No.1 brace. (c) Remove the bolt, 2 nuts and the instrument panel side No.3 bracket. N11635
