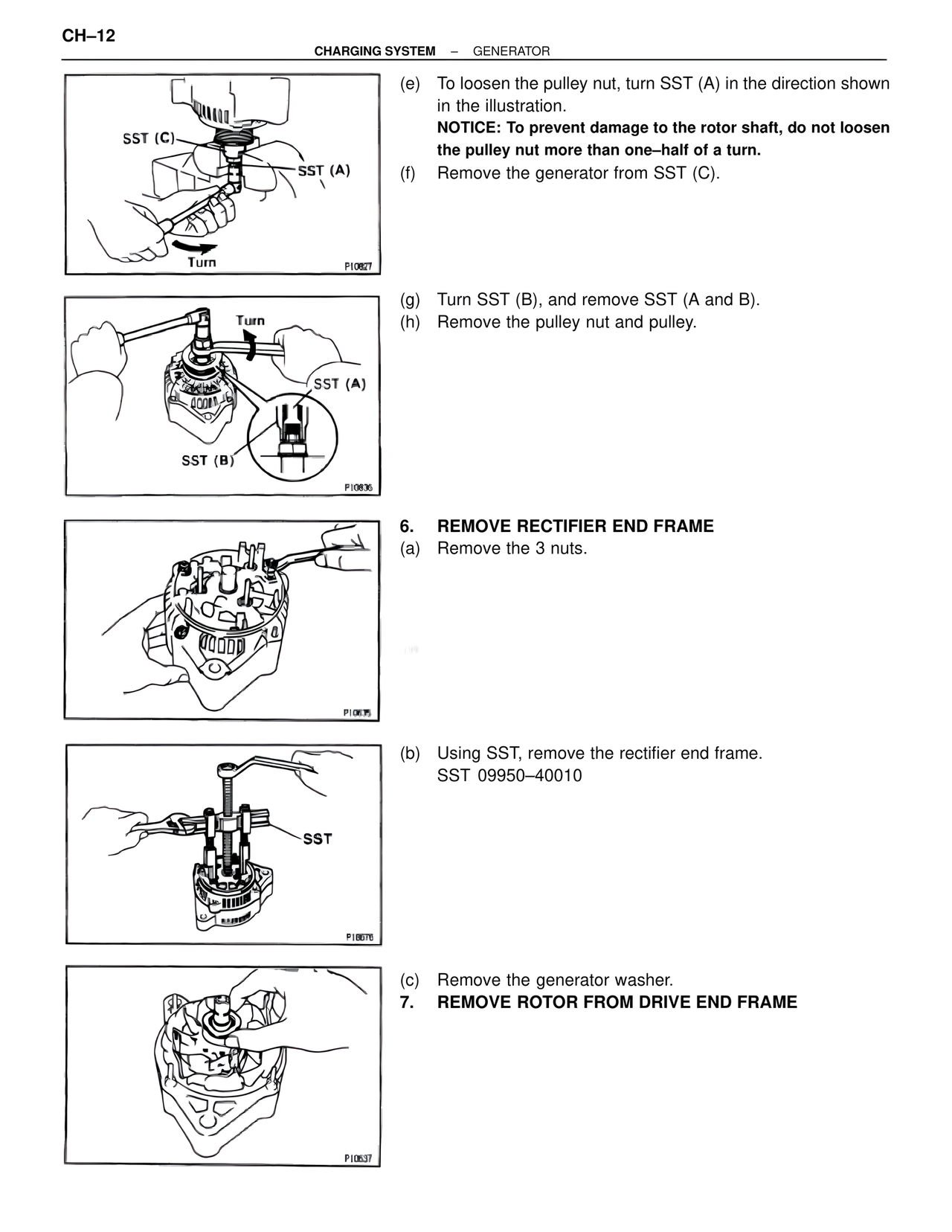

CH–12
CHARGING SYSTEM – GENERATOR
(e) To loosen the pulley nut, turn SST (A) in the direction shown
in the illustration.
NOTICE: To prevent damage to the rotor shaft, do not loosen
the pulley nut more than one–half of a turn.
(f) Remove the generator from SST (C).
SST (C)
SST (A)
Turn
P10827
(g) Turn SST (B), and remove SST (A and B).
(h) Remove the pulley nut and pulley.
Turn
SST (A)
SST (B)
P10836
6. REMOVE RECTIFIER END FRAME
(a) Remove the 3 nuts.
P10675
(b) Using SST, remove the rectifier end frame.
SST 09950–40010
SST
P16676
(c) Remove the generator washer.
7. REMOVE ROTOR FROM DRIVE END FRAME
P10637
