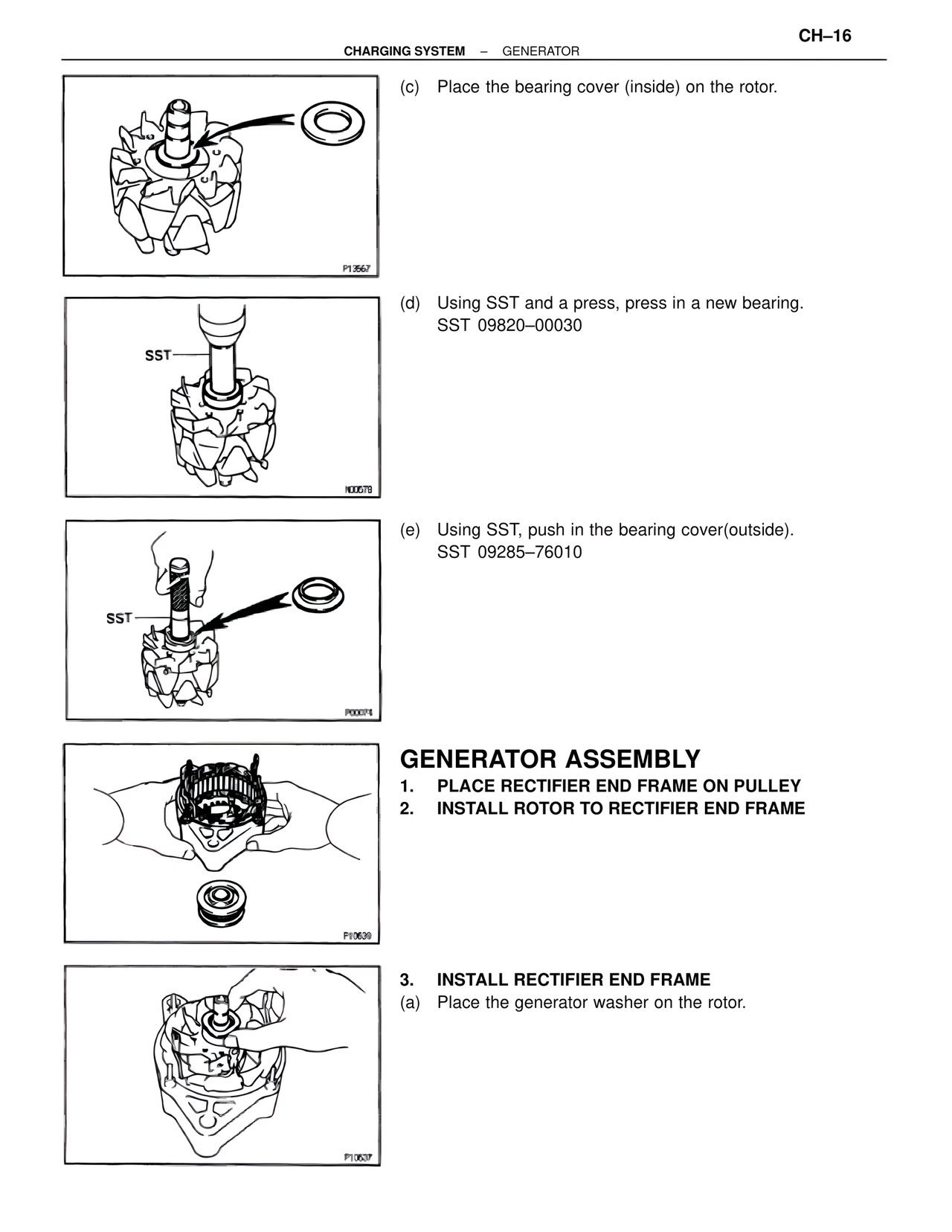

(c) Place the bearing cover (inside) on the rotor. (d) Using SST and a press, press in a new bearing. SST 09820–00030 SST (e) Using SST, push in the bearing cover(outside). SST 09285–76010 SST GENERATOR ASSEMBLY 1. PLACE RECTIFIER END FRAME ON PULLEY 2. INSTALL ROTOR TO RECTIFIER END FRAME 3. INSTALL RECTIFIER END FRAME (a) Place the generator washer on the rotor.
