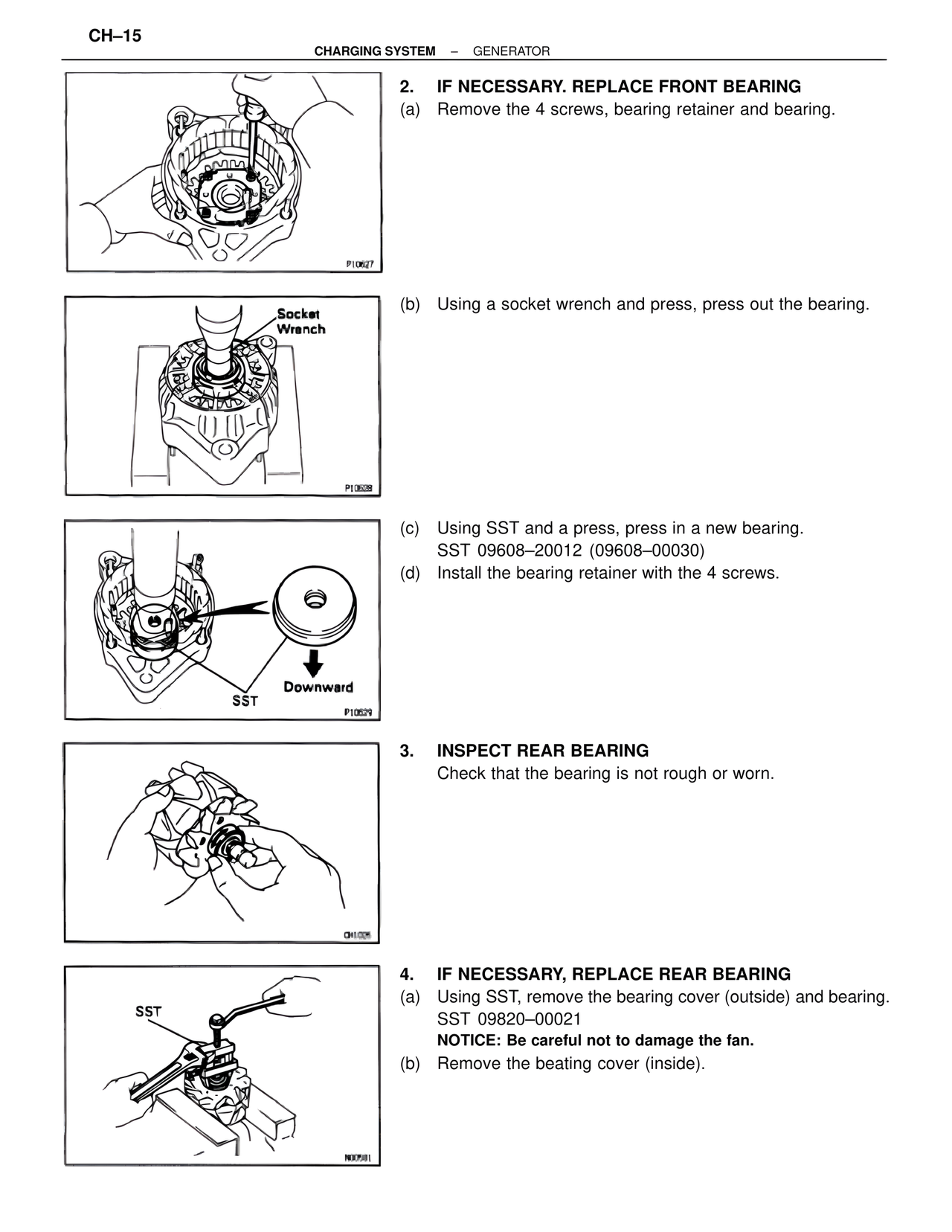

CH–15
CHARGING SYSTEM – GENERATOR
2. IF NECESSARY. REPLACE FRONT BEARING
(a) Remove the 4 screws, bearing retainer and bearing.
(b) Using a socket wrench and press, press out the bearing.
Socket
Wrench
(c) Using SST and a press, press in a new bearing.
SST 09608–20012 (09608–00030)
(d) Install the bearing retainer with the 4 screws.
SST
Downward
3. INSPECT REAR BEARING
Check that the bearing is not rough or worn.
4. IF NECESSARY, REPLACE REAR BEARING
(a) Using SST, remove the bearing cover (outside) and bearing.
SST 09820–00021
NOTICE: Be careful not to damage the fan.
(b) Remove the beating cover (inside).
SST
