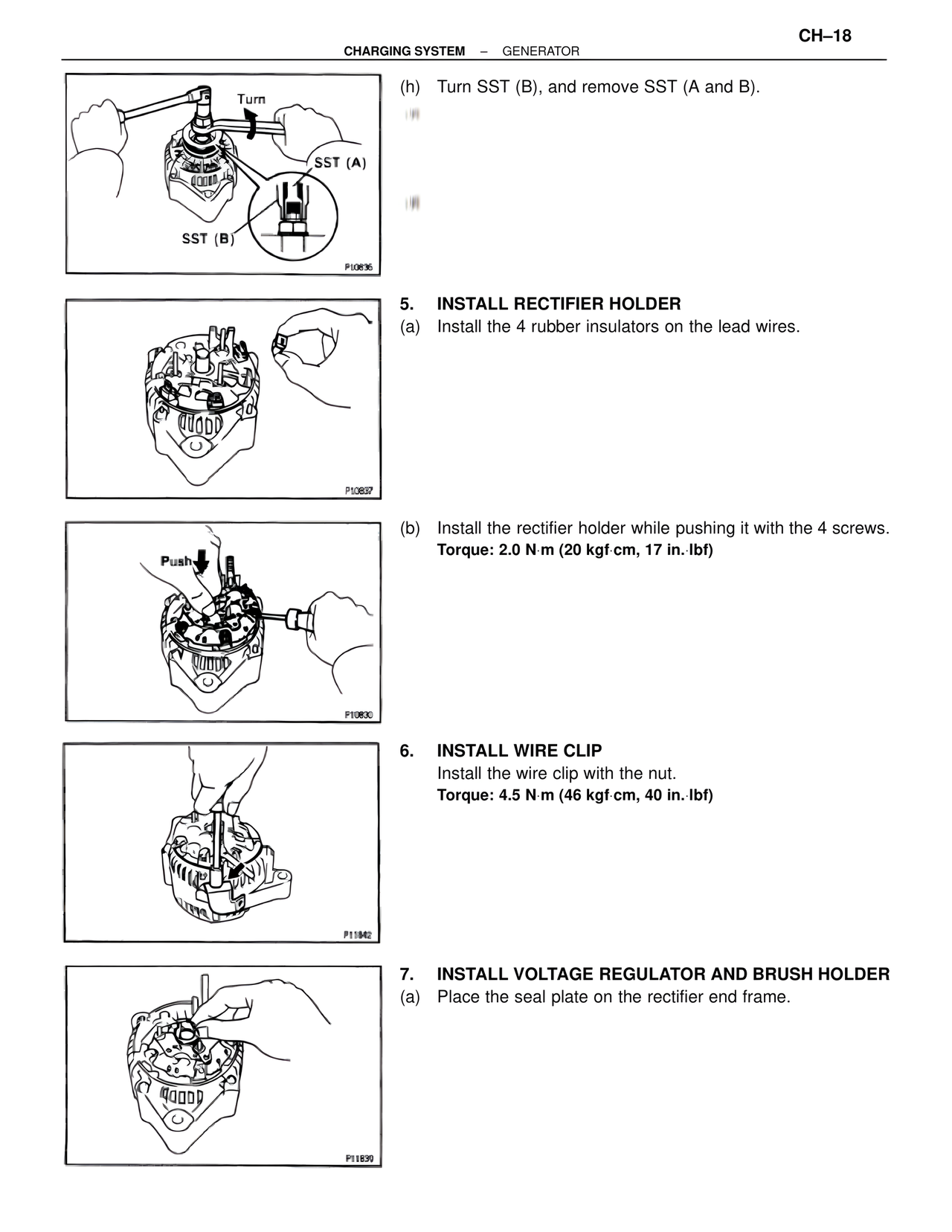

CH–18
CHARGING SYSTEM – GENERATOR
Turn
SST (A)
SST (B)
P10836
(h) Turn SST (B), and remove SST (A and B).
P10837
5. INSTALL RECTIFIER HOLDER
(a) Install the 4 rubber insulators on the lead wires.
Push
P10830
(b) Install the rectifier holder while pushing it with the 4 screws.
Torque: 2.0 N·m (20 kgf·cm, 17 in.·lbf)
P11842
6. INSTALL WIRE CLIP
Install the wire clip with the nut.
Torque: 4.5 N·m (46 kgf·cm, 40 in.·lbf)
P11839
7. INSTALL VOLTAGE REGULATOR AND BRUSH HOLDER
(a) Place the seal plate on the rectifier end frame.
