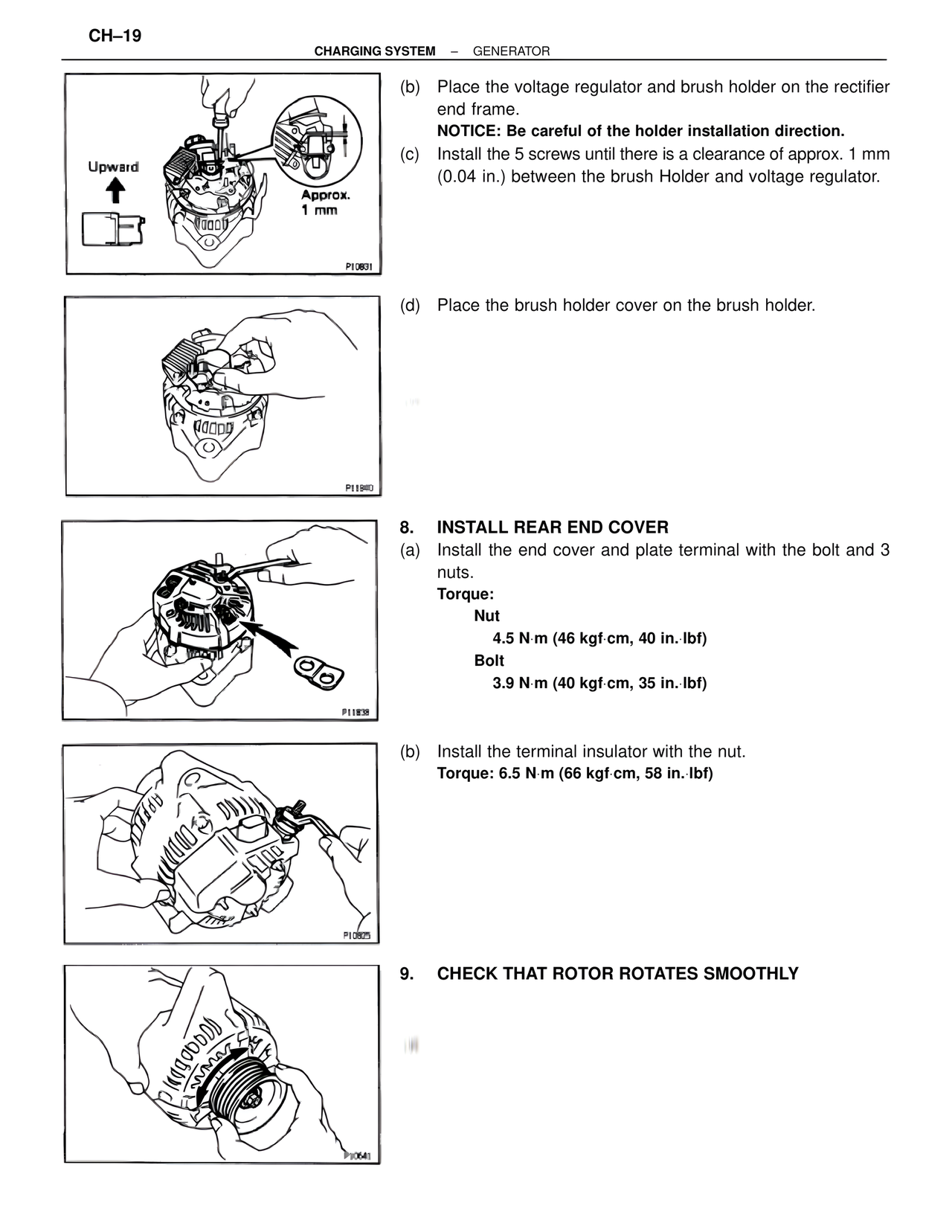

CH–19
CHARGING SYSTEM – GENERATOR
Upward
Approx.
1 mm
P10831
(b) Place the voltage regulator and brush holder on the rectifier end frame.
NOTICE: Be careful of the holder installation direction.
(c) Install the 5 screws until there is a clearance of approx. 1 mm (0.04 in.) between the brush Holder and voltage regulator.
P11940
(d) Place the brush holder cover on the brush holder.
P11839
8. INSTALL REAR END COVER
(a) Install the end cover and plate terminal with the bolt and 3 nuts.
Torque:
Nut
4.5 N·m (46 kgf·cm, 40 in.·lbf)
Bolt
3.9 N·m (40 kgf·cm, 35 in.·lbf)
P10825
(b) Install the terminal insulator with the nut.
Torque: 6.5 N·m (66 kgf·cm, 58 in.·lbf)
P10641
9. CHECK THAT ROTOR ROTATES SMOOTHLY
