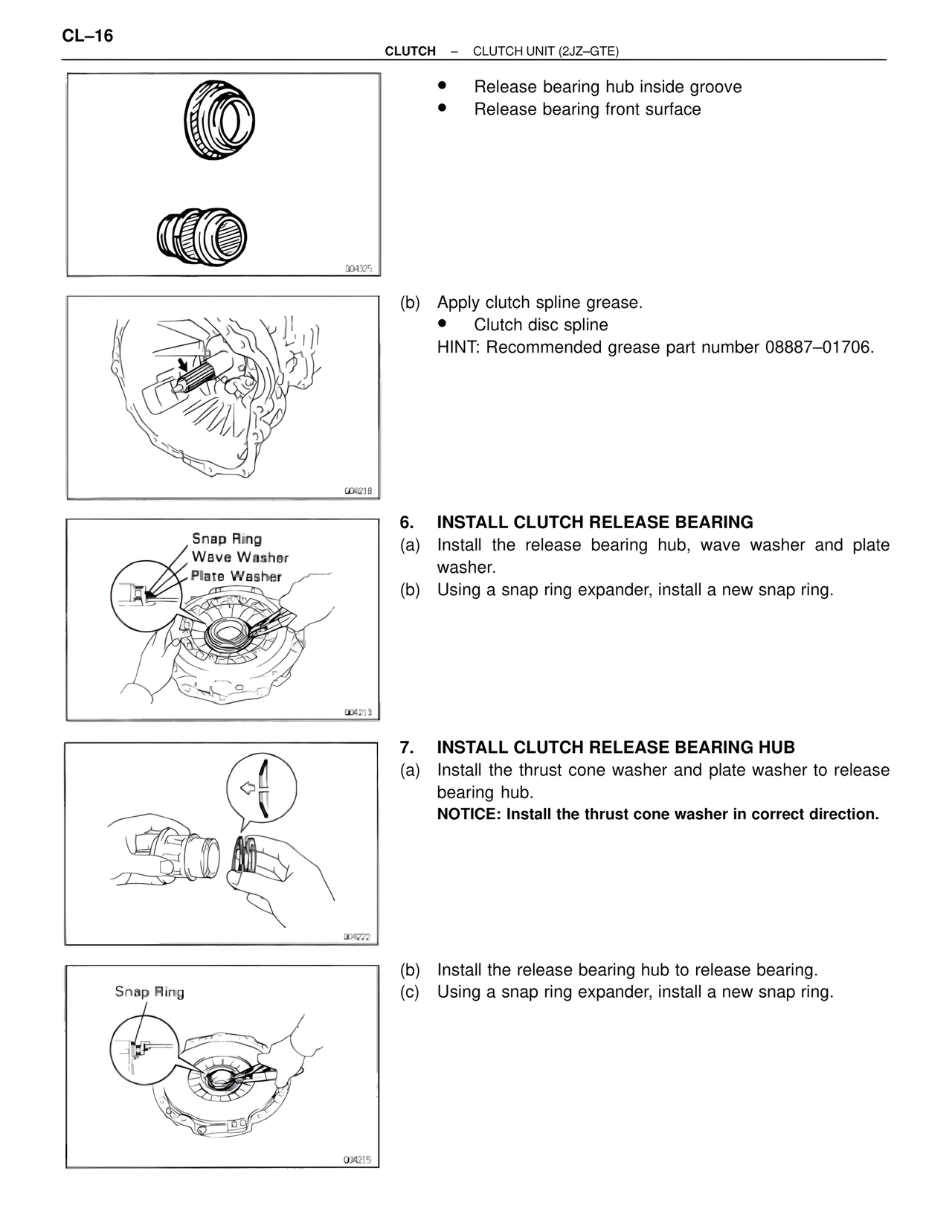

CL–16
CLUTCH – CLUTCH UNIT (2JZ–GTE)
• Release bearing hub inside groove
• Release bearing front surface
004305
(b) Apply clutch spline grease.
• Clutch disc spline
HINT: Recommended grease part number 08887–01706.
004218
Snap Ring
Wave Washer
Plate Washer
6. INSTALL CLUTCH RELEASE BEARING
(a) Install the release bearing hub, wave washer and plate washer.
(b) Using a snap ring expander, install a new snap ring.
004213
7. INSTALL CLUTCH RELEASE BEARING HUB
(a) Install the thrust cone washer and plate washer to release bearing hub.
NOTICE: Install the thrust cone washer in correct direction.
004222
Snap Ring
(b) Install the release bearing hub to release bearing.
(c) Using a snap ring expander, install a new snap ring.
004215
