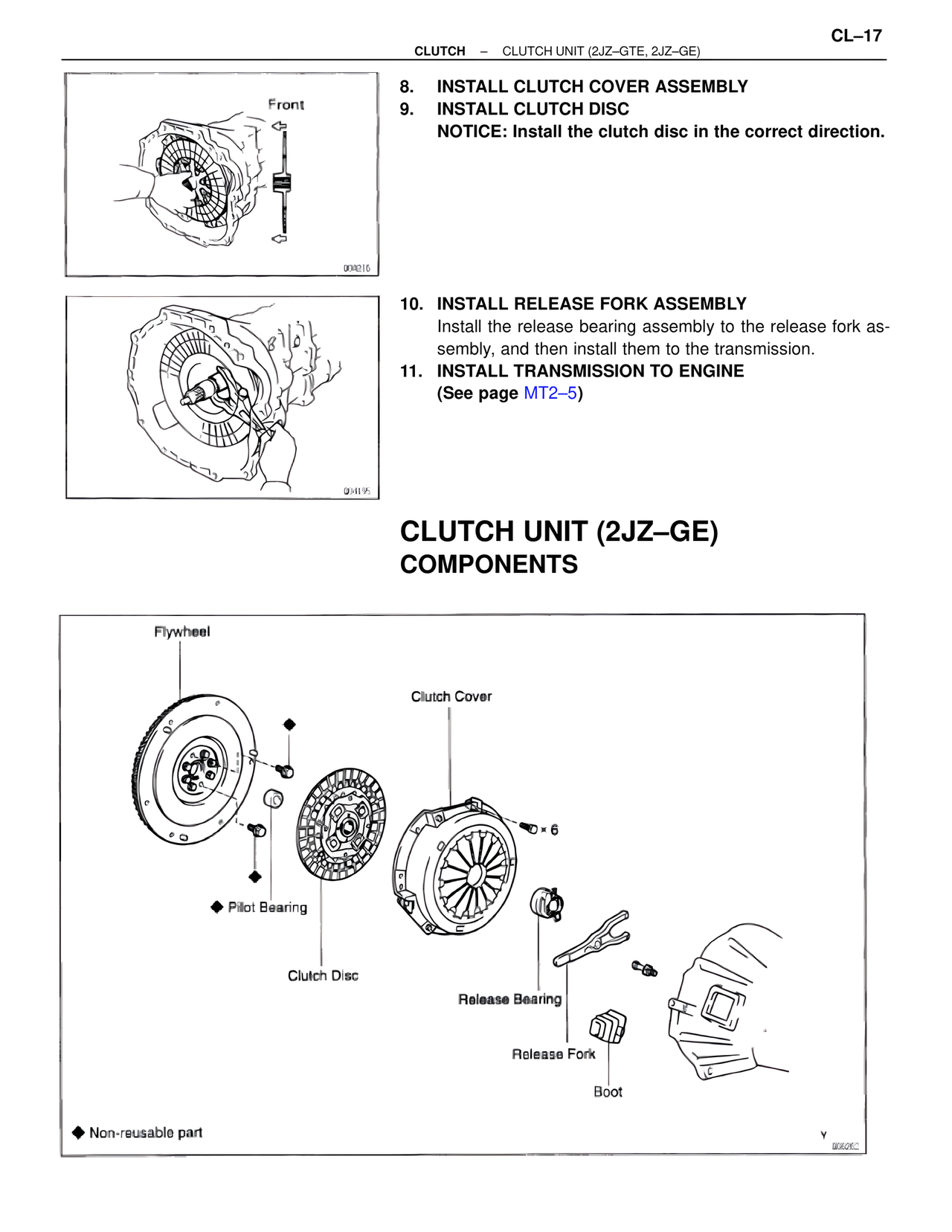

CL–17
CLUTCH – CLUTCH UNIT (2JZ–GTE, 2JZ–GE)
Front
004216
8. INSTALL CLUTCH COVER ASSEMBLY
9. INSTALL CLUTCH DISC
NOTICE: Install the clutch disc in the correct direction.
004195
10. INSTALL RELEASE FORK ASSEMBLY
Install the release bearing assembly to the release fork assembly, and then install them to the transmission.
11. INSTALL TRANSMISSION TO ENGINE
(See page MT2–5)
CLUTCH UNIT (2JZ–GE)
COMPONENTS
Flywheel
Clutch Cover
♦ x 6
♦ Pilot Bearing
Clutch Disc
Release Bearing
Release Fork
Boot
♦ Non-reusable part
006262
