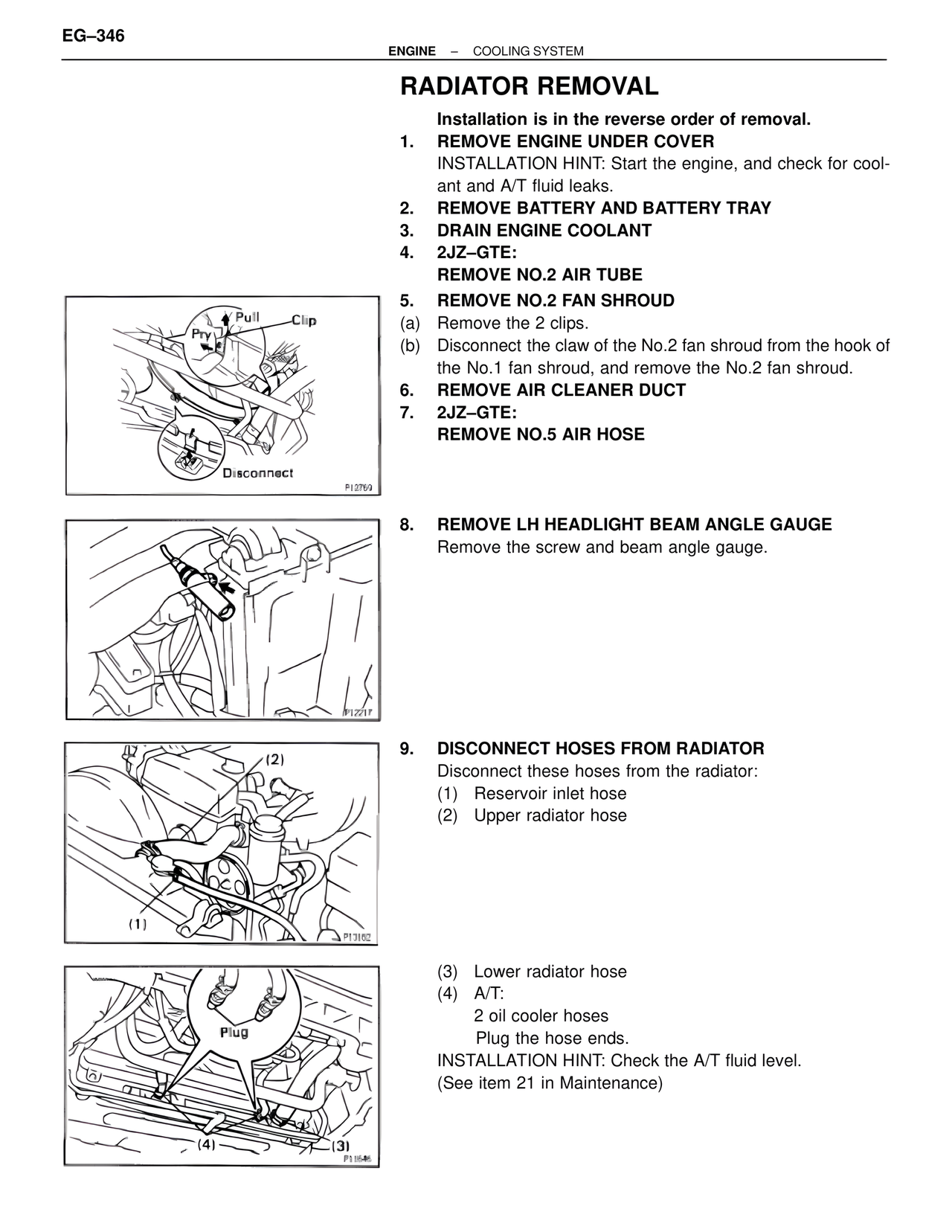

EG–346 ENGINE – COOLING SYSTEM RADIATOR REMOVAL Installation is in the reverse order of removal. 1. REMOVE ENGINE UNDER COVER INSTALLATION HINT: Start the engine, and check for coolant and A/T fluid leaks. 2. REMOVE BATTERY AND BATTERY TRAY 3. DRAIN ENGINE COOLANT 4. 2JZ–GTE: REMOVE NO.2 AIR TUBE 5. REMOVE NO.2 FAN SHROUD (a) Remove the 2 clips. (b) Disconnect the claw of the No.2 fan shroud from the hook of the No.1 fan shroud, and remove the No.2 fan shroud. 6. REMOVE AIR CLEANER DUCT 7. 2JZ–GTE: REMOVE NO.5 AIR HOSE Pull Clip Pry Disconnect P12769 8. REMOVE LH HEADLIGHT BEAM ANGLE GAUGE Remove the screw and beam angle gauge. P12217 9. DISCONNECT HOSES FROM RADIATOR Disconnect these hoses from the radiator: (1) Reservoir inlet hose (2) Upper radiator hose (2) (1) P13162 (3) Lower radiator hose (4) A/T: 2 oil cooler hoses Plug the hose ends. INSTALLATION HINT: Check the A/T fluid level. (See item 21 in Maintenance) Plug (4) (3) P13646
