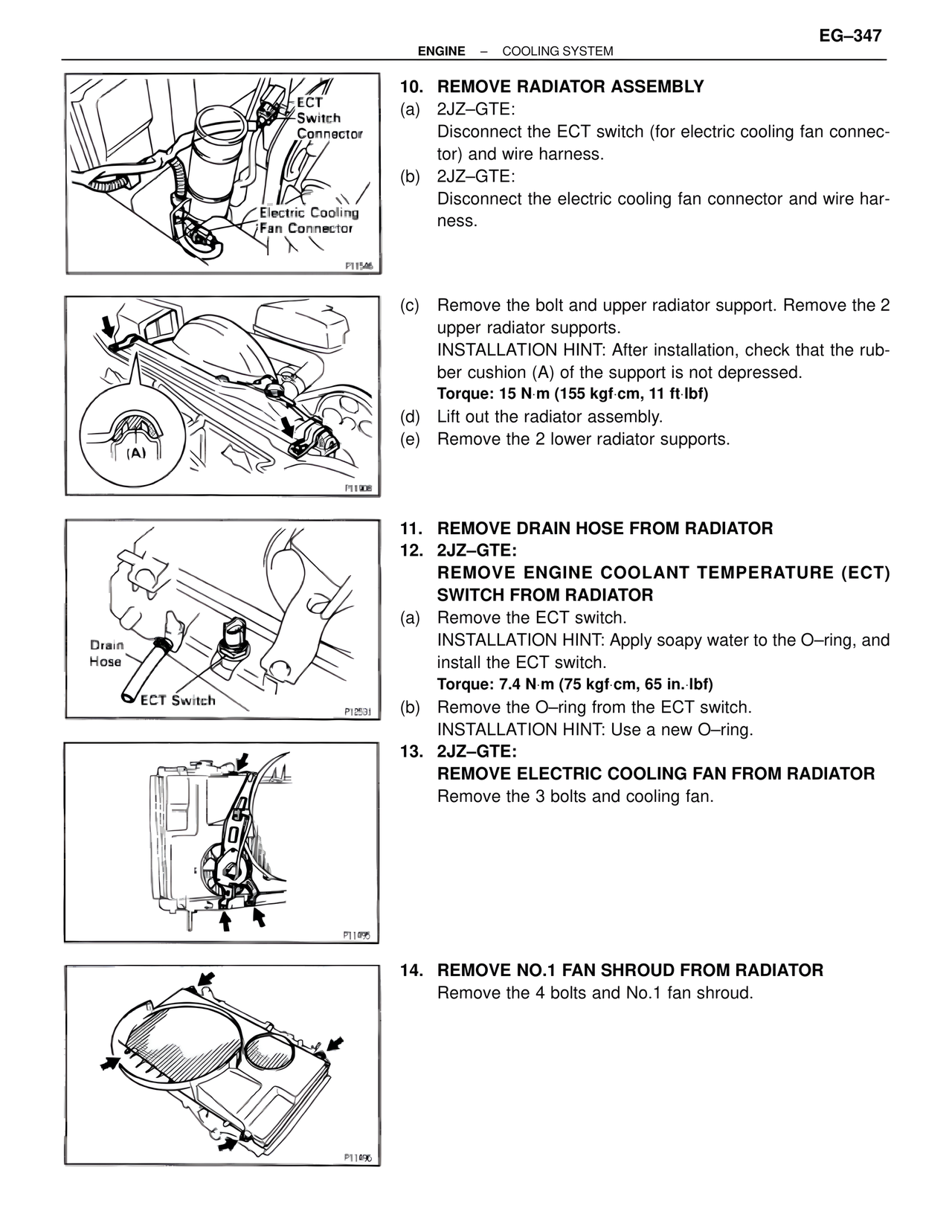

EG–347 ENGINE – COOLING SYSTEM ECT Switch Connector Electric Cooling Fan Connector P11548 10. REMOVE RADIATOR ASSEMBLY (a) 2JZ–GTE: Disconnect the ECT switch (for electric cooling fan connector) and wire harness. (b) 2JZ–GTE: Disconnect the electric cooling fan connector and wire harness. (A) P11908 (c) Remove the bolt and upper radiator support. Remove the 2 upper radiator supports. INSTALLATION HINT: After installation, check that the rubber cushion (A) of the support is not depressed. Torque: 15 N·m (155 kgf·cm, 11 ft·lbf) (d) Lift out the radiator assembly. (e) Remove the 2 lower radiator supports. Drain Hose ECT Switch P12531 11. REMOVE DRAIN HOSE FROM RADIATOR 12. 2JZ–GTE: REMOVE ENGINE COOLANT TEMPERATURE (ECT) SWITCH FROM RADIATOR (a) Remove the ECT switch. INSTALLATION HINT: Apply soapy water to the O–ring, and install the ECT switch. Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf) (b) Remove the O–ring from the ECT switch. INSTALLATION HINT: Use a new O–ring. 13. 2JZ–GTE: REMOVE ELECTRIC COOLING FAN FROM RADIATOR Remove the 3 bolts and cooling fan. P11495 14. REMOVE NO.1 FAN SHROUD FROM RADIATOR Remove the 4 bolts and No.1 fan shroud. P11496
