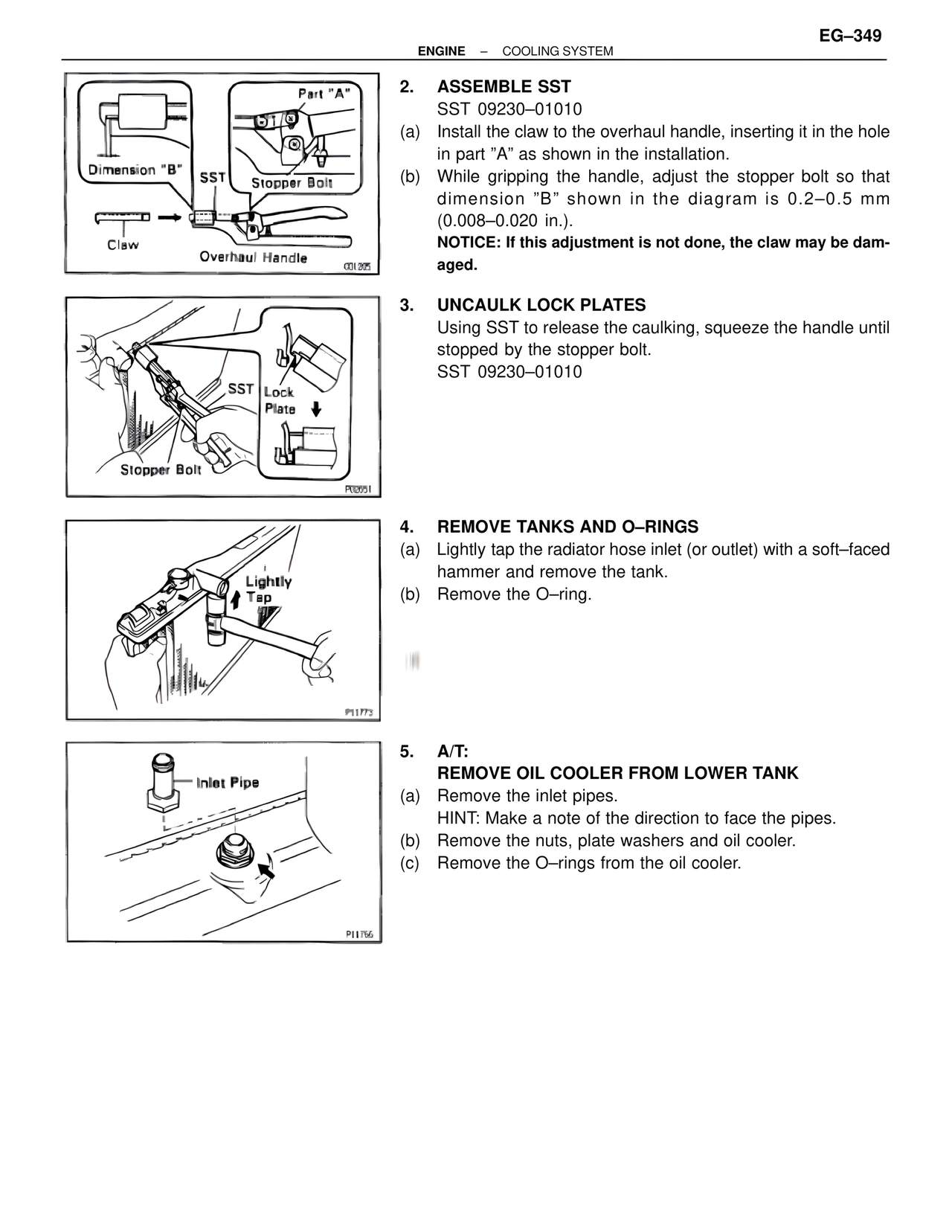

EG–349 ENGINE – COOLING SYSTEM Dimension "B" SST Storper Bolt Claw Overhaul Handle C01305 Part "A" 2. ASSEMBLE SST SST 09230–01010 (a) Install the claw to the overhaul handle, inserting it in the hole in part "A" as shown in the installation. (b) While gripping the handle, adjust the stopper bolt so that dimension "B" shown in the diagram is 0.2–0.5 mm (0.008–0.020 in.). NOTICE: If this adjustment is not done, the claw may be dam- aged. SST Lock Plate Storper Bolt P00651 3. UNCAULK LOCK PLATES Using SST to release the caulking, squeeze the handle until stopped by the stopper bolt. SST 09230–01010 Lightly Tap P11773 4. REMOVE TANKS AND O–RINGS (a) Lightly tap the radiator hose inlet (or outlet) with a soft–faced hammer and remove the tank. (b) Remove the O–ring. Inlet Pipe P11756 5. A/T: REMOVE OIL COOLER FROM LOWER TANK (a) Remove the inlet pipes. HINT: Make a note of the direction to face the pipes. (b) Remove the nuts, plate washers and oil cooler. (c) Remove the O–rings from the oil cooler.
