EG–350
ENGINE – COOLING SYSTEM

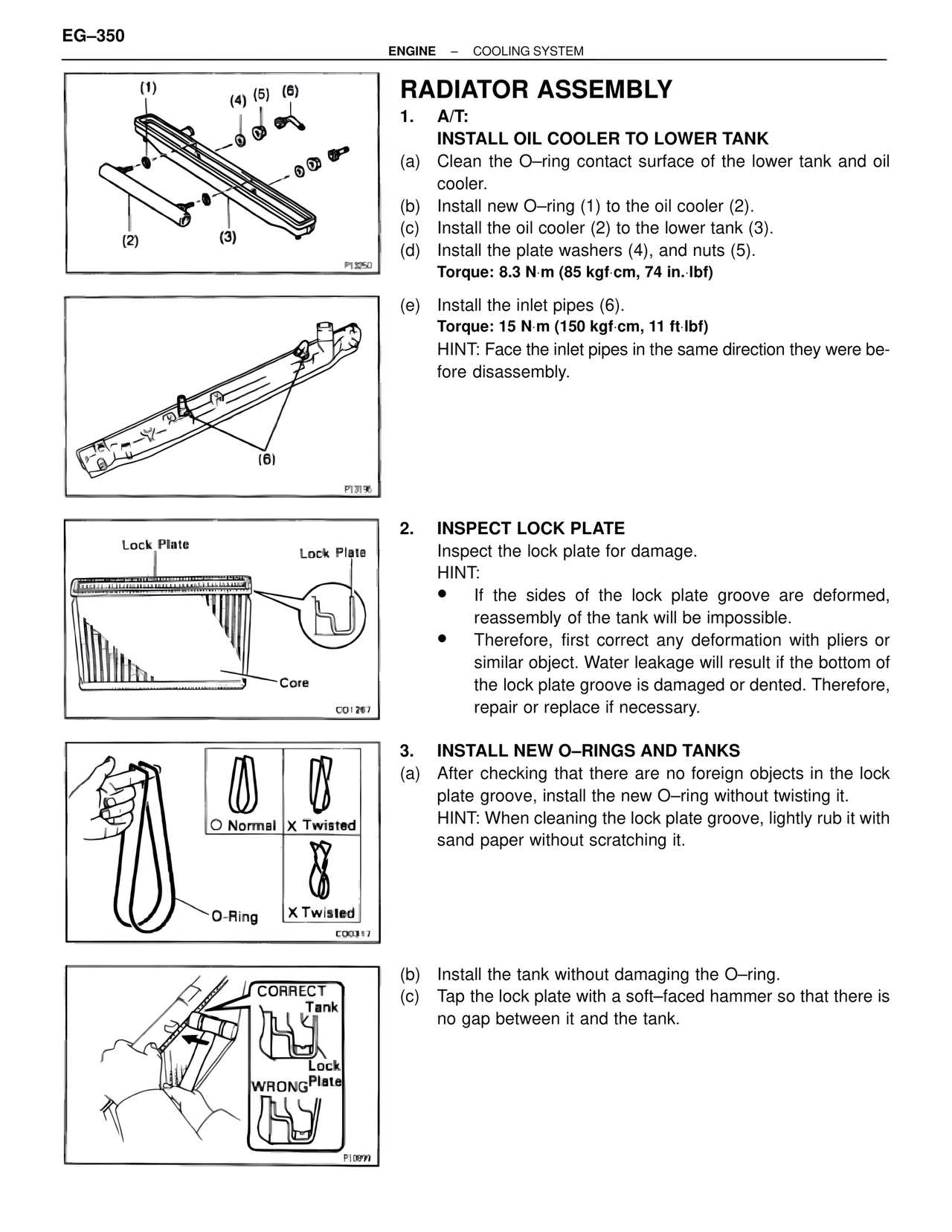

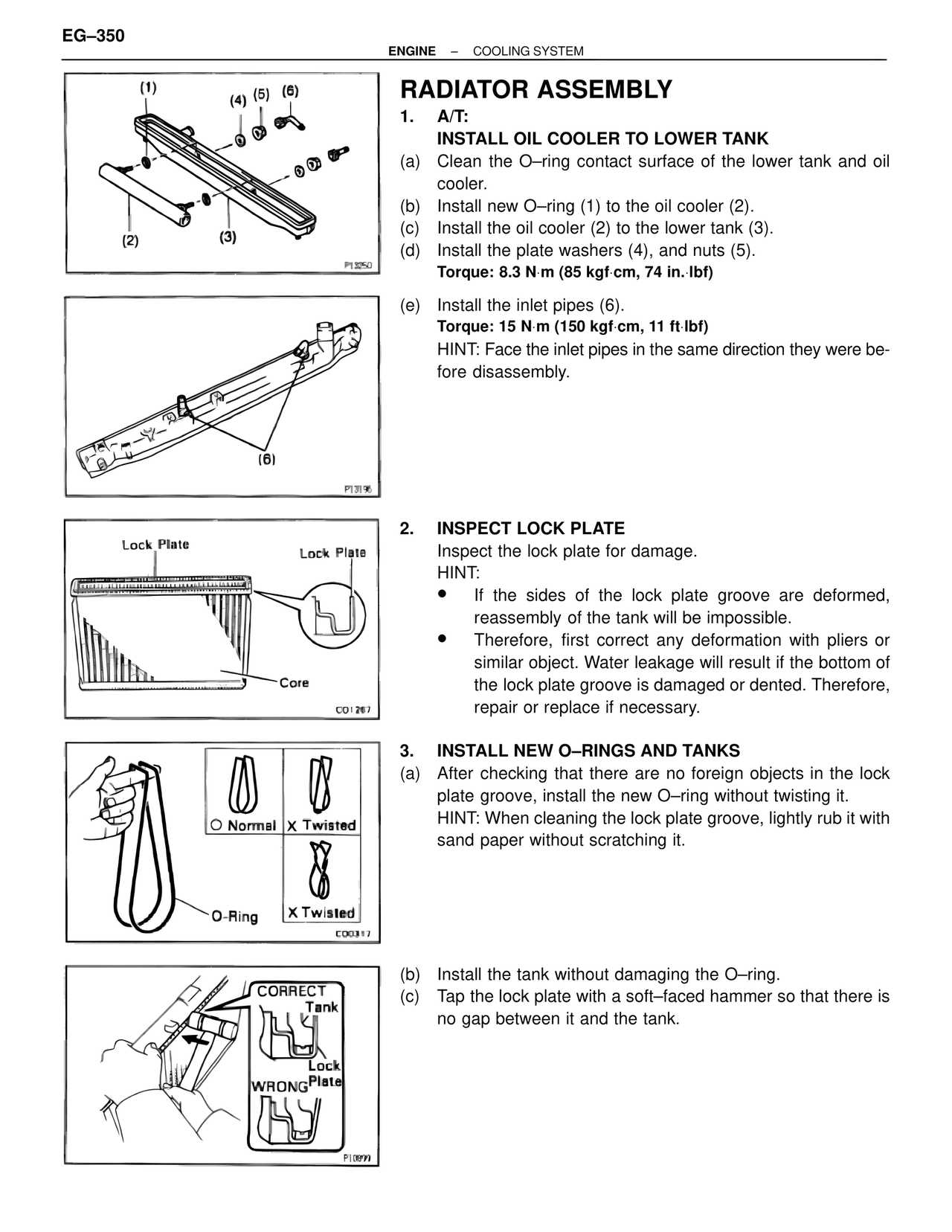

RADIATOR ASSEMBLY
1. A/T:
INSTALL OIL COOLER TO LOWER TANK
(a) Clean the O–ring contact surface of the lower tank and oil cooler.
(b) Install new O–ring (1) to the oil cooler (2).
(c) Install the oil cooler (2) to the lower tank (3).
(d) Install the plate washers (4), and nuts (5).
Torque: 8.3 N·m (85 kgf·cm, 74 in.·lbf)
(e) Install the inlet pipes (6).
Torque: 15 N·m (150 kgf·cm, 11 ft·lbf)
HINT: Face the inlet pipes in the same direction they were before disassembly.
P13250
(6)
P13196
2. INSPECT LOCK PLATE
Inspect the lock plate for damage.
HINT:
• If the sides of the lock plate groove are deformed, reassembly of the tank will be impossible.
• Therefore, first correct any deformation with pliers or similar object. Water leakage will result if the bottom of the lock plate groove is damaged or dented. Therefore, repair or replace if necessary.
Lock Plate Lock Plate
Core
CO1267
3. INSTALL NEW O–RINGS AND TANKS
(a) After checking that there are no foreign objects in the lock plate groove, install the new O–ring without twisting it.
HINT: When cleaning the lock plate groove, lightly rub it with sand paper without scratching it.
O Normal X Twisted
O-Ring
X Twisted
COO317
(b) Install the tank without damaging the O–ring.
(c) Tap the lock plate with a soft–faced hammer so that there is no gap between it and the tank.
CORRECT
Tank
Lock
WRONG Plate
P10999
