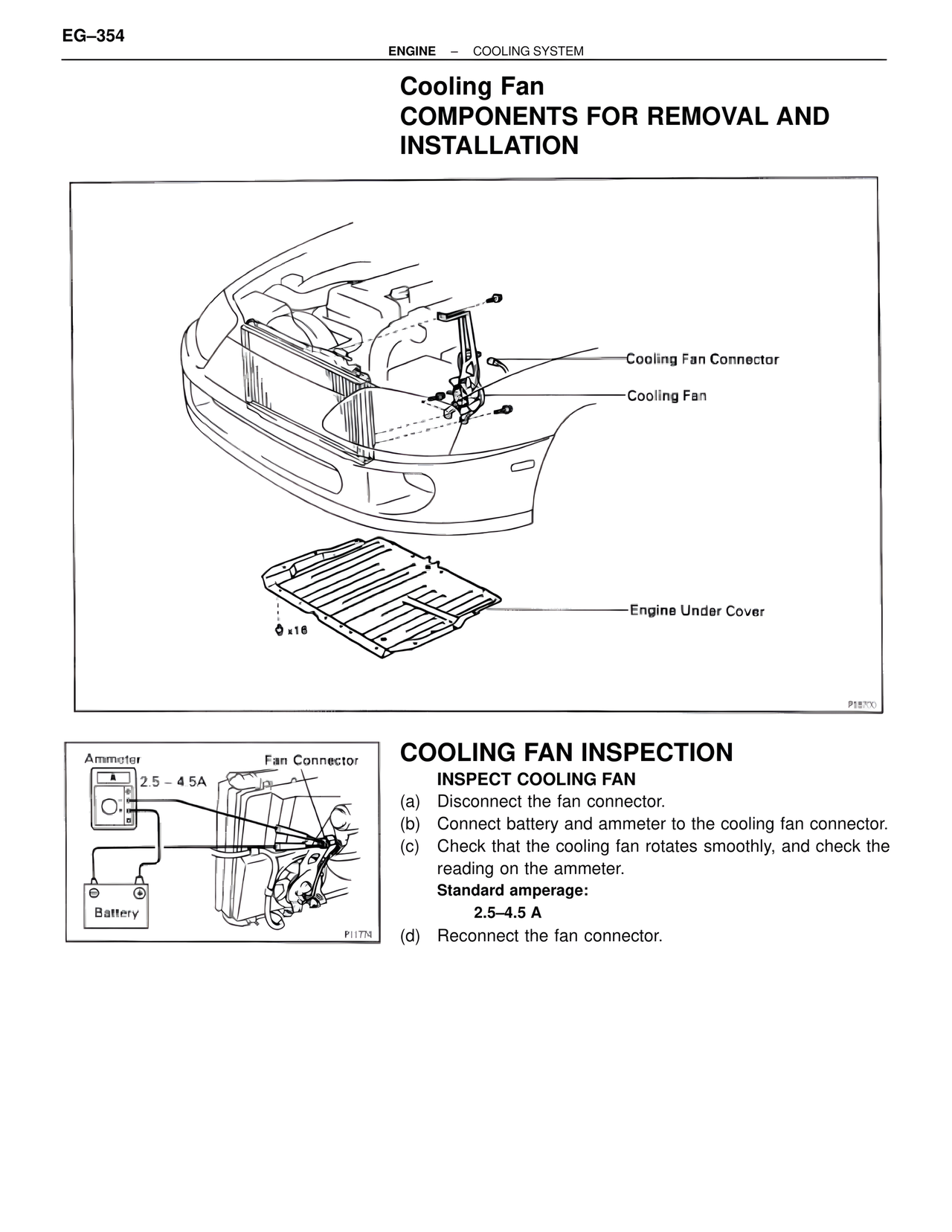

EG–354 ENGINE – COOLING SYSTEM Cooling Fan COMPONENTS FOR REMOVAL AND INSTALLATION Cooling Fan Connector Cooling Fan Engine Under Cover x18 P18YY Ammeter Fan Connector 2.5 – 4.5A Battery P11774 COOLING FAN INSPECTION INSPECT COOLING FAN (a) Disconnect the fan connector. (b) Connect battery and ammeter to the cooling fan connector. (c) Check that the cooling fan rotates smoothly, and check the reading on the ammeter. Standard amperage: 2.5–4.5 A (d) Reconnect the fan connector.
