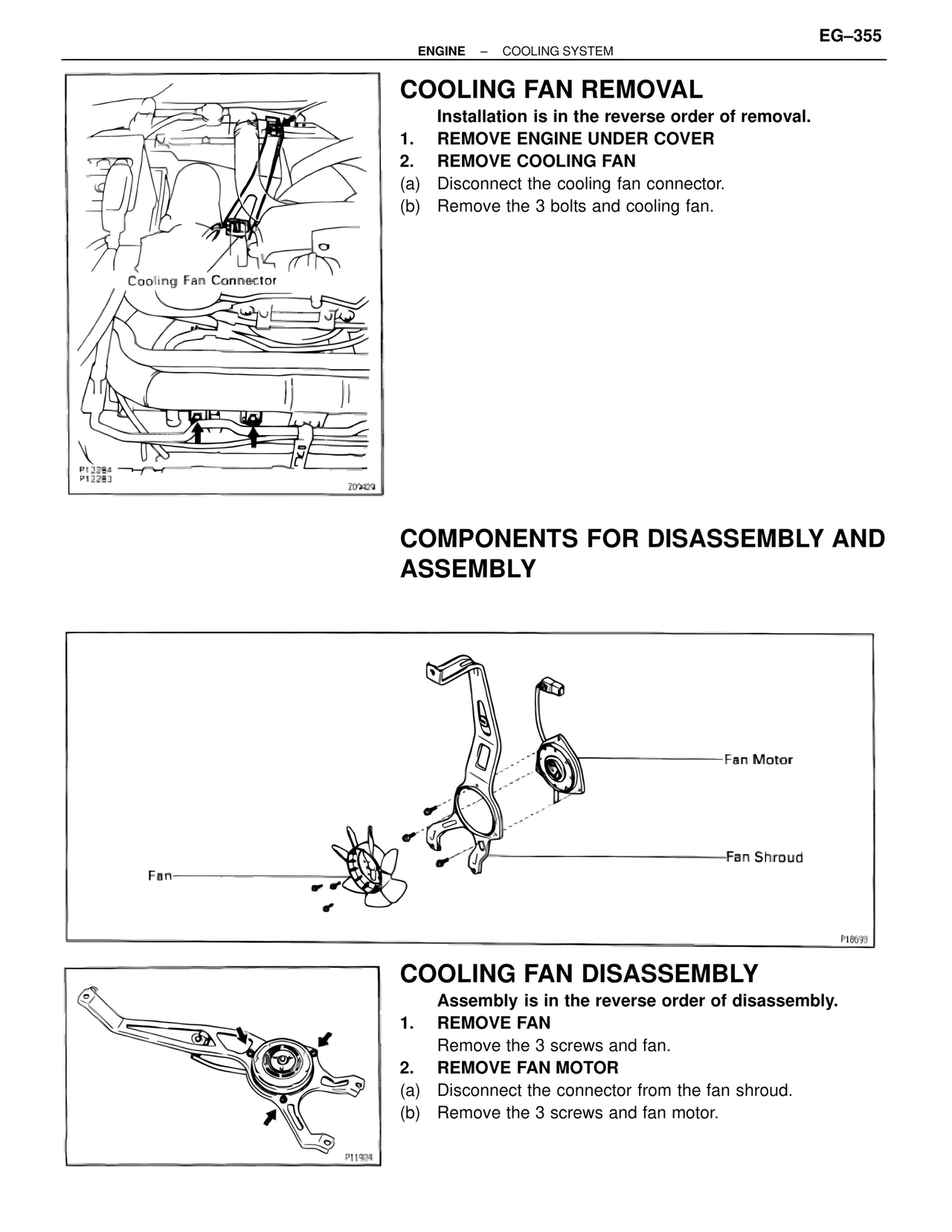

ENGINE – COOLING SYSTEM EG–355 COOLING FAN REMOVAL Installation is in the reverse order of removal. 1. REMOVE ENGINE UNDER COVER 2. REMOVE COOLING FAN (a) Disconnect the cooling fan connector. (b) Remove the 3 bolts and cooling fan. Cooling Fan Connector P12284 P12283 209429 COMPONENTS FOR DISASSEMBLY AND ASSEMBLY Fan Motor Fan Shroud Fan P18693 COOLING FAN DISASSEMBLY Assembly is in the reverse order of disassembly. 1. REMOVE FAN Remove the 3 screws and fan. 2. REMOVE FAN MOTOR (a) Disconnect the connector from the fan shroud. (b) Remove the 3 screws and fan motor. P11924
