IN-10 INTRODUCTION

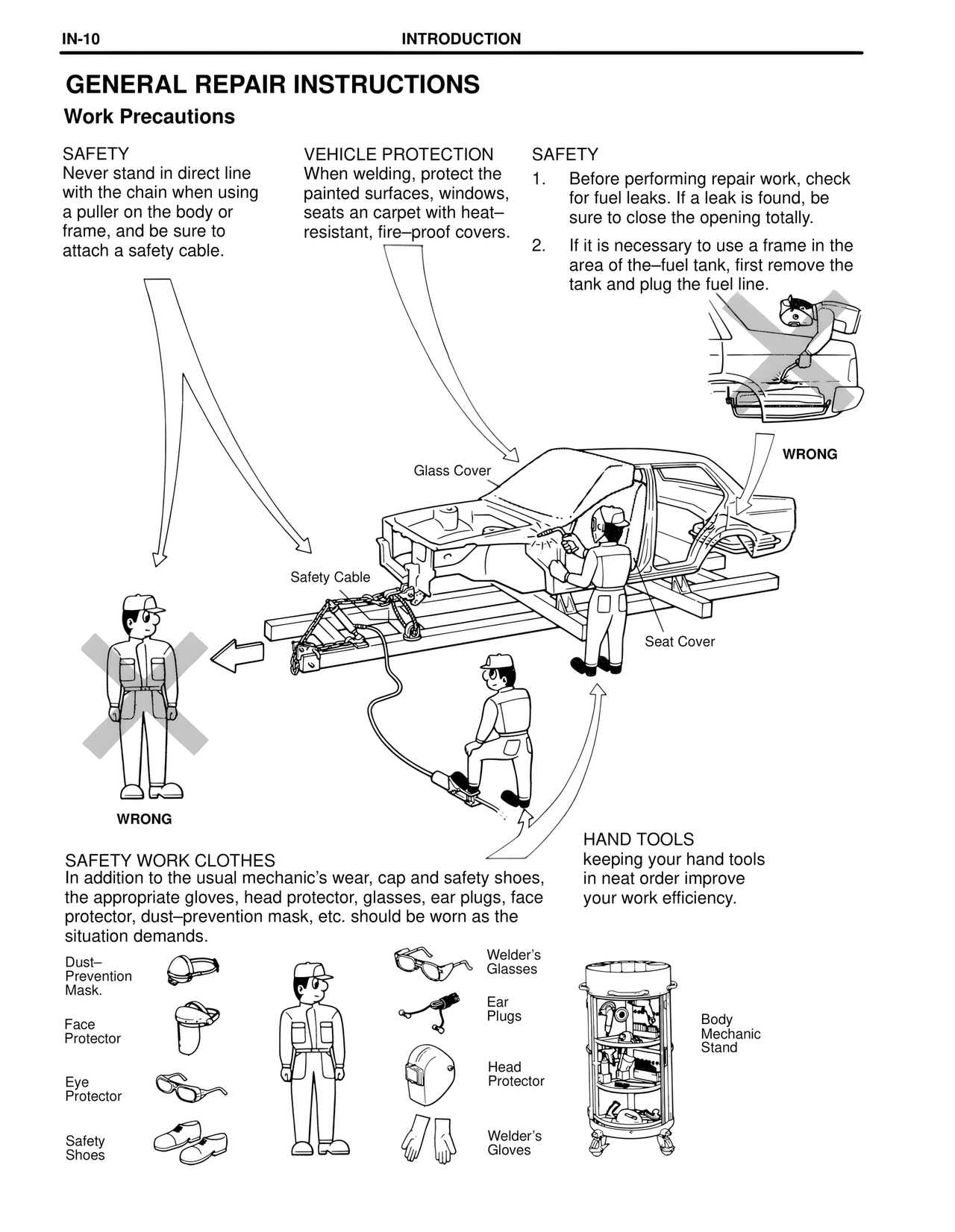

GENERAL REPAIR INSTRUCTIONS
Work Precautions
SAFETY
Never stand in direct line with the chain when using a puller on the body or frame, and be sure to attach a safety cable.
VEHICLE PROTECTION
When welding, protect the painted surfaces, windows, seats an carpet with heat–resistant, fire–proof covers.
SAFETY
1. Before performing repair work, check for fuel leaks. If a leak is found, be sure to close the opening totally.
2. If it is necessary to use a frame in the area of the–fuel tank, first remove the tank and plug the fuel line.
WRONG
Glass Cover
Safety Cable
Seat Cover
WRONG
SAFETY WORK CLOTHES
In addition to the usual mechanic's wear, cap and safety shoes, the appropriate gloves, head protector, glasses, ear plugs, face protector, dust–prevention mask, etc. should be worn as the situation demands.
Dust–Prevention Mask.
Face Protector
Eye Protector
Safety Shoes
Welder's Glasses
Ear Plugs
Head Protector
Welder's Gloves
HAND TOOLS
keeping your hand tools in neat order improve your work efficiency.
Body Mechanic Stand
