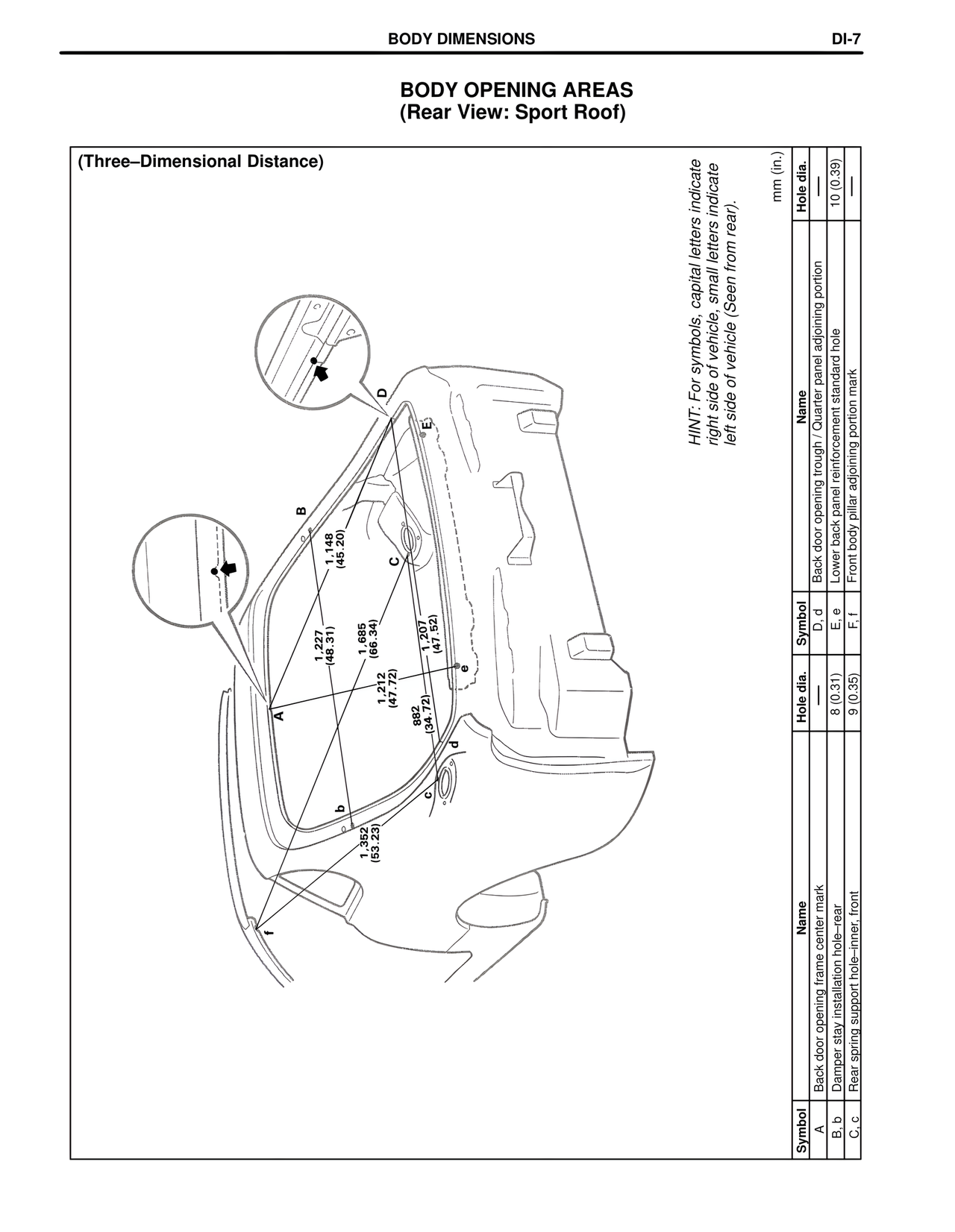

BODY DIMENSIONS DI-7 BODY OPENING AREAS (Rear View: Sport Roof) (Three–Dimensional Distance) HINT: For symbols, capital letters indicate right side of vehicle, small letters indicate left side of vehicle (Seen from rear). mm (in.) 1,148 (45.20) 1,227 (48.31) 1,685 (66.34) 1,207 (47.52) 1,212 (47.72) 882 (34.72) 1,352 (53.23) Symbol | Name | Hole dia. A | Back door opening frame center mark | B, b | Damper stay installation hole–rear | 8 (0.31) C, c | Rear spring support hole–inner, front | 9 (0.35) Symbol | Name | Hole dia. D, d | Back door opening trough / Quarter panel adjoining portion | E, e | Lower back panel reinforcement standard hole | 10 (0.39) F, f | Front body pillar adjoining portion mark |
