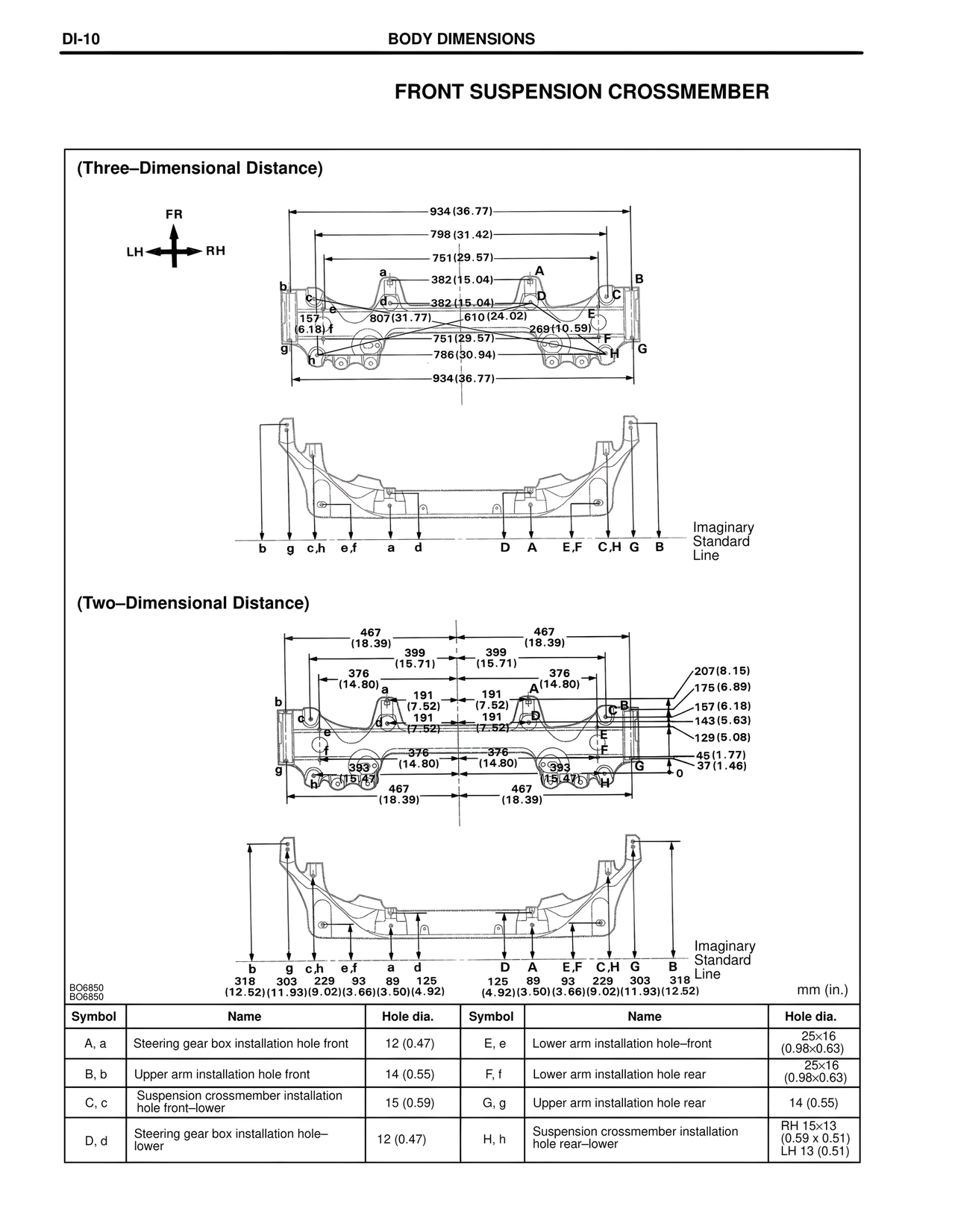

DI-10 BODY DIMENSIONS FRONT SUSPENSION CROSSMEMBER (Three–Dimensional Distance) FR LH ←→ RH 934(36.77) 798(31.42) 751(29.57) a 382(15.04) A b D B c d C 157 e 382(15.04) E (6.18) f 807(31.77) 610(24.02) 751(29.57) 269(10.59) g F 786(30.94) H 934(36.77) Imaginary Standard Line b g c,h e,f a d D A E,F C,H G B (Two–Dimensional Distance) 467 (18.39) 399 (15.71) 467 376 (18.39) (14.80) a 399 b (15.71) c 191 376 d (7.52) 191 A(14.80) 191 (7.52) C,B e (7.52) 191 D 376 (7.52) f (14.80) 376 g 393 (14.80) 393 h (15.47) (15.47) 467 467 (18.39) (18.39) 207(8.15) 175(6.89) 157(6.18) 143(5.63) 129(5.08) 45(1.77) 37(1.46) Imaginary Standard Line b g c,h e,f a d D A E,F C,H G B 318 303 229 93 89 125 125 89 93 229 303 318 (12.52)(11.93)(9.02)(3.66)(3.50)(4.92) (4.92)(3.50)(3.66)(9.02)(11.93)(12.52) BO6850 BO6850 mm (in.) Symbol Name Hole dia. Symbol Name Hole dia. A, a Steering gear box installation hole front 12 (0.47) E, e Lower arm installation hole–front 25×16 (0.98×0.63) B, b Upper arm installation hole front 14 (0.55) F, f Lower arm installation hole rear 25×16 (0.98×0.63) C, c Suspension crossmember installation 15 (0.59) G, g Upper arm installation hole rear 14 (0.55) hole front–lower D, d Steering gear box installation hole– 12 (0.47) H, h Suspension crossmember installation RH 15×13 lower hole rear–lower (0.59 x 0.51) LH 13 (0.51)
