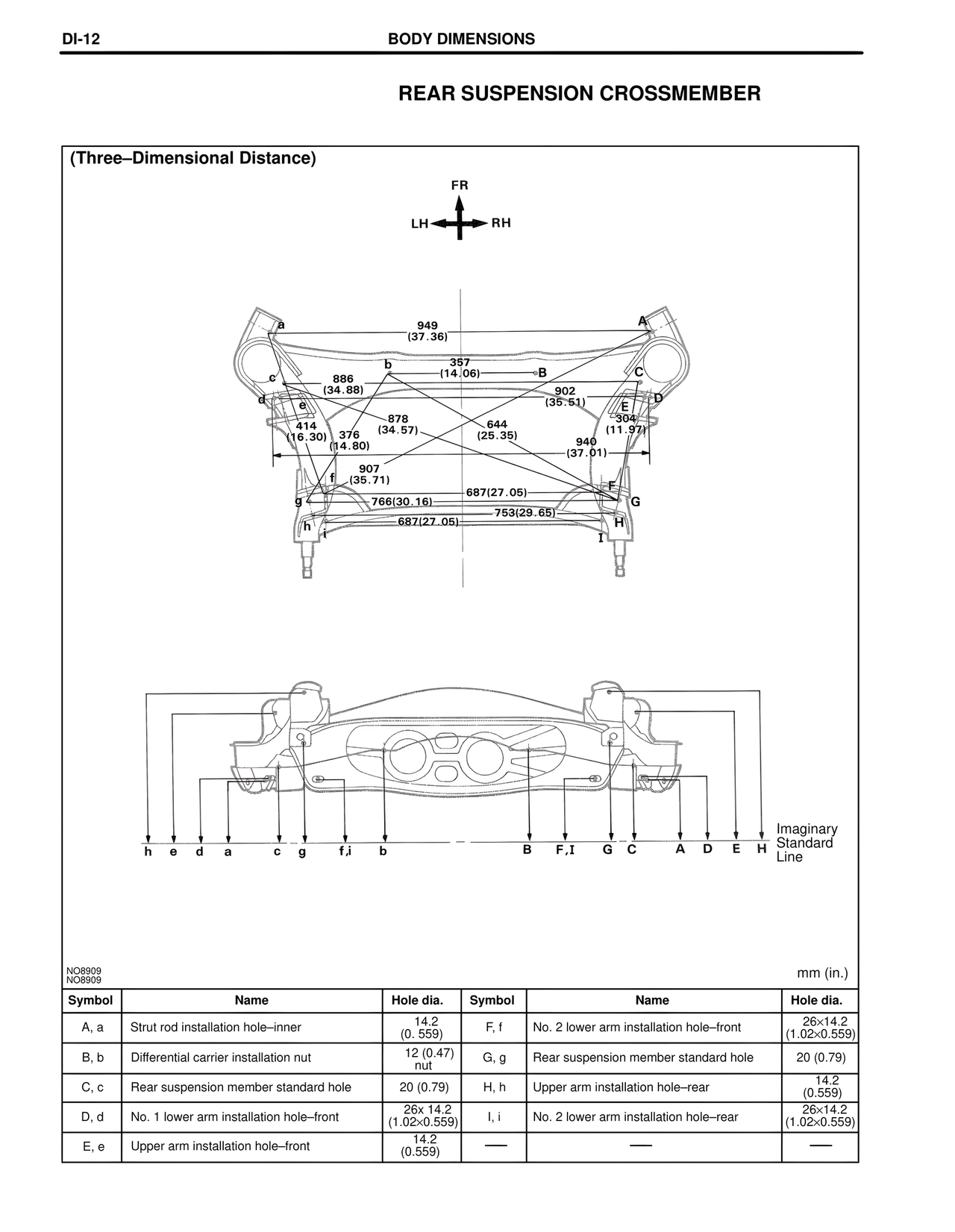

DI-12 BODY DIMENSIONS REAR SUSPENSION CROSSMEMBER (Three-Dimensional Distance) FR LH ◄──┼──► RH 949 (37.36) a A b 357 (14.06) B c 886 (34.88) 902 (35.51) E d e 304 414 878 (11.97) (16.30) (34.57) 644 376 (25.35) (14.80) 940 (37.01) f 907 (35.71) F g 687(27.05) G 766(30.16) h 753(29.65) H 687(27.05) I h e d a c g f,i b B F,I G C A D E H Imaginary Standard Line NO8909 NO8909 mm (in.) Symbol Name Hole dia. Symbol Name Hole dia. A, a Strut rod installation hole–inner 14.2 F, f No. 2 lower arm installation hole–front 26×14.2 (0.559) (1.02×0.559) B, b Differential carrier installation nut 12 (0.47) G, g Rear suspension member standard hole 20 (0.79) nut C, c Rear suspension member standard hole 20 (0.79) H, h Upper arm installation hole–rear 14.2 (0.559) D, d No. 1 lower arm installation hole–front 26x 14.2 I, i No. 2 lower arm installation hole–rear 26×14.2 (1.02×0.559) (1.02×0.559) E, e Upper arm installation hole–front 14.2 — — — (0.559)
