INTRODUCTION
IN-5

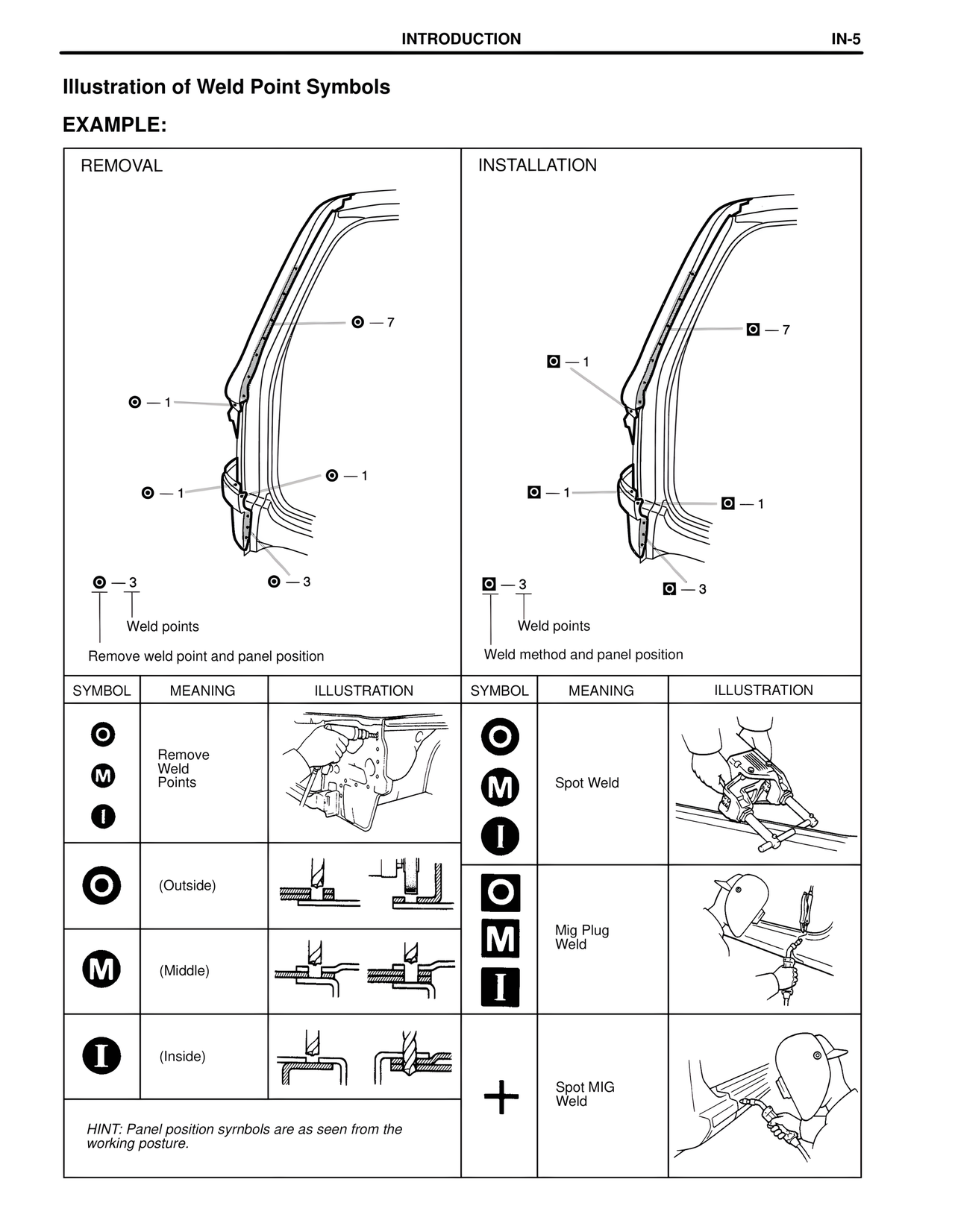

Illustration of Weld Point Symbols
EXAMPLE:
REMOVAL
INSTALLATION
Ⓞ — 7
Ⓞ — 7
Ⓞ — 1
Ⓞ — 1
Ⓞ — 1
Ⓞ — 1
Ⓞ — 1
Ⓞ — 3
Ⓞ — 3
Ⓞ — 3
Ⓞ — 3
Weld points
Weld points
Remove weld point and panel position
Weld method and panel position
SYMBOL | MEANING | ILLUSTRATION | SYMBOL | MEANING | ILLUSTRATION
Ⓞ
ⓜ
ⓘ
Remove Weld Points
[illustration of removal tool]
Ⓞ
ⓜ
ⓘ
Spot Weld
[illustration of spot weld tool]
Ⓞ (Outside)
[illustration of outside panel position]
Ⓞ
ⓜ
ⓘ
Mig Plug Weld
[illustration of mig plug weld tool]
ⓜ (Middle)
[illustration of middle panel position]
ⓘ (Inside)
[illustration of inside panel position]
+
Spot MIG Weld
[illustration of spot mig weld tool]
HINT: Panel position symbols are as seen from the working posture.
