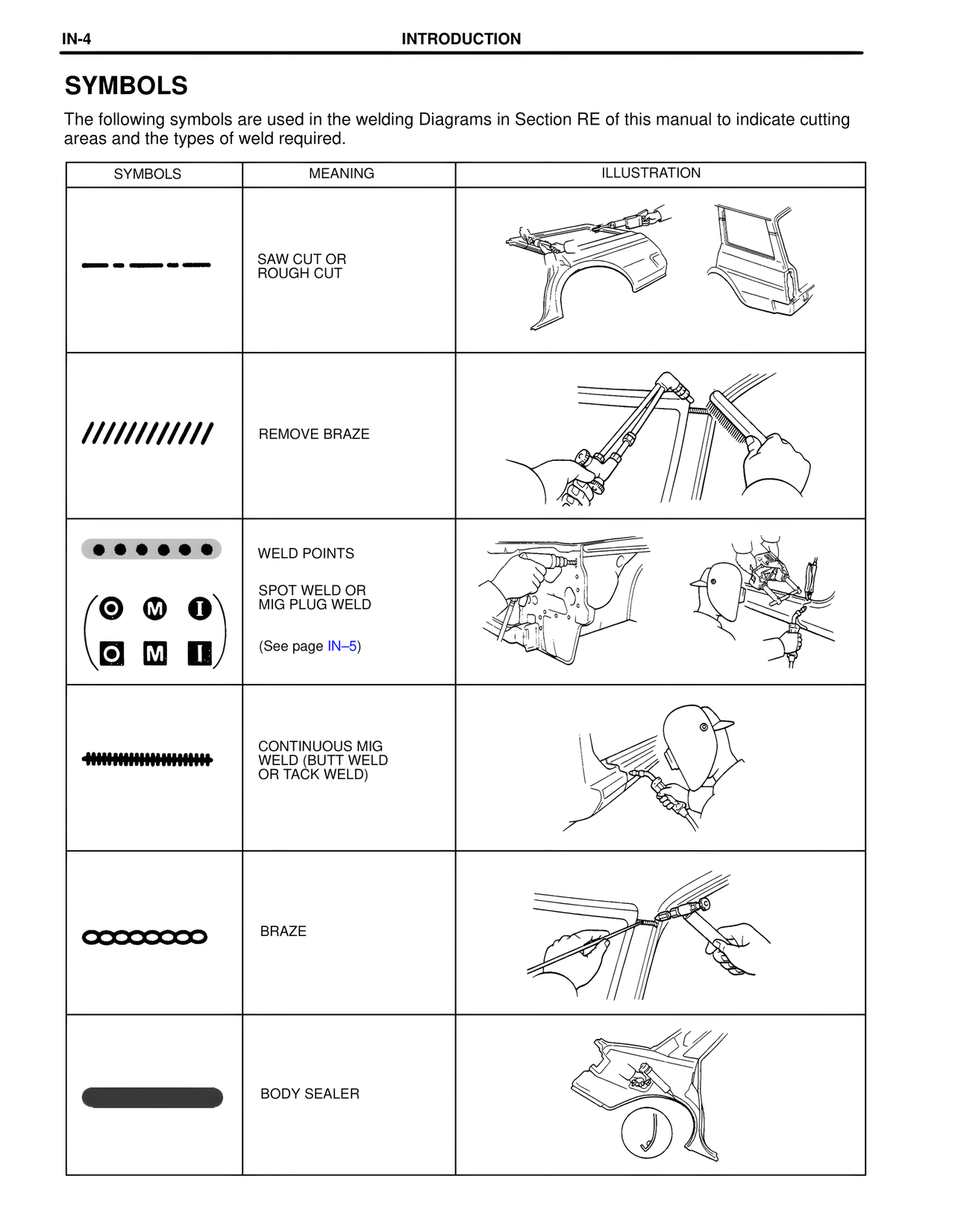

IN-4 INTRODUCTION SYMBOLS The following symbols are used in the welding Diagrams in Section RE of this manual to indicate cutting areas and the types of weld required. SYMBOLS MEANING ILLUSTRATION — — — — SAW CUT OR ROUGH CUT //////////// REMOVE BRAZE ● ● ● ● ● ● WELD POINTS O M I SPOT WELD OR O M I MIG PLUG WELD (See page IN–5) ◄HHHHHHHHHHHH► CONTINUOUS MIG WELD (BUTT WELD OR TACK WELD) oooooooo BRAZE █████████ BODY SEALER
