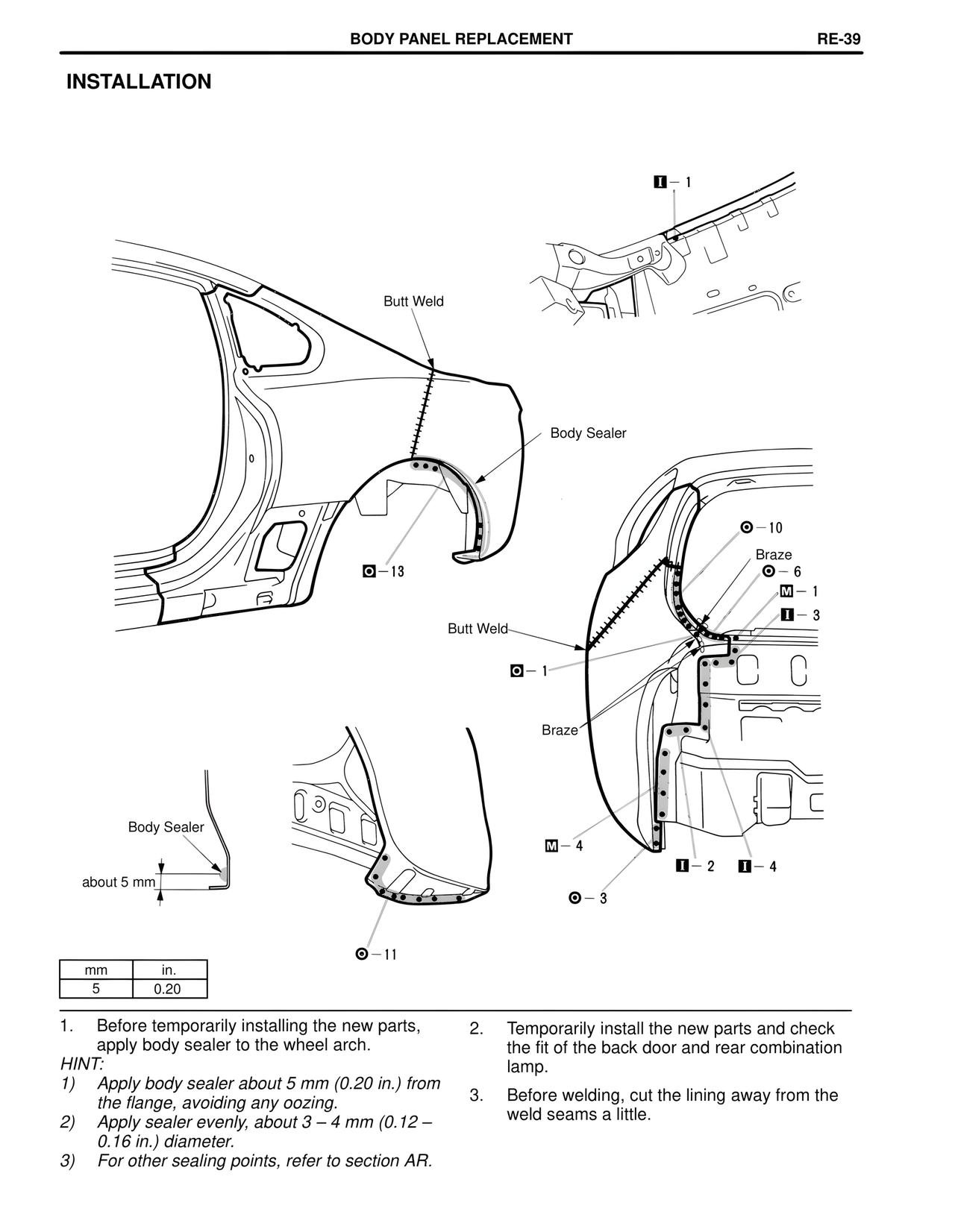

BODY PANEL REPLACEMENT RE-39 INSTALLATION Butt Weld Body Sealer O - 13 Butt Weld O - 1 Braze O - 10 Braze O - 6 M - 1 I - 3 I - 1 Body Sealer about 5 mm M - 4 I - 2 I - 4 O - 3 O - 11 mm in. 5 0.20 1. Before temporarily installing the new parts, apply body sealer to the wheel arch. HINT: 1) Apply body sealer about 5 mm (0.20 in.) from the flange, avoiding any oozing. 2) Apply sealer evenly, about 3 – 4 mm (0.12 – 0.16 in.) diameter. 3) For other sealing points, refer to section AR. 2. Temporarily install the new parts and check the fit of the back door and rear combination lamp. 3. Before welding, cut the lining away from the weld seams a little.
