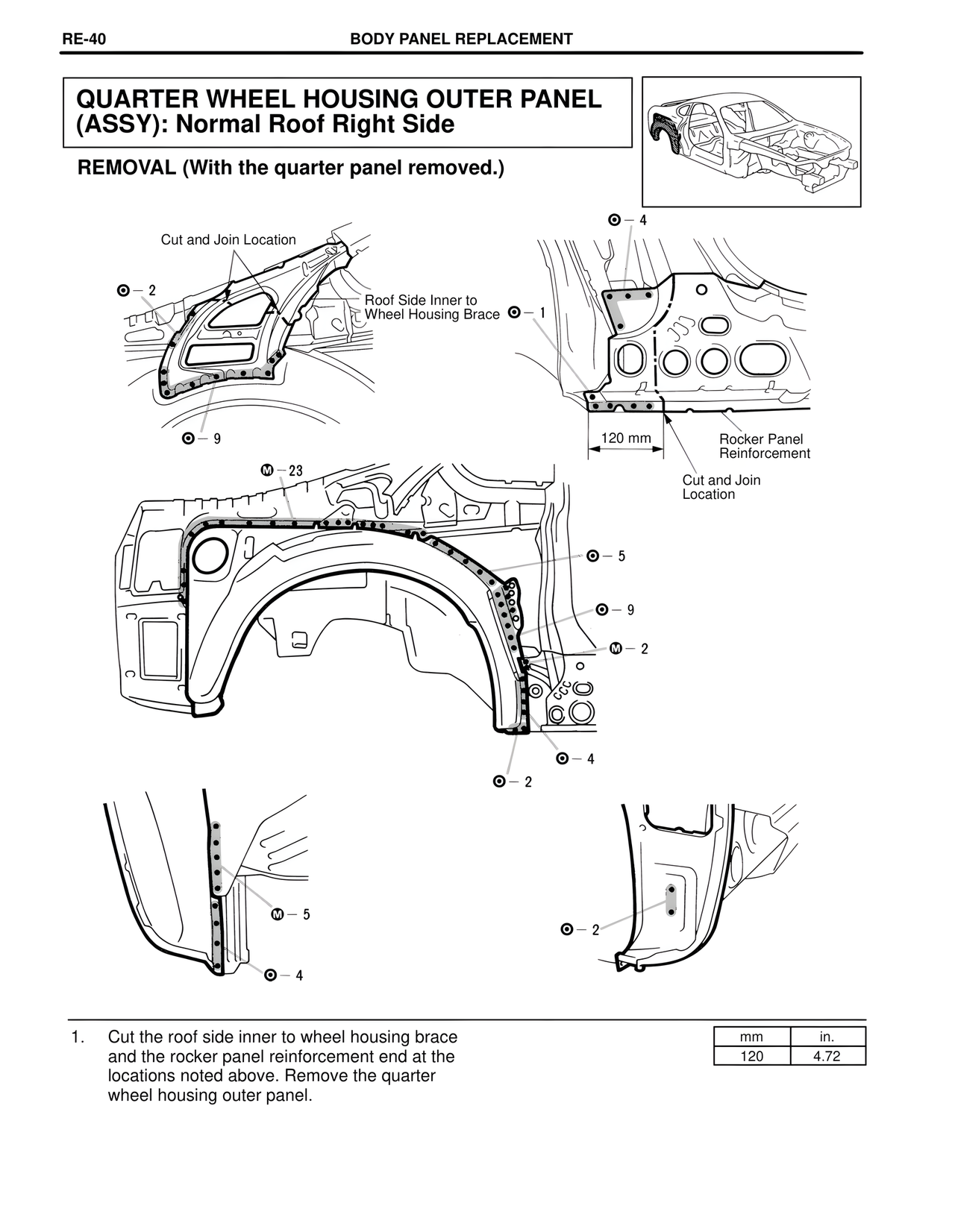

RE-40 BODY PANEL REPLACEMENT QUARTER WHEEL HOUSING OUTER PANEL (ASSY): Normal Roof Right Side REMOVAL (With the quarter panel removed.) Cut and Join Location Roof Side Inner to Wheel Housing Brace ⊙ — 1 ⊙ — 2 ⊙ — 4 o 120 mm Rocker Panel Reinforcement Cut and Join Location ⊙ — 9 Ⓜ — 23 ⊙ — 5 ⊙ — 9 Ⓜ — 2 o ⊙ — 4 ⊙ — 2 Ⓜ — 5 ⊙ — 4 ⊙ — 2 1. Cut the roof side inner to wheel housing brace and the rocker panel reinforcement end at the locations noted above. Remove the quarter wheel housing outer panel. mm in. 120 4.72
