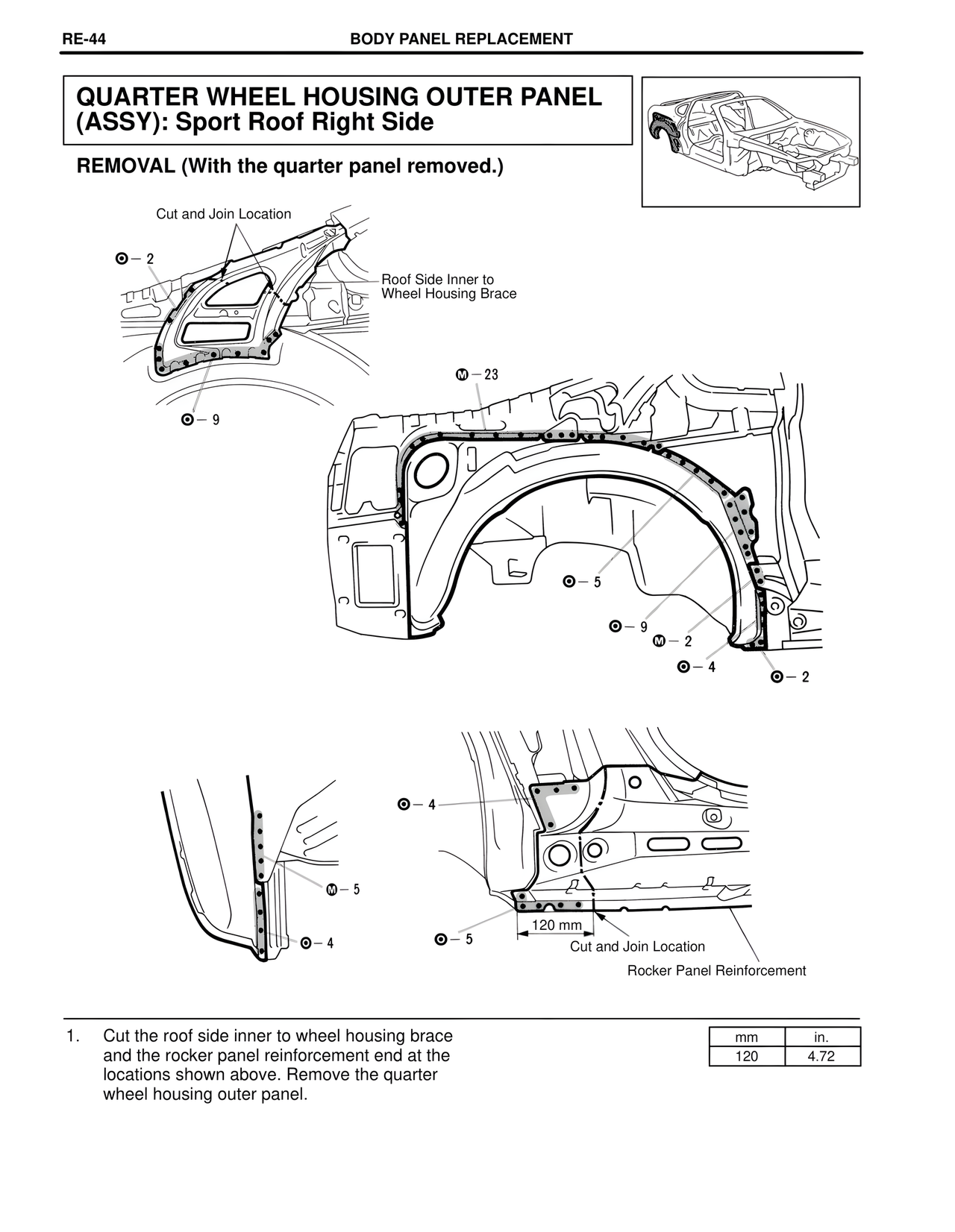

RE-44 BODY PANEL REPLACEMENT
QUARTER WHEEL HOUSING OUTER PANEL
(ASSY): Sport Roof Right Side
REMOVAL (With the quarter panel removed.)
Cut and Join Location
⊙ - 2
Roof Side Inner to
Wheel Housing Brace
Ⓜ - 23
⊙ - 9
⊙ - 5
⊙ - 9
Ⓜ - 2
⊙ - 4
⊙ - 2
⊙ - 4
Ⓜ - 5
⊙ - 4
⊙ - 4
⊙ - 5
120 mm
Cut and Join Location
Rocker Panel Reinforcement
1. Cut the roof side inner to wheel housing brace
and the rocker panel reinforcement end at the
locations shown above. Remove the quarter
wheel housing outer panel.
mm in.
120 4.72
