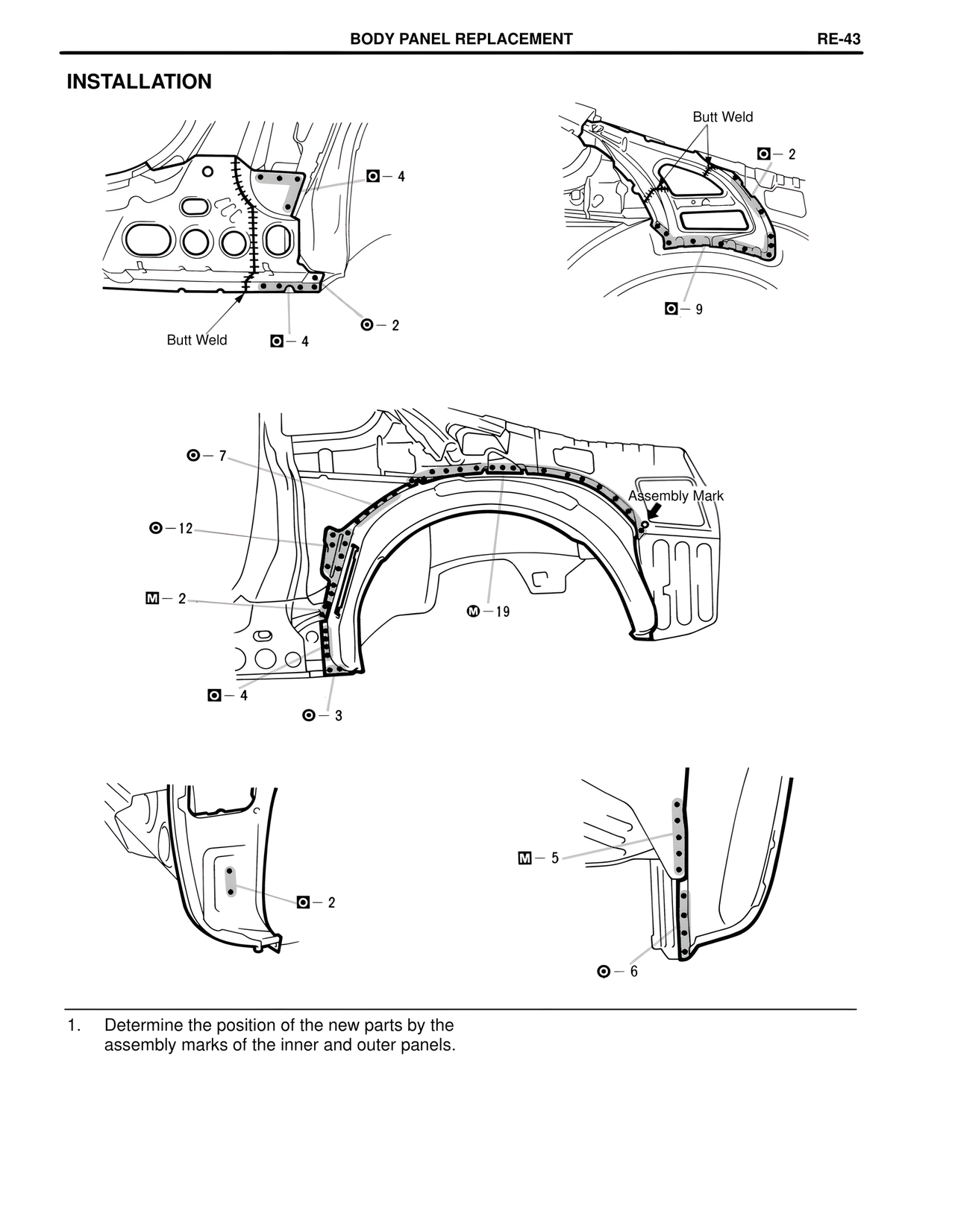

BODY PANEL REPLACEMENT
RE-43
INSTALLATION
Butt Weld
⊙— 4
⊙— 2
Butt Weld
⊙— 4
Butt Weld
⊙— 2
⊙— 9
⊙— 7
Assembly Mark
⊙— 12
M— 2
M— 19
⊙— 4
⊙— 3
⊙— 2
M— 5
⊙— 6
1. Determine the position of the new parts by the assembly marks of the inner and outer panels.
