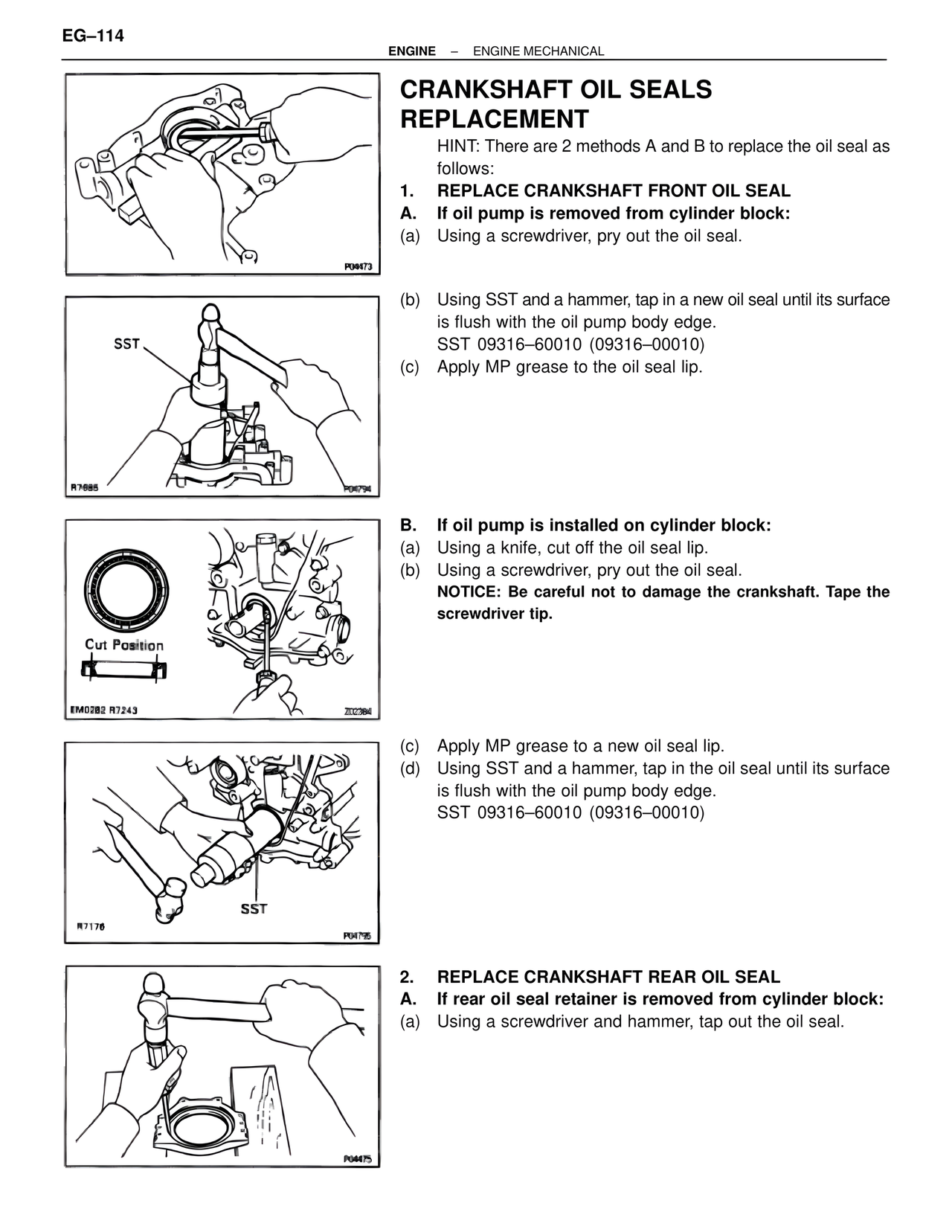

EG–114 ENGINE – ENGINE MECHANICAL CRANKSHAFT OIL SEALS REPLACEMENT HINT: There are 2 methods A and B to replace the oil seal as follows: 1. REPLACE CRANKSHAFT FRONT OIL SEAL A. If oil pump is removed from cylinder block: (a) Using a screwdriver, pry out the oil seal. SST (b) Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge. SST 09316–60010 (09316–00010) (c) Apply MP grease to the oil seal lip. Cut Position EM0282 R7243 B. If oil pump is installed on cylinder block: (a) Using a knife, cut off the oil seal lip. (b) Using a screwdriver, pry out the oil seal. NOTICE: Be careful not to damage the crankshaft. Tape the screwdriver tip. (c) Apply MP grease to a new oil seal lip. (d) Using SST and a hammer, tap in the oil seal until its surface is flush with the oil pump body edge. SST 09316–60010 (09316–00010) SST 2. REPLACE CRANKSHAFT REAR OIL SEAL A. If rear oil seal retainer is removed from cylinder block: (a) Using a screwdriver and hammer, tap out the oil seal.
