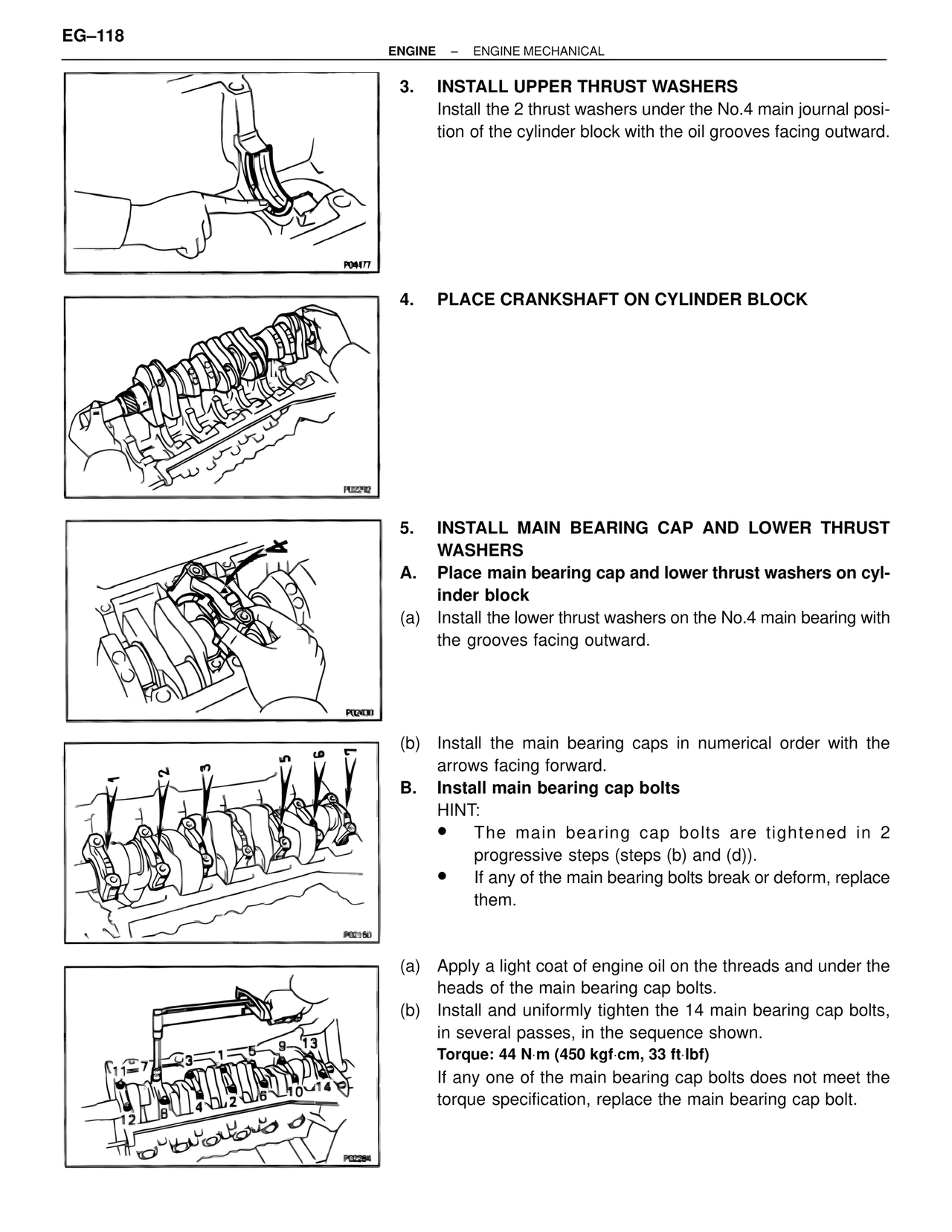

EG–118
ENGINE – ENGINE MECHANICAL
3. INSTALL UPPER THRUST WASHERS
Install the 2 thrust washers under the No.4 main journal position of the cylinder block with the oil grooves facing outward.
P04477
4. PLACE CRANKSHAFT ON CYLINDER BLOCK
P02202
5. INSTALL MAIN BEARING CAP AND LOWER THRUST WASHERS
A. Place main bearing cap and lower thrust washers on cylinder block
(a) Install the lower thrust washers on the No.4 main bearing with the grooves facing outward.
P02430
(b) Install the main bearing caps in numerical order with the arrows facing forward.
B. Install main bearing cap bolts
HINT:
• The main bearing cap bolts are tightened in 2 progressive steps (steps (b) and (d)).
• If any of the main bearing bolts break or deform, replace them.
P02150
(a) Apply a light coat of engine oil on the threads and under the heads of the main bearing cap bolts.
(b) Install and uniformly tighten the 14 main bearing cap bolts, in several passes, in the sequence shown.
Torque: 44 N·m (450 kgf·cm, 33 ft·lbf)
If any one of the main bearing cap bolts does not meet the torque specification, replace the main bearing cap bolt.
P02284
