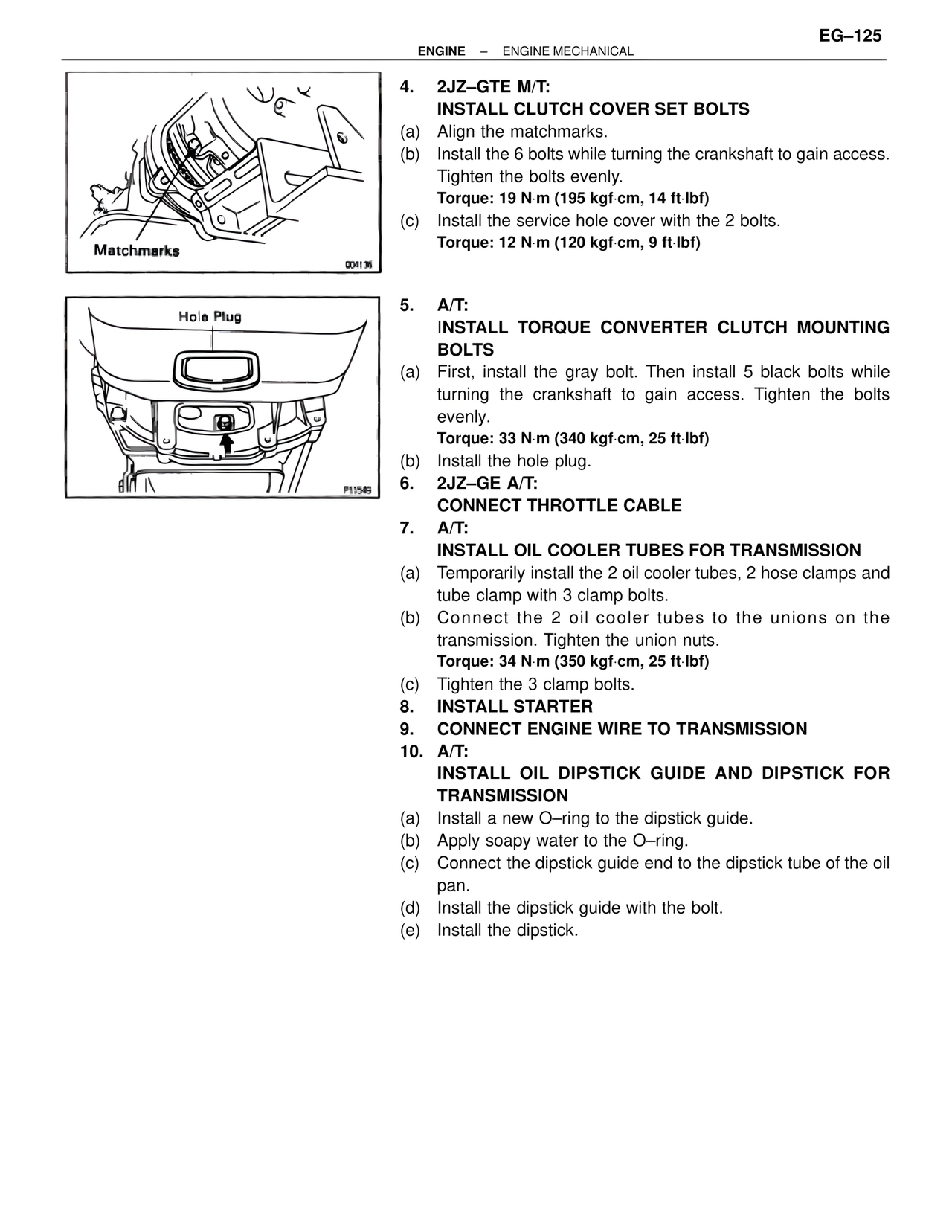

EG-125
ENGINE – ENGINE MECHANICAL
Matchmarks
000135
4. 2JZ–GTE M/T:
INSTALL CLUTCH COVER SET BOLTS
(a) Align the matchmarks.
(b) Install the 6 bolts while turning the crankshaft to gain access.
Tighten the bolts evenly.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)
(c) Install the service hole cover with the 2 bolts.
Torque: 12 N·m (120 kgf·cm, 9 ft·lbf)
Hole Plug
P11549
5. A/T:
INSTALL TORQUE CONVERTER CLUTCH MOUNTING
BOLTS
(a) First, install the gray bolt. Then install 5 black bolts while
turning the crankshaft to gain access. Tighten the bolts
evenly.
Torque: 33 N·m (340 kgf·cm, 25 ft·lbf)
(b) Install the hole plug.
6. 2JZ–GE A/T:
CONNECT THROTTLE CABLE
7. A/T:
INSTALL OIL COOLER TUBES FOR TRANSMISSION
(a) Temporarily install the 2 oil cooler tubes, 2 hose clamps and
tube clamp with 3 clamp bolts.
(b) Connect the 2 oil cooler tubes to the unions on the
transmission. Tighten the union nuts.
Torque: 34 N·m (350 kgf·cm, 25 ft·lbf)
(c) Tighten the 3 clamp bolts.
8. INSTALL STARTER
9. CONNECT ENGINE WIRE TO TRANSMISSION
10. A/T:
INSTALL OIL DIPSTICK GUIDE AND DIPSTICK FOR
TRANSMISSION
(a) Install a new O–ring to the dipstick guide.
(b) Apply soapy water to the O–ring.
(c) Connect the dipstick guide end to the dipstick tube of the oil
pan.
(d) Install the dipstick guide with the bolt.
(e) Install the dipstick.
