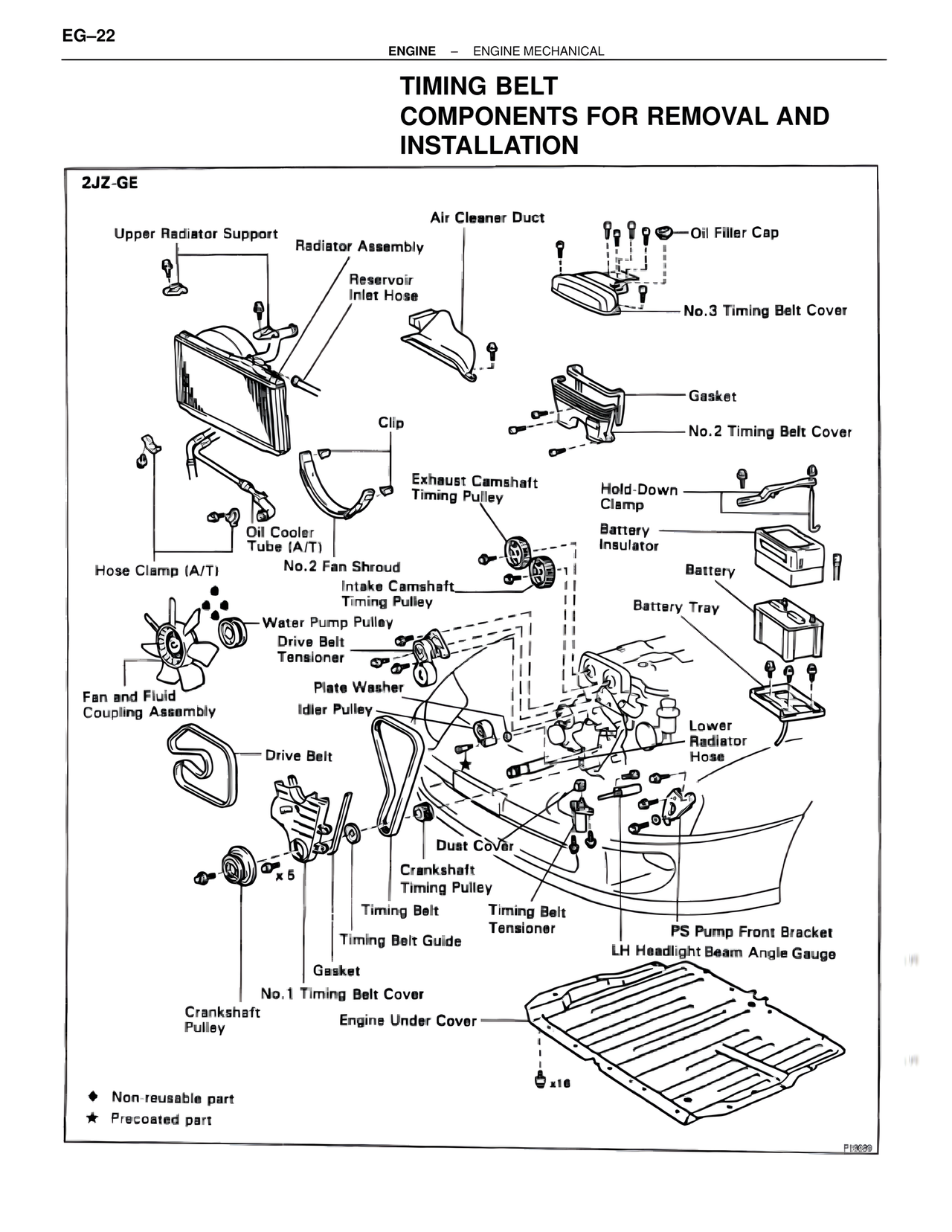

EG–22 ENGINE – ENGINE MECHANICAL TIMING BELT COMPONENTS FOR REMOVAL AND INSTALLATION 2JZ-GE Air Cleaner Duct Upper Radiator Support Oil Filler Cap Radiator Assembly Reservoir Inlet Hose No.3 Timing Belt Cover Gasket No.2 Timing Belt Cover Clip Exhaust Camshaft Timing Pulley Hold-Down Clamp Oil Cooler Tube (A/T) Battery Insulator No.2 Fan Shroud Intake Camshaft Timing Pulley Battery Hose Clamp (A/T) Water Pump Pulley Battery Tray Drive Belt Tensioner Plate Washer Idler Pulley Fan and Fluid Coupling Assembly Lower Radiator Hose Drive Belt Dust Cover Crankshaft Timing Pulley Timing Belt Timing Belt Tensioner Timing Belt Guide PS Pump Front Bracket LH Headlight Beam Angle Gauge Gasket No.1 Timing Belt Cover Crankshaft Pulley Engine Under Cover x5 x16 ♦ Non-reusable part ★ Precoated part PI3689
