EG–34
ENGINE – ENGINE MECHANICAL

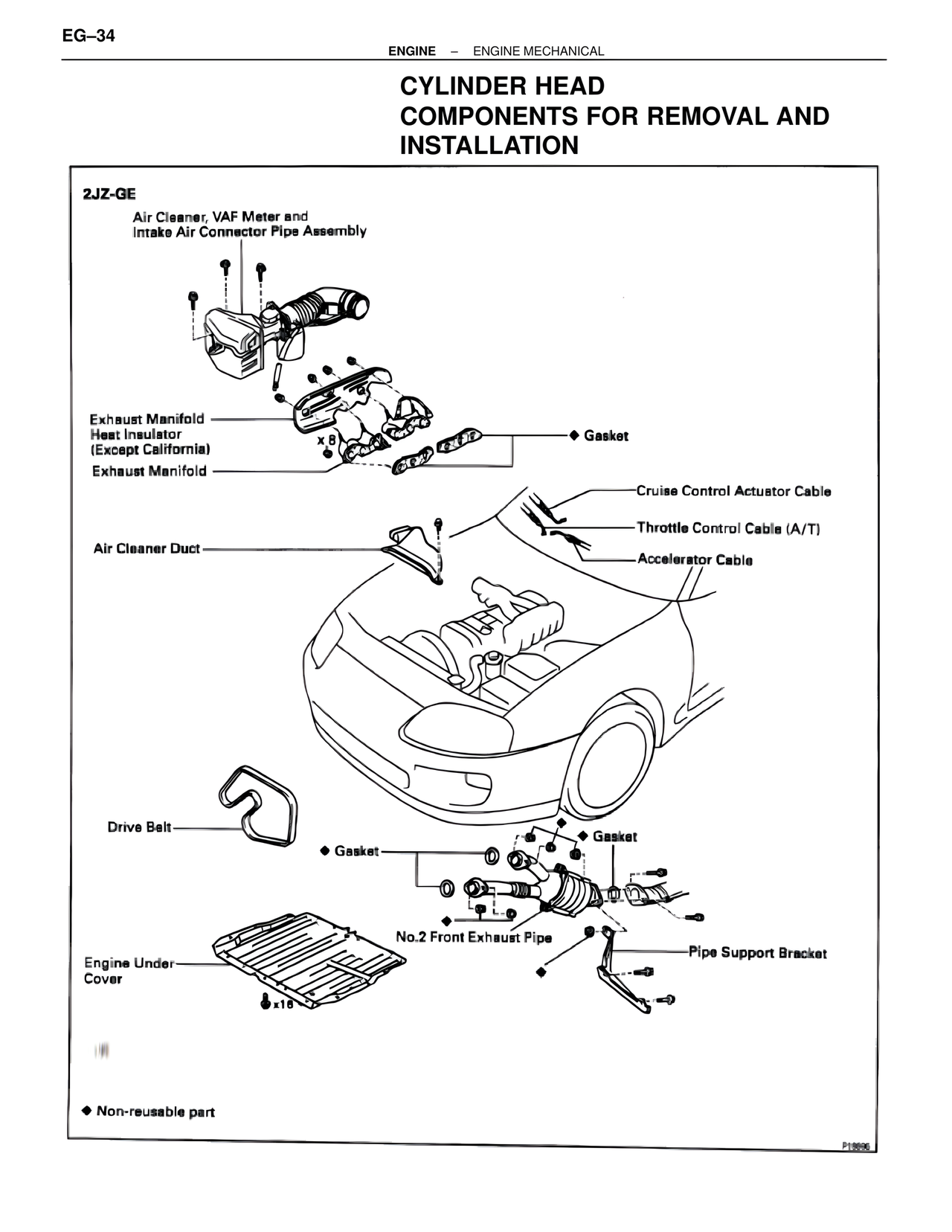

CYLINDER HEAD
COMPONENTS FOR REMOVAL AND
INSTALLATION
2JZ-GE
Air Cleaner, VAF Meter and
Intake Air Connector Pipe Assembly
Exhaust Manifold
Heat Insulator
(Except California)
Exhaust Manifold
x 8
◆ Gasket
Cruise Control Actuator Cable
Throttle Control Cable (A/T)
Accelerator Cable
Air Cleaner Duct
Drive Belt
◆ Gasket
◆ Gasket
No.2 Front Exhaust Pipe
Pipe Support Bracket
Engine Under
Cover
x16
◆ Non-reusable part
P18696
