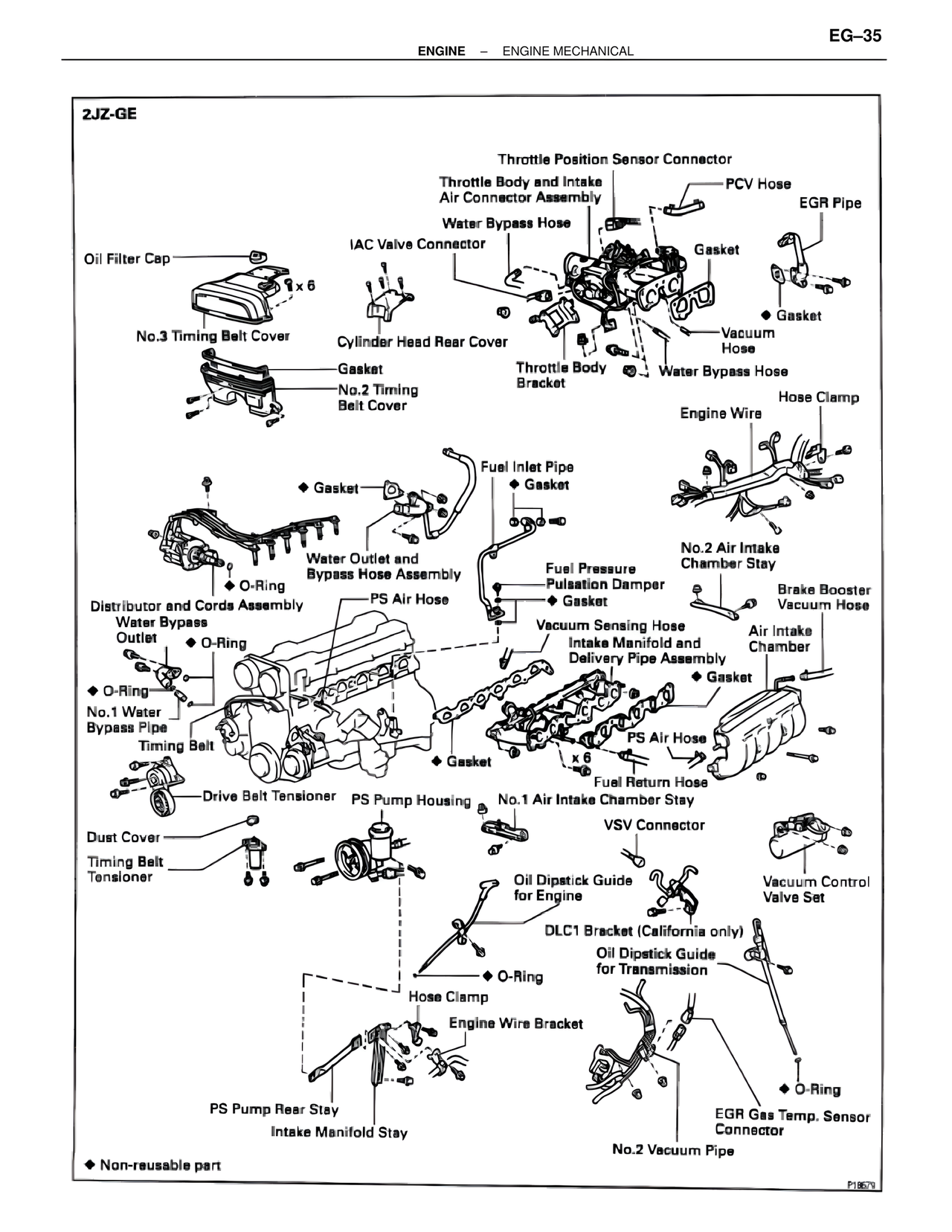

EG-35
ENGINE — ENGINE MECHANICAL
2JZ-GE
Throttle Position Sensor Connector
Throttle Body and Intake
Air Connector Assembly
PCV Hose
Water Bypass Hose
EGR Pipe
IAC Valve Connector
Gasket
Oil Filter Cap
x 6
Gasket
No.3 Timing Belt Cover
Cylinder Head Rear Cover
Vacuum
Hose
Gasket
Throttle Body
Bracket
Water Bypass Hose
No.2 Timing
Belt Cover
Hose Clamp
Engine Wire
Fuel Inlet Pipe
♦ Gasket
No.2 Air Intake
Chamber Stay
Water Outlet and
Bypass Hose Assembly
Fuel Pressure
Pulsation Damper
♦ Gasket
Brake Booster
Vacuum Hose
PS Air Hose
O-Ring
Distributor and Cords Assembly
Water Bypass
Outlet
Vacuum Sensing Hose
Intake Manifold and
Delivery Pipe Assembly
Air Intake
Chamber
♦ O-Ring
♦ Gasket
♦ O-Ring
No.1 Water
Bypass Pipe
Timing Belt
PS Air Hose
♦ Gasket
x 6
Fuel Return Hose
Drive Belt Tensioner
PS Pump Housing
No.1 Air Intake Chamber Stay
Dust Cover
VSV Connector
Timing Belt
Tensioner
Oil Dipstick Guide
for Engine
Vacuum Control
Valve Set
DLC1 Bracket (California only)
Oil Dipstick Guide
for Transmission
♦ O-Ring
Hose Clamp
Engine Wire Bracket
♦ O-Ring
EGR Gas Temp. Sensor
Connector
PS Pump Rear Stay
Intake Manifold Stay
No.2 Vacuum Pipe
♦ Non-reusable part
P18679
