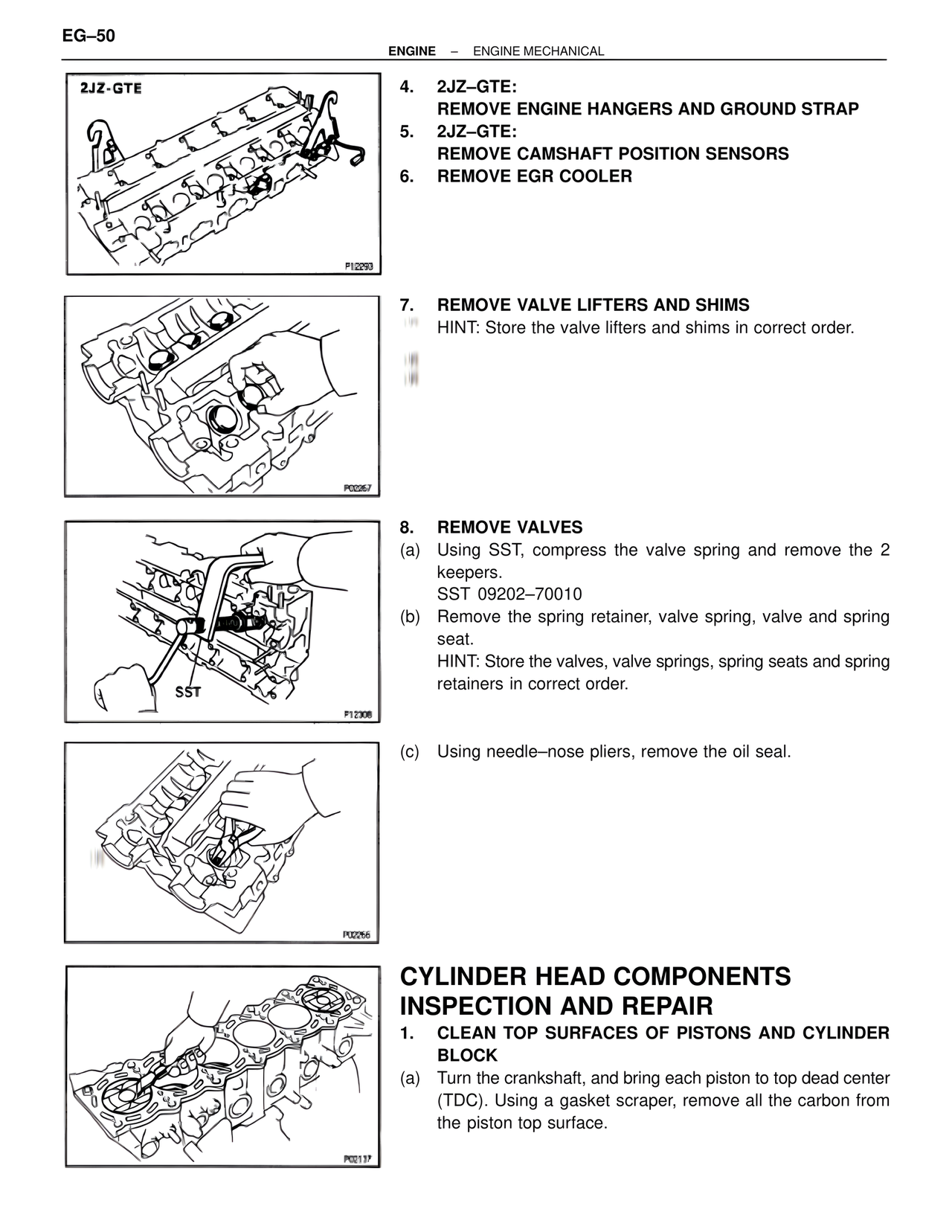

EG–50
ENGINE – ENGINE MECHANICAL
2JZ-GTE
P12293
4. 2JZ–GTE:
REMOVE ENGINE HANGERS AND GROUND STRAP
5. 2JZ–GTE:
REMOVE CAMSHAFT POSITION SENSORS
6. REMOVE EGR COOLER
P00267
7. REMOVE VALVE LIFTERS AND SHIMS
HINT: Store the valve lifters and shims in correct order.
SST
P12308
8. REMOVE VALVES
(a) Using SST, compress the valve spring and remove the 2 keepers.
SST 09202–70010
(b) Remove the spring retainer, valve spring, valve and spring seat.
HINT: Store the valves, valve springs, spring seats and spring retainers in correct order.
P00266
(c) Using needle–nose pliers, remove the oil seal.
P02137
CYLINDER HEAD COMPONENTS INSPECTION AND REPAIR
1. CLEAN TOP SURFACES OF PISTONS AND CYLINDER BLOCK
(a) Turn the crankshaft, and bring each piston to top dead center (TDC). Using a gasket scraper, remove all the carbon from the piston top surface.
