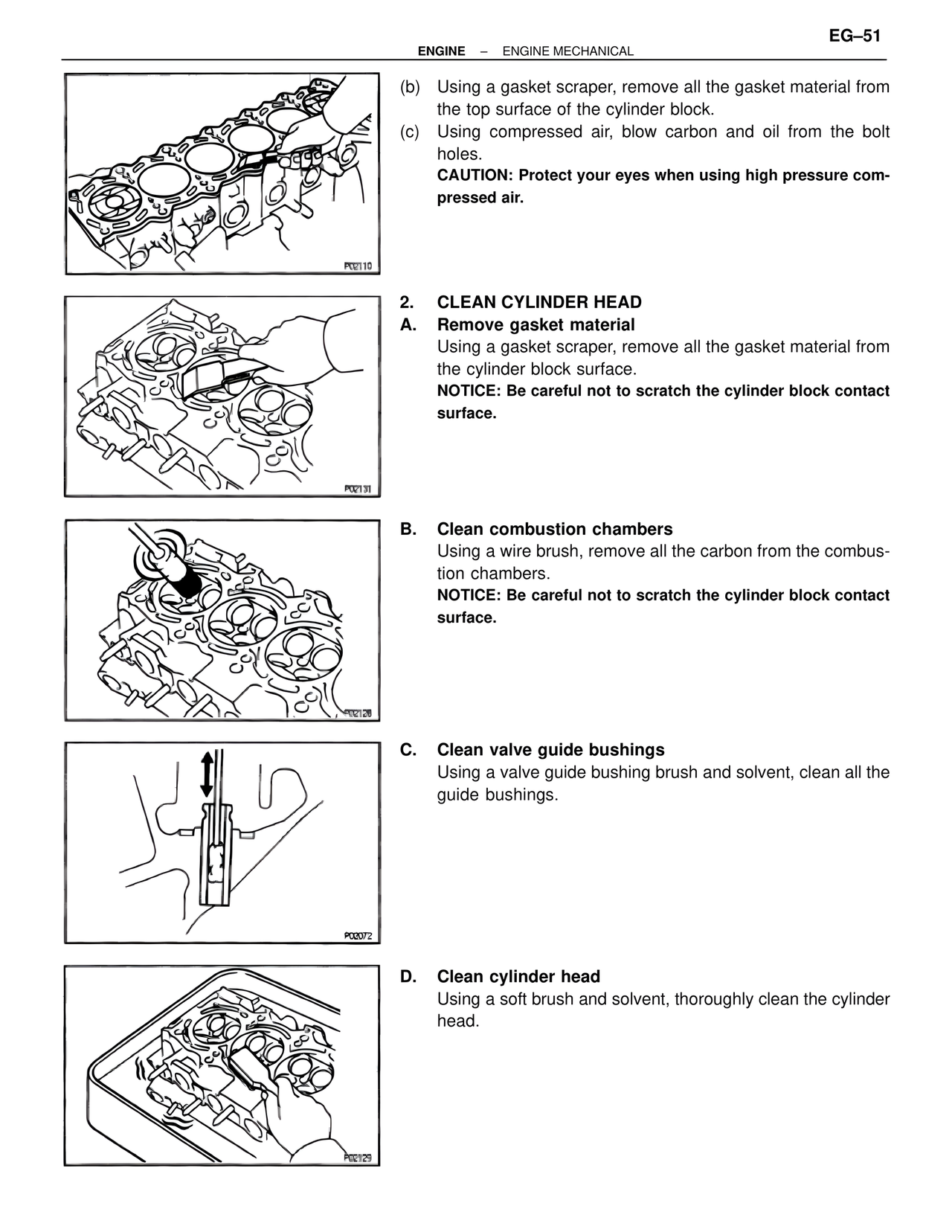

(b) Using a gasket scraper, remove all the gasket material from
the top surface of the cylinder block.
(c) Using compressed air, blow carbon and oil from the bolt
holes.
CAUTION: Protect your eyes when using high pressure com-
pressed air.
2. CLEAN CYLINDER HEAD
A. Remove gasket material
Using a gasket scraper, remove all the gasket material from
the cylinder block surface.
NOTICE: Be careful not to scratch the cylinder block contact
surface.
B. Clean combustion chambers
Using a wire brush, remove all the carbon from the combus-
tion chambers.
NOTICE: Be careful not to scratch the cylinder block contact
surface.
C. Clean valve guide bushings
Using a valve guide bushing brush and solvent, clean all the
guide bushings.
D. Clean cylinder head
Using a soft brush and solvent, thoroughly clean the cylinder
head.
