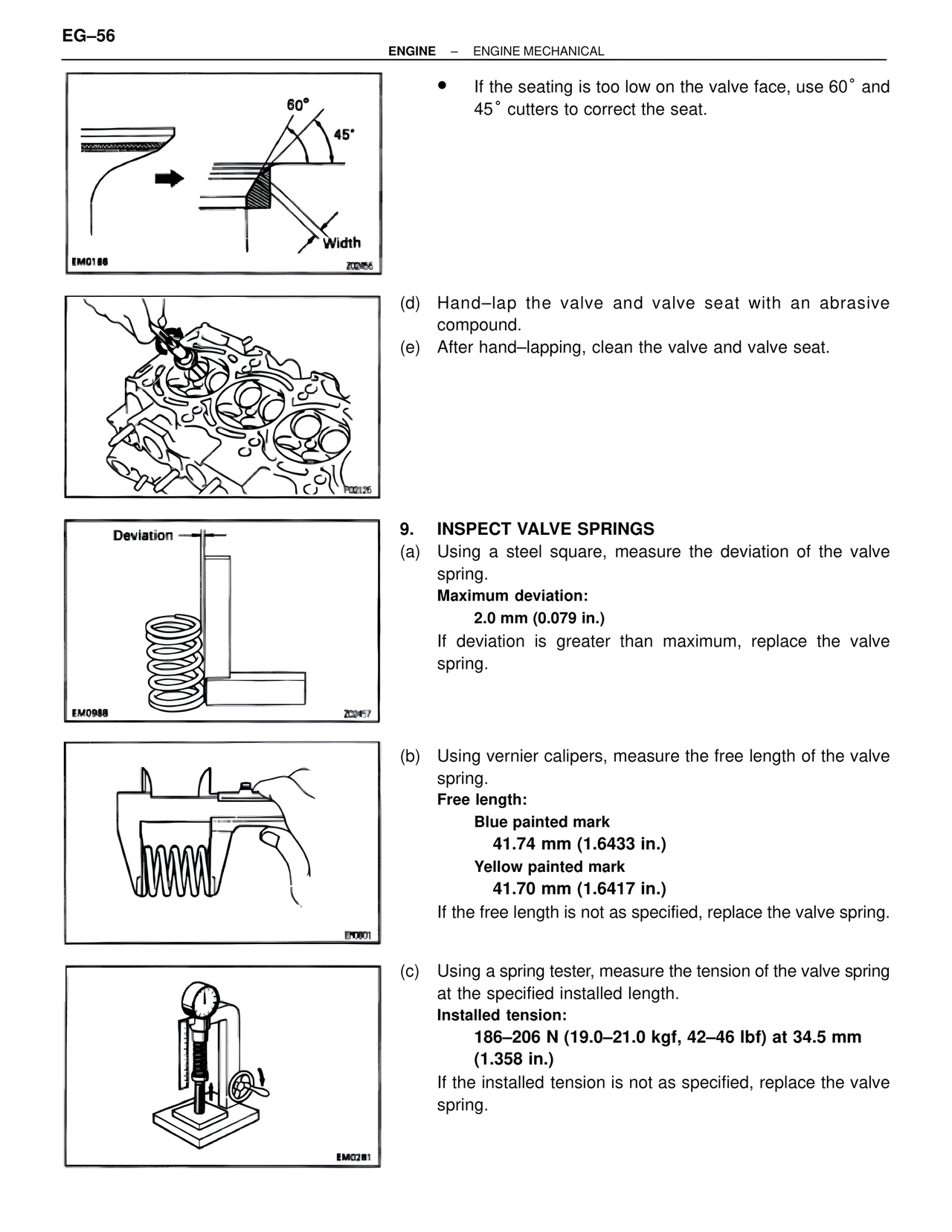

EG–56
ENGINE – ENGINE MECHANICAL
EM0188
202456
60°
45°
Width
• If the seating is too low on the valve face, use 60° and 45° cutters to correct the seat.
P02126
(d) Hand–lap the valve and valve seat with an abrasive compound.
(e) After hand–lapping, clean the valve and valve seat.
Deviation
EM0988
202457
9. INSPECT VALVE SPRINGS
(a) Using a steel square, measure the deviation of the valve spring.
Maximum deviation:
2.0 mm (0.079 in.)
If deviation is greater than maximum, replace the valve spring.
EM0801
(b) Using vernier calipers, measure the free length of the valve spring.
Free length:
Blue painted mark
41.74 mm (1.6433 in.)
Yellow painted mark
41.70 mm (1.6417 in.)
If the free length is not as specified, replace the valve spring.
EM0281
(c) Using a spring tester, measure the tension of the valve spring at the specified installed length.
Installed tension:
186–206 N (19.0–21.0 kgf, 42–46 lbf) at 34.5 mm (1.358 in.)
If the installed tension is not as specified, replace the valve spring.
