2JZ-GE
2JZ-GTE
P12543

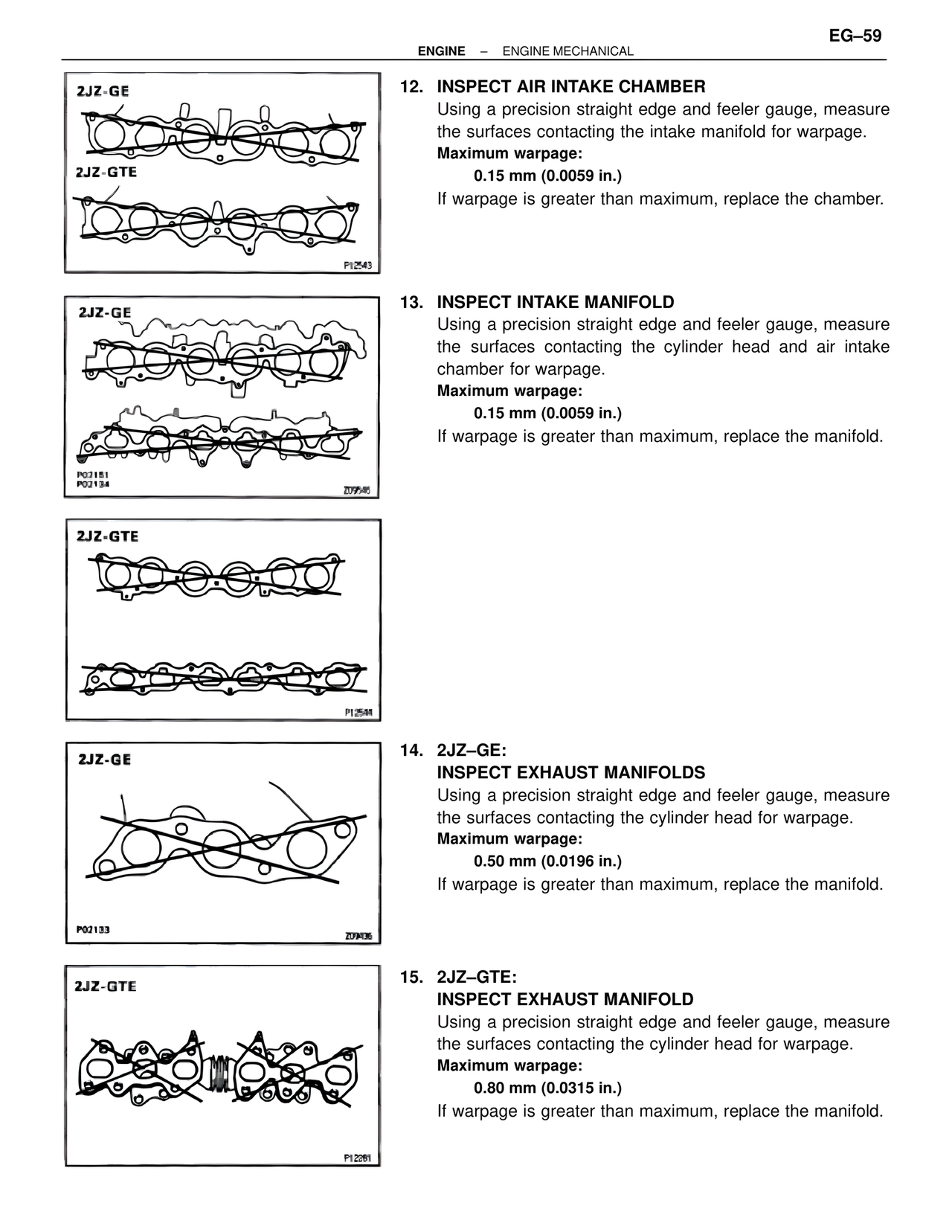

12. INSPECT AIR INTAKE CHAMBER
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the intake manifold for warpage.
Maximum warpage:
0.15 mm (0.0059 in.)
If warpage is greater than maximum, replace the chamber.
2JZ-GE
P02151
P02134
Z09546
13. INSPECT INTAKE MANIFOLD
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head and air intake
chamber for warpage.
Maximum warpage:
0.15 mm (0.0059 in.)
If warpage is greater than maximum, replace the manifold.
2JZ-GTE
P12544
2JZ-GE
P02133
Z09436
14. 2JZ–GE:
INSPECT EXHAUST MANIFOLDS
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head for warpage.
Maximum warpage:
0.50 mm (0.0196 in.)
If warpage is greater than maximum, replace the manifold.
2JZ-GTE
P12261
15. 2JZ–GTE:
INSPECT EXHAUST MANIFOLD
Using a precision straight edge and feeler gauge, measure
the surfaces contacting the cylinder head for warpage.
Maximum warpage:
0.80 mm (0.0315 in.)
If warpage is greater than maximum, replace the manifold.
