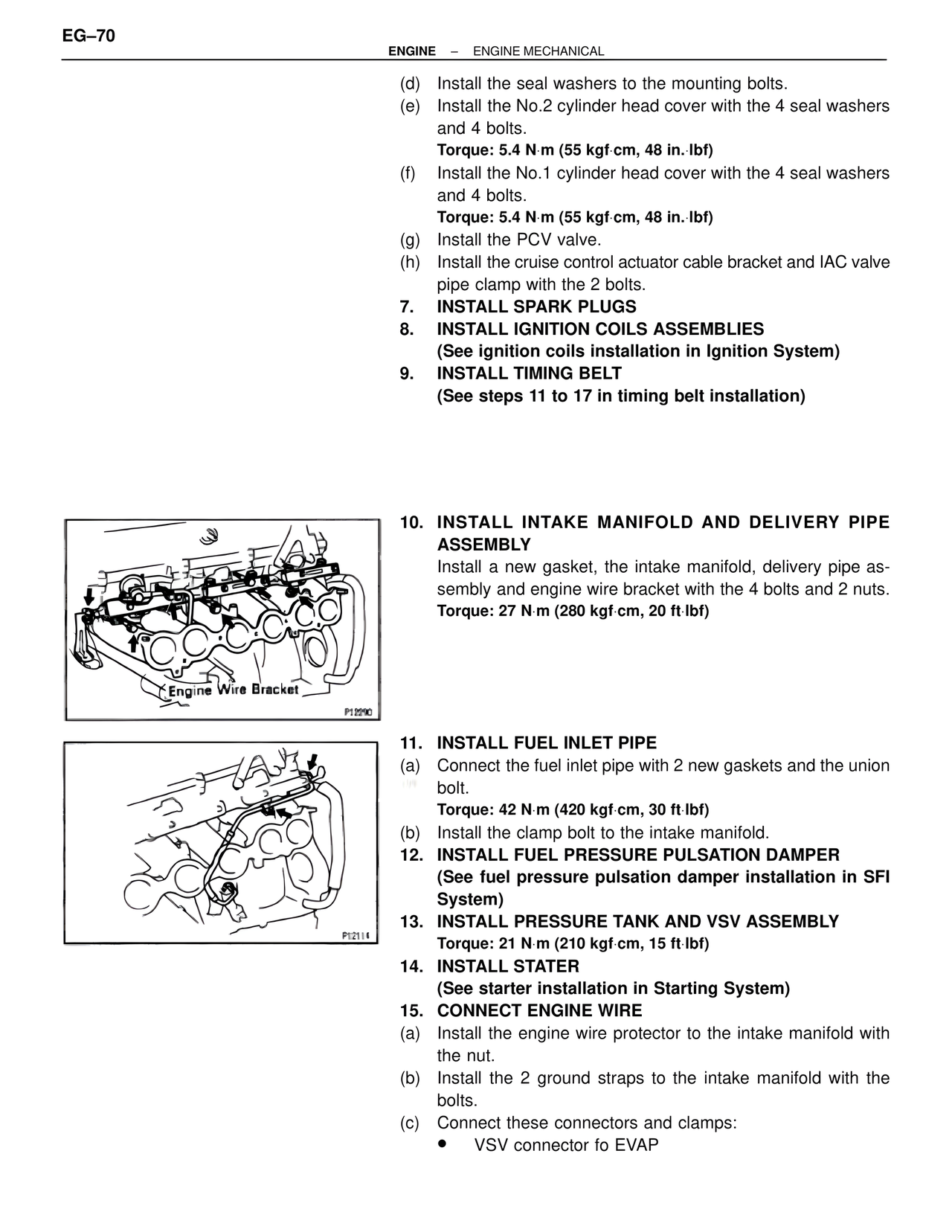

EG–70
ENGINE – ENGINE MECHANICAL
(d) Install the seal washers to the mounting bolts.
(e) Install the No.2 cylinder head cover with the 4 seal washers and 4 bolts.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
(f) Install the No.1 cylinder head cover with the 4 seal washers and 4 bolts.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
(g) Install the PCV valve.
(h) Install the cruise control actuator cable bracket and IAC valve pipe clamp with the 2 bolts.
7. INSTALL SPARK PLUGS
8. INSTALL IGNITION COILS ASSEMBLIES
(See ignition coils installation in Ignition System)
9. INSTALL TIMING BELT
(See steps 11 to 17 in timing belt installation)
Engine Wire Bracket
P12290
10. INSTALL INTAKE MANIFOLD AND DELIVERY PIPE ASSEMBLY
Install a new gasket, the intake manifold, delivery pipe assembly and engine wire bracket with the 4 bolts and 2 nuts.
Torque: 27 N·m (280 kgf·cm, 20 ft·lbf)
P12114
11. INSTALL FUEL INLET PIPE
(a) Connect the fuel inlet pipe with 2 new gaskets and the union bolt.
Torque: 42 N·m (420 kgf·cm, 30 ft·lbf)
(b) Install the clamp bolt to the intake manifold.
12. INSTALL FUEL PRESSURE PULSATION DAMPER
(See fuel pressure pulsation damper installation in SFI System)
13. INSTALL PRESSURE TANK AND VSV ASSEMBLY
Torque: 21 N·m (210 kgf·cm, 15 ft·lbf)
14. INSTALL STATER
(See starter installation in Starting System)
15. CONNECT ENGINE WIRE
(a) Install the engine wire protector to the intake manifold with the nut.
(b) Install the 2 ground straps to the intake manifold with the bolts.
(c) Connect these connectors and clamps:
• VSV connector fo EVAP
