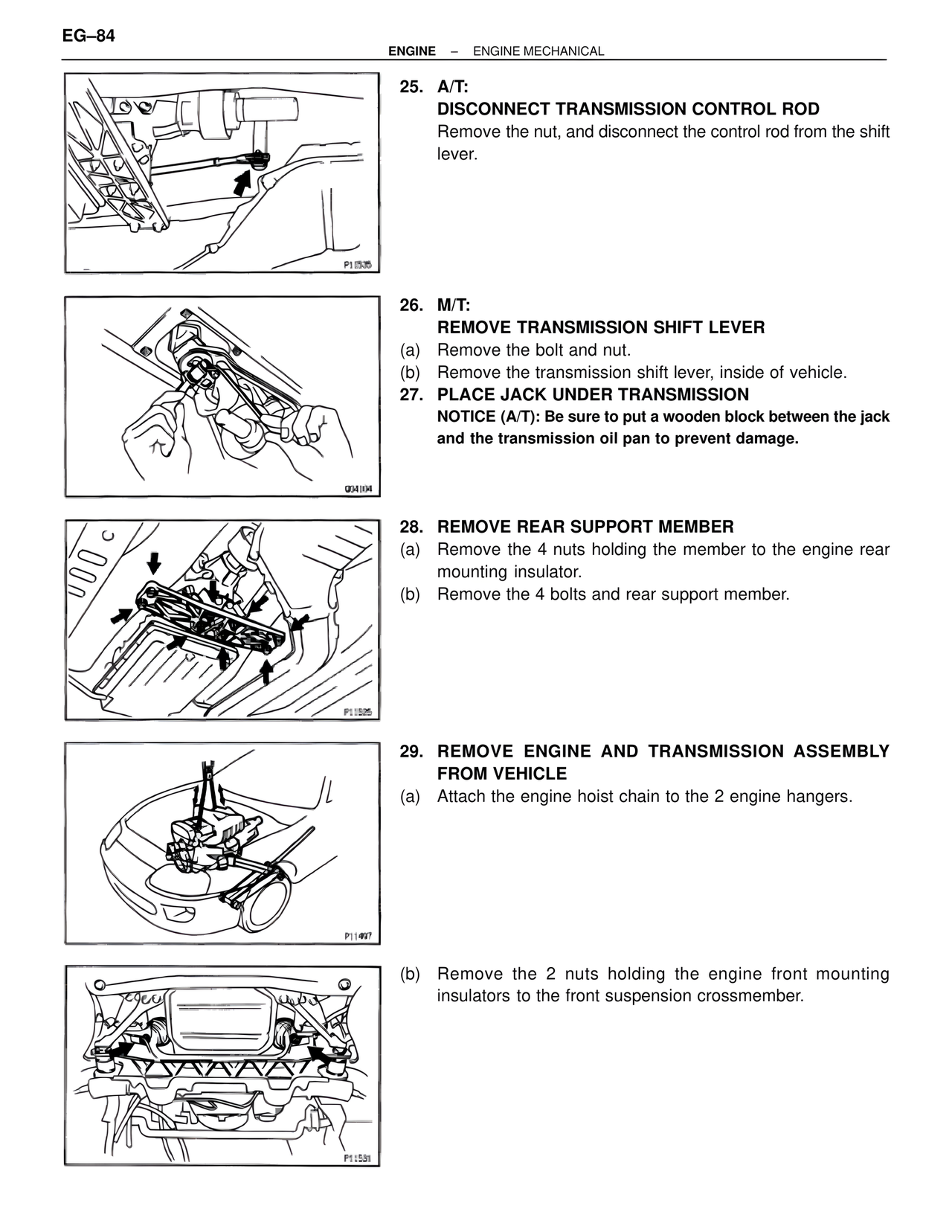

EG–84 ENGINE – ENGINE MECHANICAL 25. A/T: DISCONNECT TRANSMISSION CONTROL ROD Remove the nut, and disconnect the control rod from the shift lever. P11535 26. M/T: REMOVE TRANSMISSION SHIFT LEVER (a) Remove the bolt and nut. (b) Remove the transmission shift lever, inside of vehicle. 27. PLACE JACK UNDER TRANSMISSION NOTICE (A/T): Be sure to put a wooden block between the jack and the transmission oil pan to prevent damage. Q04104 28. REMOVE REAR SUPPORT MEMBER (a) Remove the 4 nuts holding the member to the engine rear mounting insulator. (b) Remove the 4 bolts and rear support member. P11525 29. REMOVE ENGINE AND TRANSMISSION ASSEMBLY FROM VEHICLE (a) Attach the engine hoist chain to the 2 engine hangers. P11497 (b) Remove the 2 nuts holding the engine front mounting insulators to the front suspension crossmember. P11531
