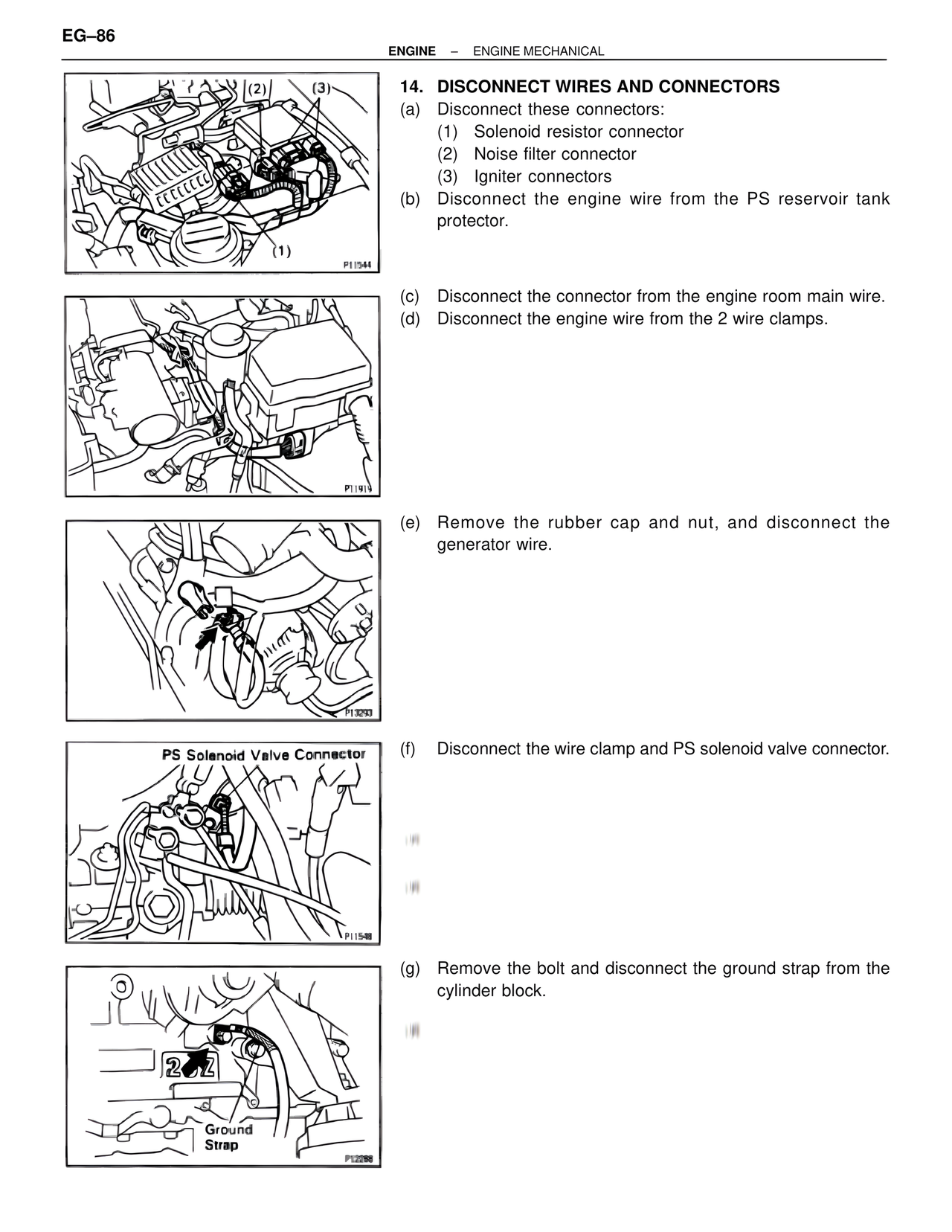

EG–86 ENGINE – ENGINE MECHANICAL 14. DISCONNECT WIRES AND CONNECTORS (a) Disconnect these connectors: (1) Solenoid resistor connector (2) Noise filter connector (3) Igniter connectors (b) Disconnect the engine wire from the PS reservoir tank protector. P11544 (c) Disconnect the connector from the engine room main wire. (d) Disconnect the engine wire from the 2 wire clamps. P11919 (e) Remove the rubber cap and nut, and disconnect the generator wire. P13030 PS Solenoid Valve Connector (f) Disconnect the wire clamp and PS solenoid valve connector. P11548 Ground Strap (g) Remove the bolt and disconnect the ground strap from the cylinder block. P12288
