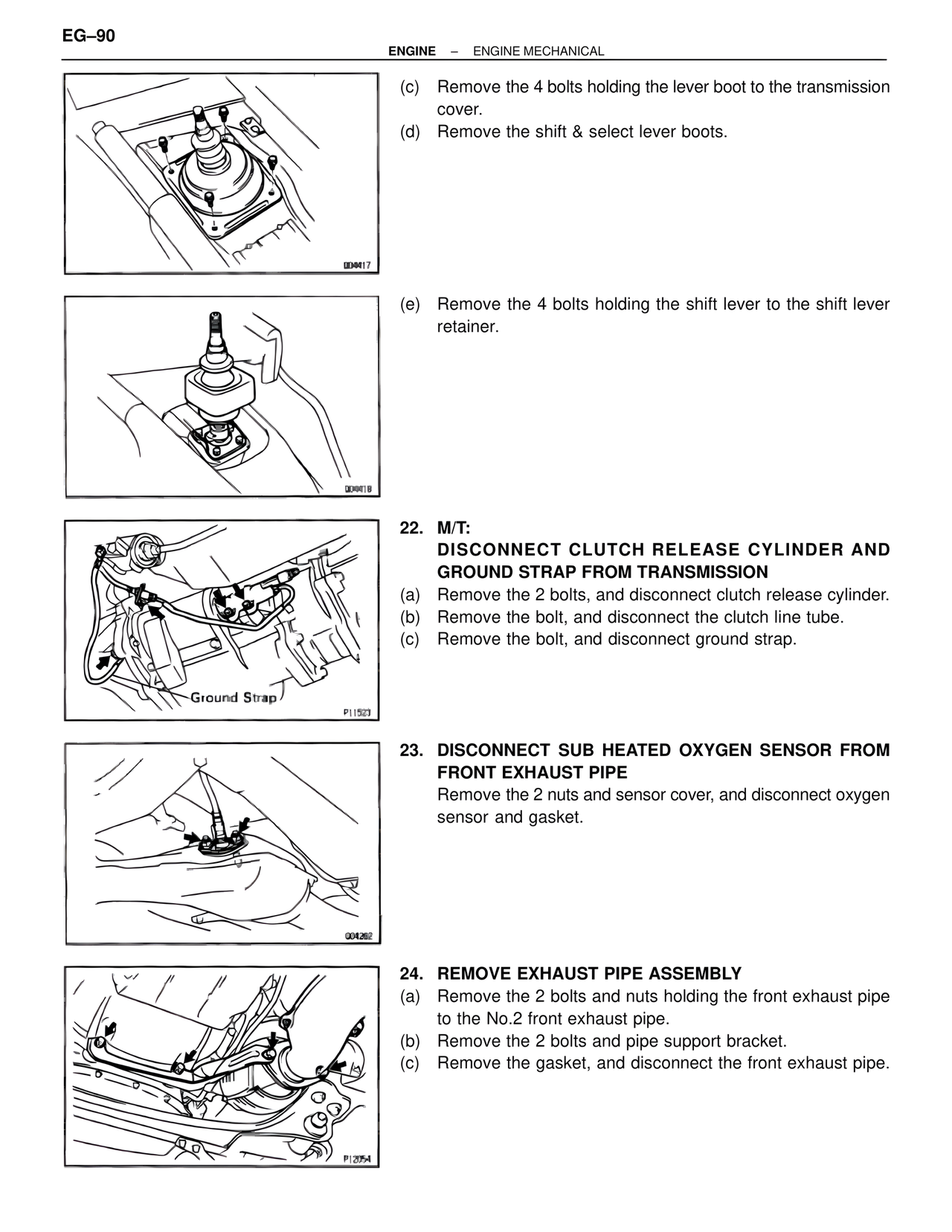

EG–90 ENGINE – ENGINE MECHANICAL (c) Remove the 4 bolts holding the lever boot to the transmission cover. (d) Remove the shift & select lever boots. 004417 (e) Remove the 4 bolts holding the shift lever to the shift lever retainer. 004418 22. M/T: DISCONNECT CLUTCH RELEASE CYLINDER AND GROUND STRAP FROM TRANSMISSION (a) Remove the 2 bolts, and disconnect clutch release cylinder. (b) Remove the bolt, and disconnect the clutch line tube. (c) Remove the bolt, and disconnect ground strap. Ground Strap P11523 23. DISCONNECT SUB HEATED OXYGEN SENSOR FROM FRONT EXHAUST PIPE Remove the 2 nuts and sensor cover, and disconnect oxygen sensor and gasket. 004262 24. REMOVE EXHAUST PIPE ASSEMBLY (a) Remove the 2 bolts and nuts holding the front exhaust pipe to the No.2 front exhaust pipe. (b) Remove the 2 bolts and pipe support bracket. (c) Remove the gasket, and disconnect the front exhaust pipe. P12054
