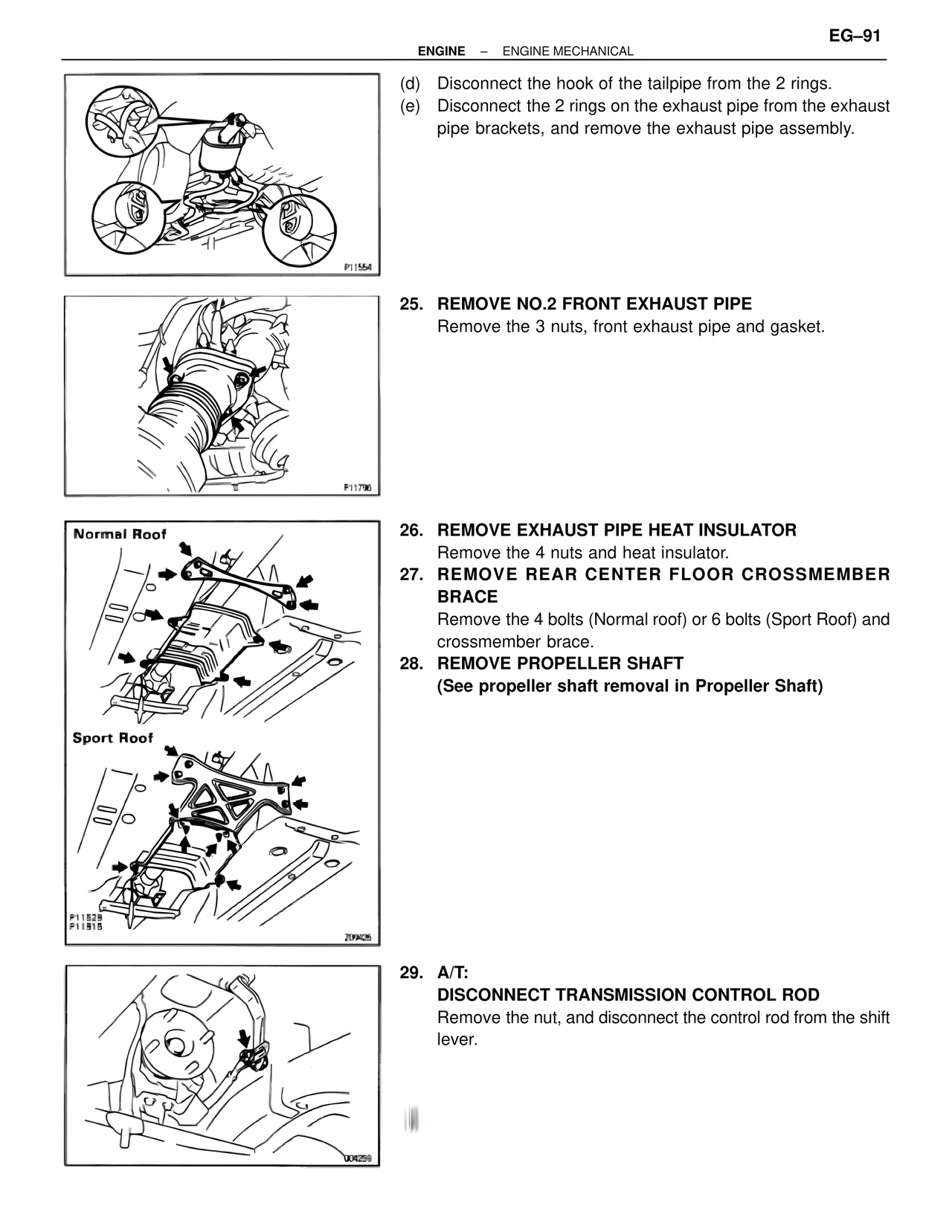

(d) Disconnect the hook of the tailpipe from the 2 rings.
(e) Disconnect the 2 rings on the exhaust pipe from the exhaust
pipe brackets, and remove the exhaust pipe assembly.
P11554
25. REMOVE NO.2 FRONT EXHAUST PIPE
Remove the 3 nuts, front exhaust pipe and gasket.
P11796
Normal Roof
26. REMOVE EXHAUST PIPE HEAT INSULATOR
Remove the 4 nuts and heat insulator.
27. REMOVE REAR CENTER FLOOR CROSSMEMBER
BRACE
Remove the 4 bolts (Normal roof) or 6 bolts (Sport Roof) and
crossmember brace.
28. REMOVE PROPELLER SHAFT
(See propeller shaft removal in Propeller Shaft)
Sport Roof
P11528
P11915
209426
29. A/T:
DISCONNECT TRANSMISSION CONTROL ROD
Remove the nut, and disconnect the control rod from the shift
lever.
004259
