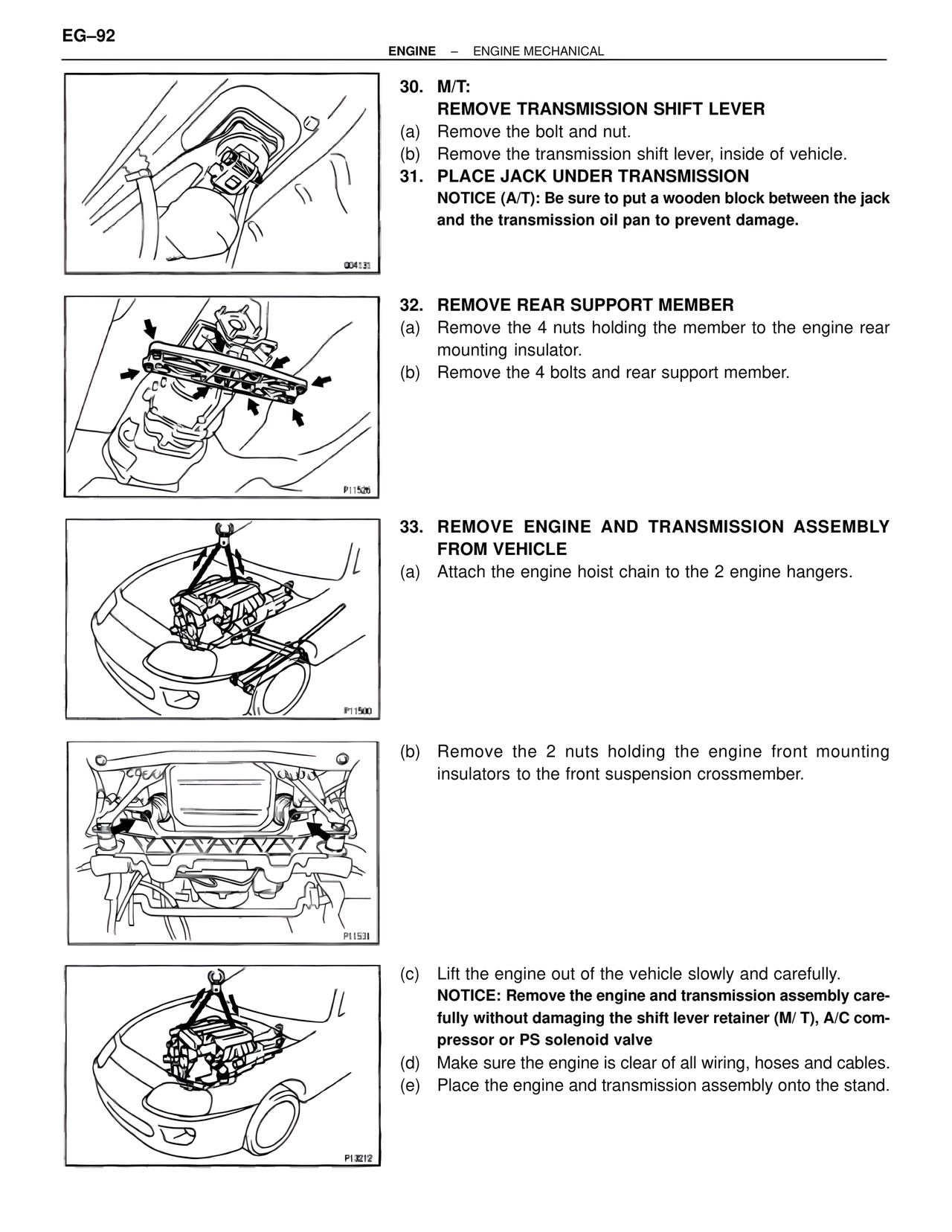

EG–92 ENGINE – ENGINE MECHANICAL 30. M/T: REMOVE TRANSMISSION SHIFT LEVER (a) Remove the bolt and nut. (b) Remove the transmission shift lever, inside of vehicle. 31. PLACE JACK UNDER TRANSMISSION NOTICE (A/T): Be sure to put a wooden block between the jack and the transmission oil pan to prevent damage. 32. REMOVE REAR SUPPORT MEMBER (a) Remove the 4 nuts holding the member to the engine rear mounting insulator. (b) Remove the 4 bolts and rear support member. 33. REMOVE ENGINE AND TRANSMISSION ASSEMBLY FROM VEHICLE (a) Attach the engine hoist chain to the 2 engine hangers. (b) Remove the 2 nuts holding the engine front mounting insulators to the front suspension crossmember. (c) Lift the engine out of the vehicle slowly and carefully. NOTICE: Remove the engine and transmission assembly care- fully without damaging the shift lever retainer (M/T), A/C com- pressor or PS solenoid valve (d) Make sure the engine is clear of all wiring, hoses and cables. (e) Place the engine and transmission assembly onto the stand. Q04135 P11526 P11500 P11531 P13212
