LU-14
LUBRICATION - OIL PUMP

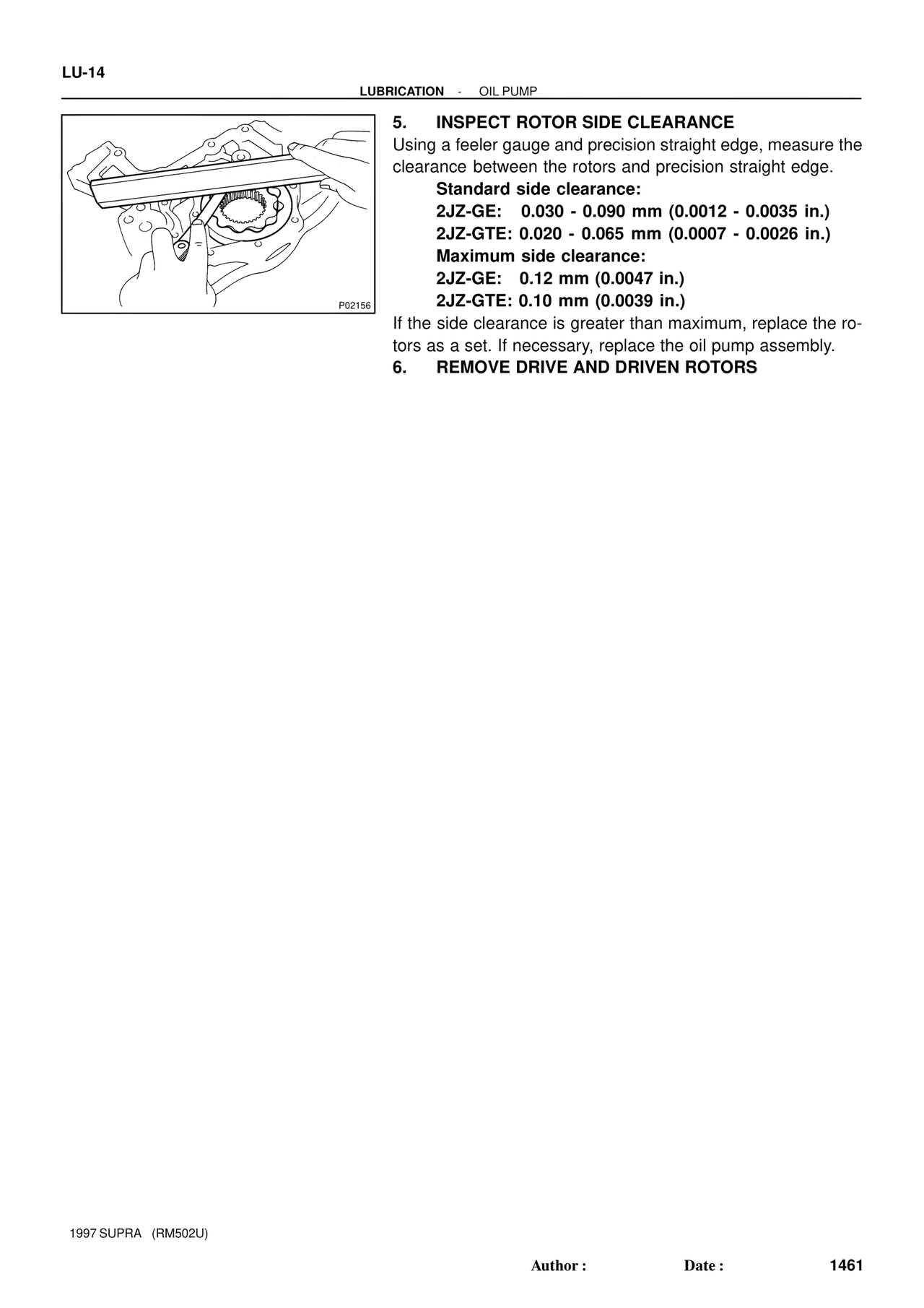

5. INSPECT ROTOR SIDE CLEARANCE
Using a feeler gauge and precision straight edge, measure the
clearance between the rotors and precision straight edge.
Standard side clearance:
2JZ-GE: 0.030 - 0.090 mm (0.0012 - 0.0035 in.)
2JZ-GTE: 0.020 - 0.065 mm (0.0007 - 0.0026 in.)
Maximum side clearance:
2JZ-GE: 0.12 mm (0.0047 in.)
2JZ-GTE: 0.10 mm (0.0039 in.)
If the side clearance is greater than maximum, replace the ro-
tors as a set. If necessary, replace the oil pump assembly.
6. REMOVE DRIVE AND DRIVEN ROTORS
P02156
1997 SUPRA (RM502U)
Author : Date : 1461
