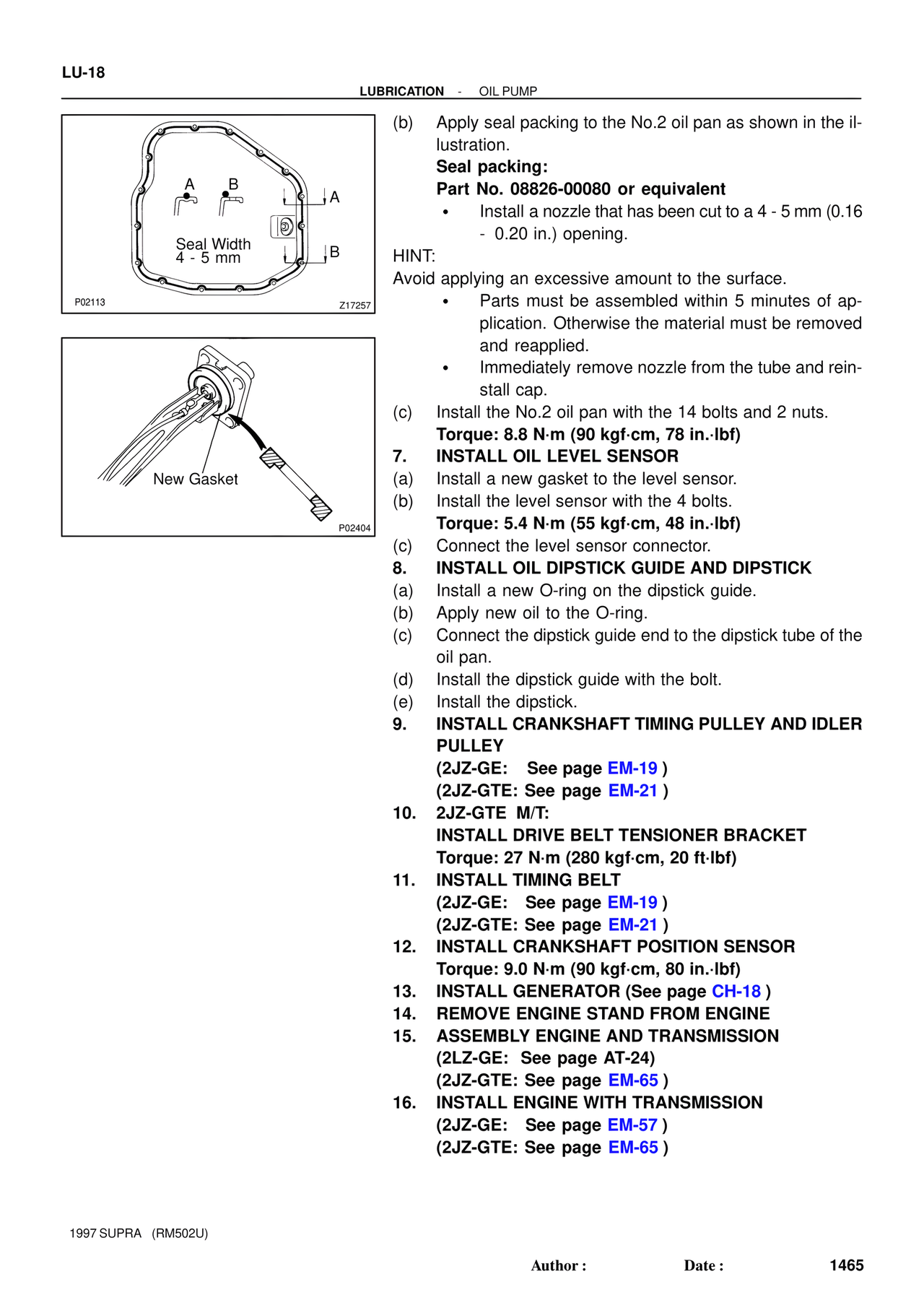

LU-18 LUBRICATION - OIL PUMP P02113 Z17257 Seal Width 4 - 5 mm A B A B New Gasket P02404 (b) Apply seal packing to the No.2 oil pan as shown in the illustration. Seal packing: Part No. 08826-00080 or equivalent • Install a nozzle that has been cut to a 4 - 5 mm (0.16 - 0.20 in.) opening. HINT: Avoid applying an excessive amount to the surface. • Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied. • Immediately remove nozzle from the tube and reinstall cap. (c) Install the No.2 oil pan with the 14 bolts and 2 nuts. Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) 7. INSTALL OIL LEVEL SENSOR (a) Install a new gasket to the level sensor. (b) Install the level sensor with the 4 bolts. Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf) (c) Connect the level sensor connector. 8. INSTALL OIL DIPSTICK GUIDE AND DIPSTICK (a) Install a new O-ring on the dipstick guide. (b) Apply new oil to the O-ring. (c) Connect the dipstick guide end to the dipstick tube of the oil pan. (d) Install the dipstick guide with the bolt. (e) Install the dipstick. 9. INSTALL CRANKSHAFT TIMING PULLEY AND IDLER PULLEY (2JZ-GE: See page EM-19 ) (2JZ-GTE: See page EM-21 ) 10. 2JZ-GTE M/T: INSTALL DRIVE BELT TENSIONER BRACKET Torque: 27 N·m (280 kgf·cm, 20 ft·lbf) 11. INSTALL TIMING BELT (2JZ-GE: See page EM-19 ) (2JZ-GTE: See page EM-21 ) 12. INSTALL CRANKSHAFT POSITION SENSOR Torque: 9.0 N·m (90 kgf·cm, 80 in.·lbf) 13. INSTALL GENERATOR (See page CH-18 ) 14. REMOVE ENGINE STAND FROM ENGINE 15. ASSEMBLY ENGINE AND TRANSMISSION (2LZ-GE: See page AT-24) (2JZ-GTE: See page EM-65 ) 16. INSTALL ENGINE WITH TRANSMISSION (2JZ-GE: See page EM-57 ) (2JZ-GTE: See page EM-65 ) 1997 SUPRA (RM502U) Author : Date : 1465
