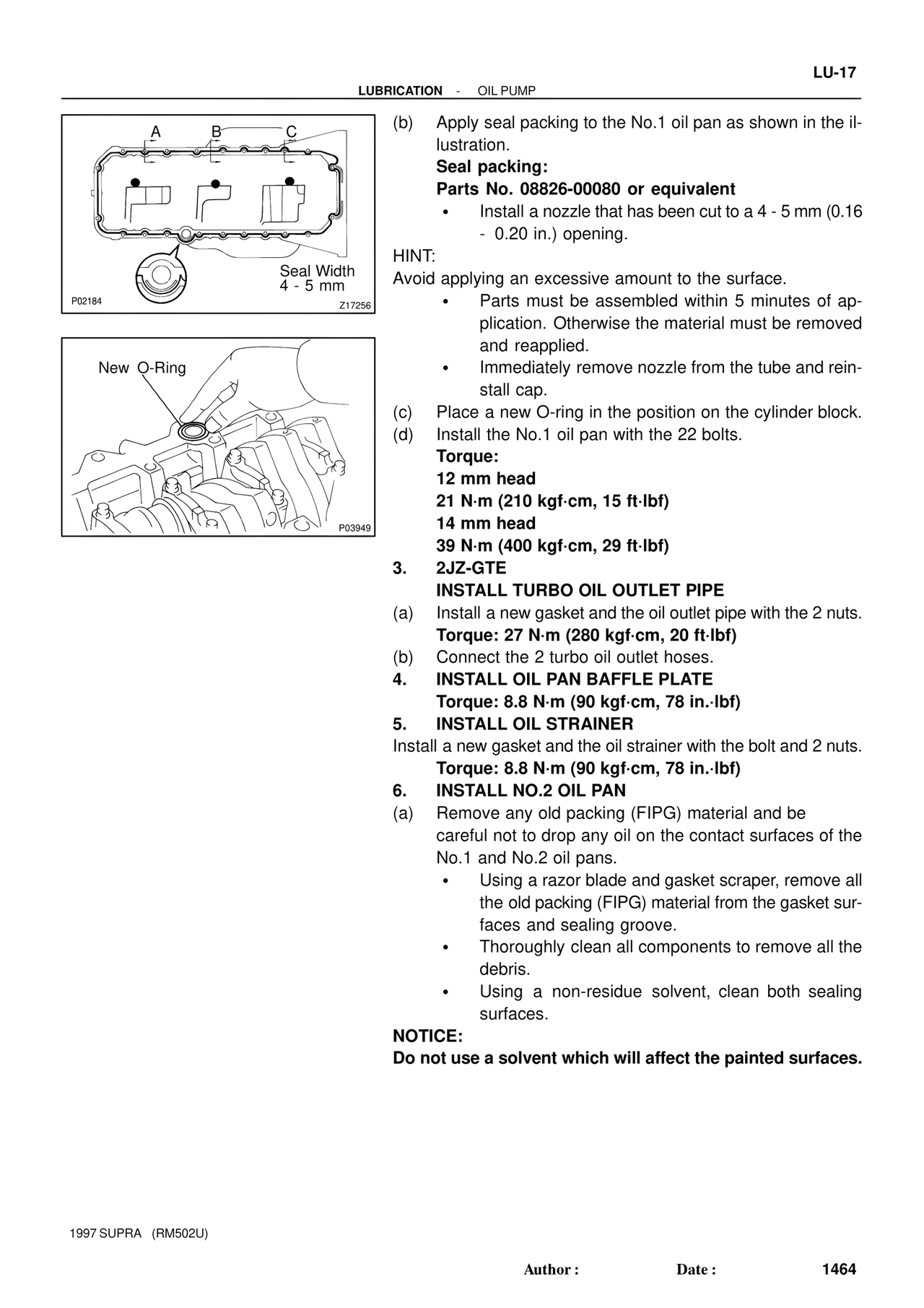

LU-17 LUBRICATION - OIL PUMP A B C Seal Width 4 - 5 mm P02184 Z17256 New O-Ring P03949 (b) Apply seal packing to the No.1 oil pan as shown in the illustration. Seal packing: Parts No. 08826-00080 or equivalent • Install a nozzle that has been cut to a 4 - 5 mm (0.16 - 0.20 in.) opening. HINT: Avoid applying an excessive amount to the surface. • Parts must be assembled within 5 minutes of application. Otherwise the material must be removed and reapplied. • Immediately remove nozzle from the tube and reinstall cap. (c) Place a new O-ring in the position on the cylinder block. (d) Install the No.1 oil pan with the 22 bolts. Torque: 12 mm head 21 N·m (210 kgf·cm, 15 ft·lbf) 14 mm head 39 N·m (400 kgf·cm, 29 ft·lbf) 3. 2JZ-GTE INSTALL TURBO OIL OUTLET PIPE (a) Install a new gasket and the oil outlet pipe with the 2 nuts. Torque: 27 N·m (280 kgf·cm, 20 ft·lbf) (b) Connect the 2 turbo oil outlet hoses. 4. INSTALL OIL PAN BAFFLE PLATE Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) 5. INSTALL OIL STRAINER Install a new gasket and the oil strainer with the bolt and 2 nuts. Torque: 8.8 N·m (90 kgf·cm, 78 in.·lbf) 6. INSTALL NO.2 OIL PAN (a) Remove any old packing (FIPG) material and be careful not to drop any oil on the contact surfaces of the No.1 and No.2 oil pans. • Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces and sealing groove. • Thoroughly clean all components to remove all the debris. • Using a non-residue solvent, clean both sealing surfaces. NOTICE: Do not use a solvent which will affect the painted surfaces. 1997 SUPRA (RM502U) Author : Date : 1464
