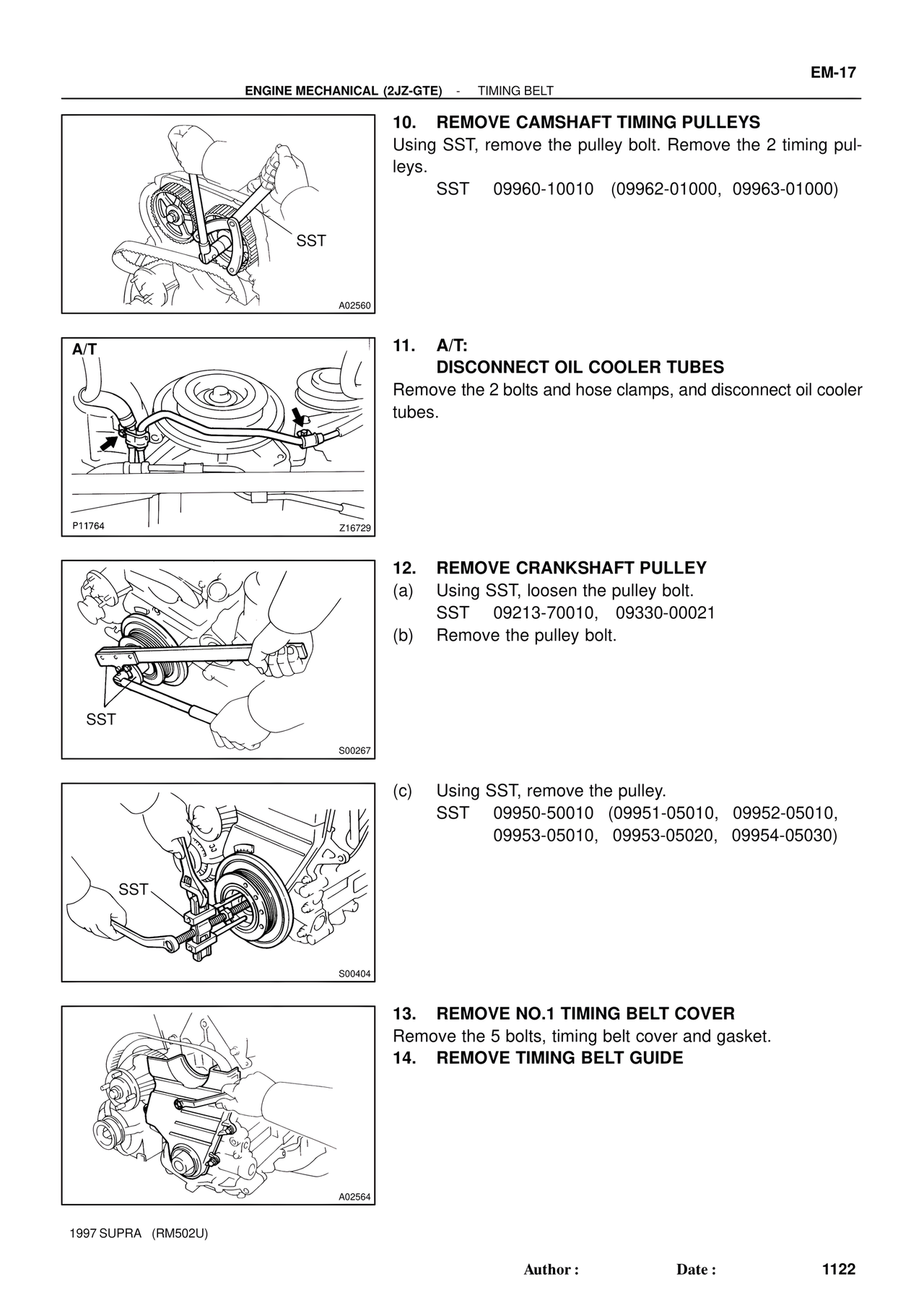

EM-17
ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
SST
A02560
10. REMOVE CAMSHAFT TIMING PULLEYS
Using SST, remove the pulley bolt. Remove the 2 timing pulleys.
SST 09960-10010 (09962-01000, 09963-01000)
A/T
P11764 Z16729
11. A/T:
DISCONNECT OIL COOLER TUBES
Remove the 2 bolts and hose clamps, and disconnect oil cooler tubes.
SST
S00267
12. REMOVE CRANKSHAFT PULLEY
(a) Using SST, loosen the pulley bolt.
SST 09213-70010, 09330-00021
(b) Remove the pulley bolt.
SST
S00404
(c) Using SST, remove the pulley.
SST 09950-50010 (09951-05010, 09952-05010,
09953-05010, 09953-05020, 09954-05030)
A02564
13. REMOVE NO.1 TIMING BELT COVER
Remove the 5 bolts, timing belt cover and gasket.
14. REMOVE TIMING BELT GUIDE
1997 SUPRA (RM502U)
Author : Date : 1122
