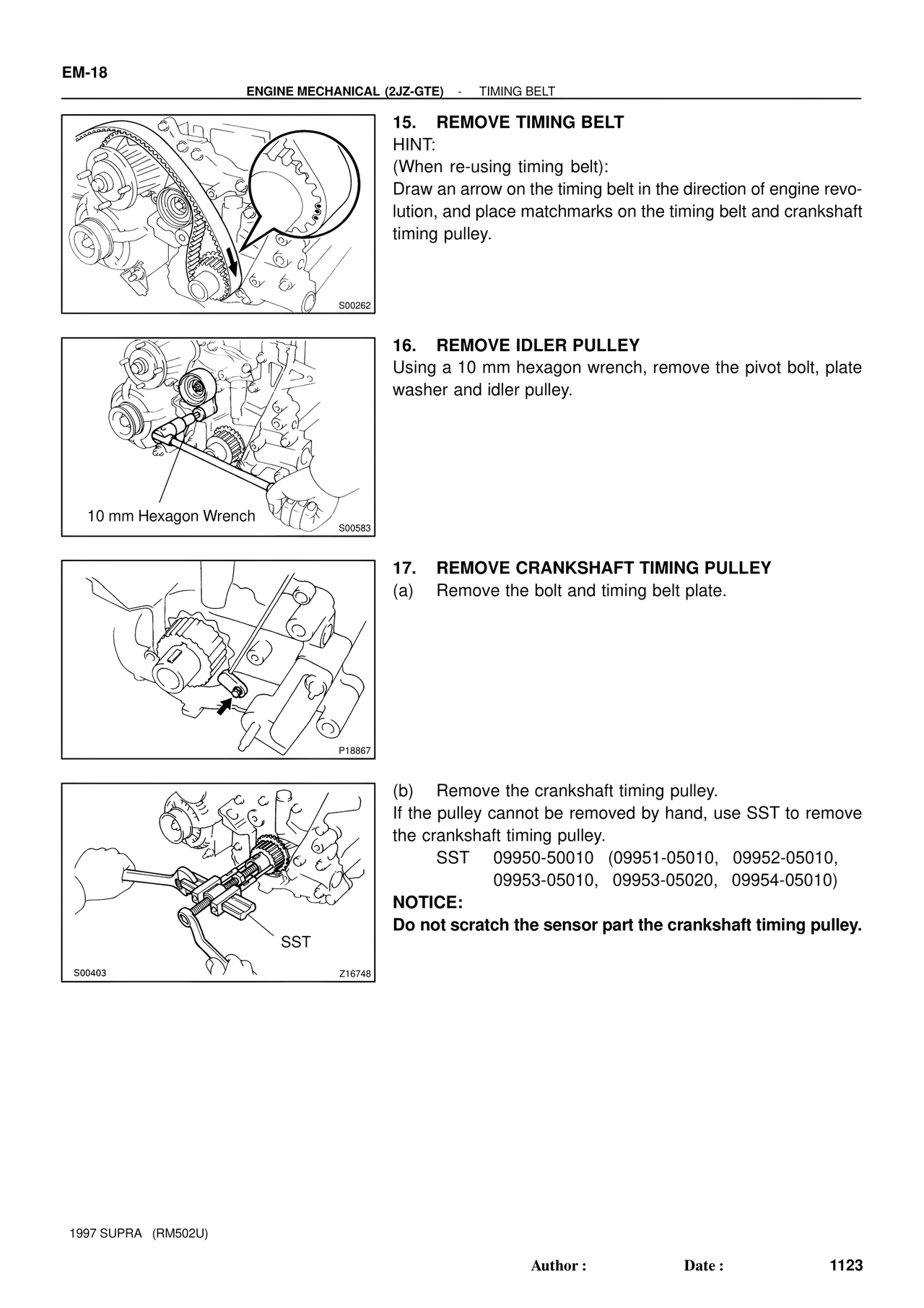

EM-18
ENGINE MECHANICAL (2JZ-GTE) - TIMING BELT
15. REMOVE TIMING BELT
HINT:
(When re-using timing belt):
Draw an arrow on the timing belt in the direction of engine revolution, and place matchmarks on the timing belt and crankshaft timing pulley.
S00262
16. REMOVE IDLER PULLEY
Using a 10 mm hexagon wrench, remove the pivot bolt, plate washer and idler pulley.
10 mm Hexagon Wrench
S00583
17. REMOVE CRANKSHAFT TIMING PULLEY
(a) Remove the bolt and timing belt plate.
P18867
(b) Remove the crankshaft timing pulley.
If the pulley cannot be removed by hand, use SST to remove the crankshaft timing pulley.
SST 09950-50010 (09951-05010, 09952-05010,
09953-05010, 09953-05020, 09954-05010)
NOTICE:
Do not scratch the sensor part the crankshaft timing pulley.
SST
S00403 Z16748
1997 SUPRA (RM502U)
Author : Date : 1123
